Brand - DODGE
Item Number - 072201 DODGE - SF4S-IP-106RE

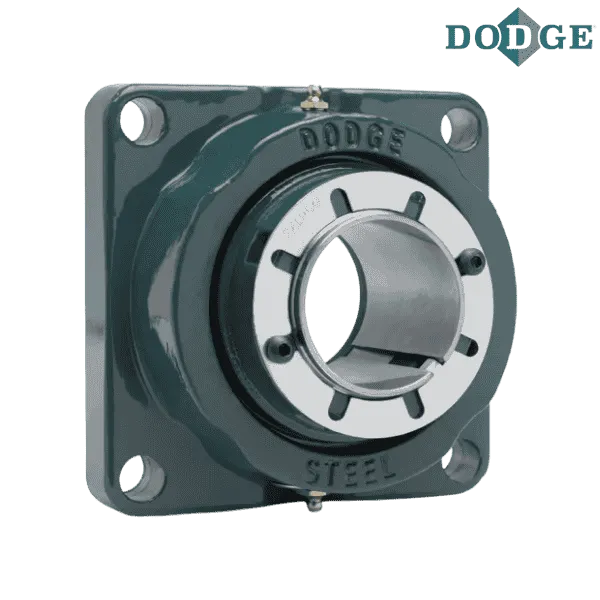

Category - Steel IMPERIAL-HD Flange - 4 Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.375
Description - SF4S-IP-106RE

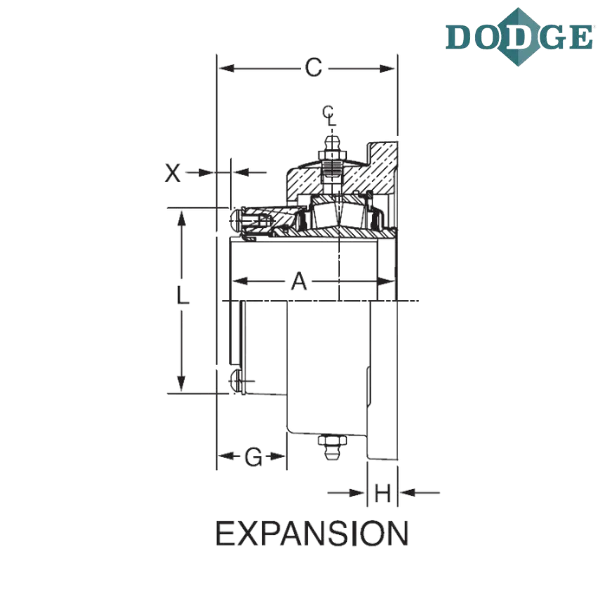

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 4.62
C (inch) - 2.87
Bolt to Bolt Distance (D) inch - 3.54
Bolt Diameter (F) inch - 0.5
G (inch) - 0.84
H (inch) - 0.88
J (inch) - 3.7
K (inch) - 5
L (inch) - 2.72
N (inch) - 2.25
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
