Brand - DODGE
Item Number - 747977 DODGE - P2B518-ISN-304 LR
Category - ISN Plummer Blocks With Trident Seals (Expansion Bearing)
Series - 518
Shaft Size (inch) - 3.25
Description - P2B518-ISN-304 LR
Part Number (insert) - 071992
Description (Insert) - ISN 518-22218 FR
Sleeve (Part Number) - 69308
Sleeve (Description) - ADPTR-IP-304

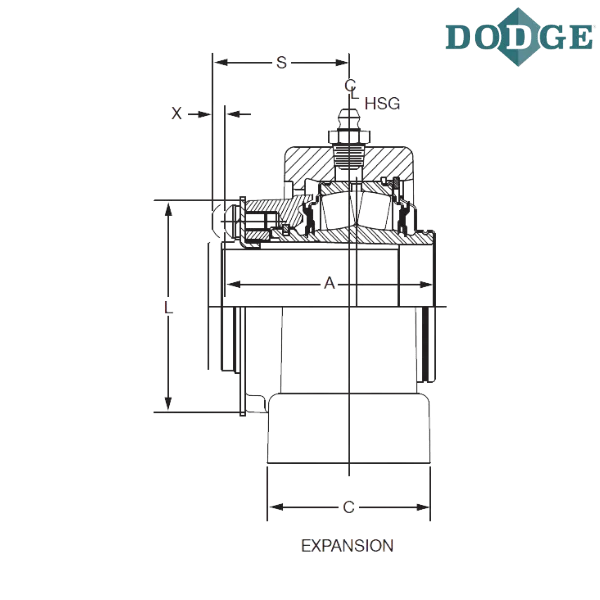

Length Through Bore (A) mm - 106
Overall Length (B) mm - 345.3
Width (C) mm - 110.3
Bolt to Bolt Minimum Distance (D min) mm - 270
Bolt to Bolt Maximum Distance (D max) mm - 293.7
F-Bolt Diameter - M20
G (mm) - 34
H (mm) - 35
Overall Height (J) mm - 196.7
L (mm) - 124.7
Base to Center Height (M) mm - 100
S (mm) - 68.3
Total Expansion (X) mm - 7

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
L - Expansion (Non-Locating)
R - Trident Rubbing Seal

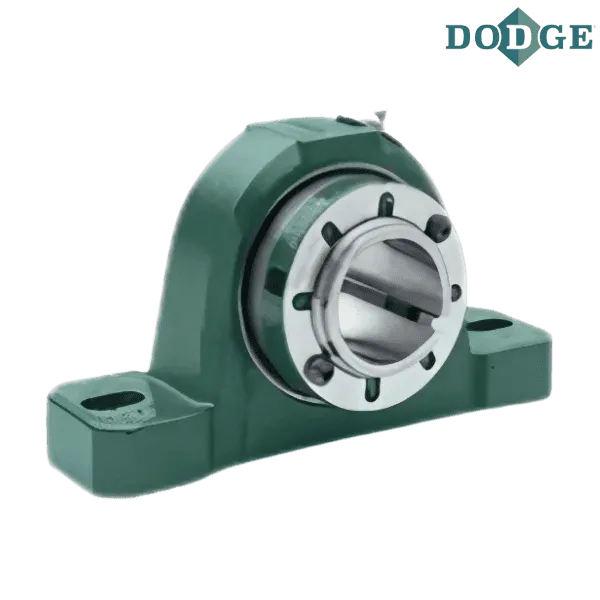

** Images are for representation purposes only
