Brand - DODGE
Item Number - 071666 DODGE - SP2B-IP-208R

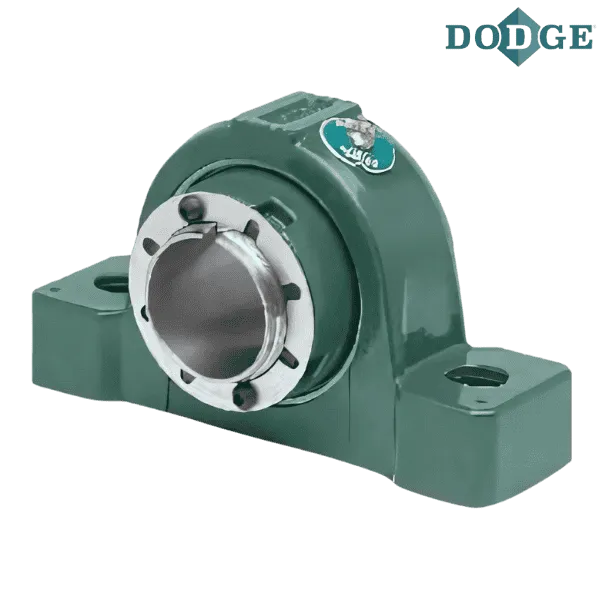

Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.5
Description - SP2B-IP-208R
Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 9.25
Width (C) inch - 2.9
Bolt to Bolt Minimum Distance (D min) inch - 6.81
Bolt to Bolt Maximum Distance (D max) inch - 7.43
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.07
H (inch) - 1.63
Overall Height (J) inch - 5.6
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
R (inch) - 1.17
S (inch) - 2.25
Y (inch) - 0.03
Z (inch) - 2.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
