Brand - DODGE
Item Number - 071227 DODGE - EP4B-IP-300RE
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 3
Part Name - EP4B-IP-300RE

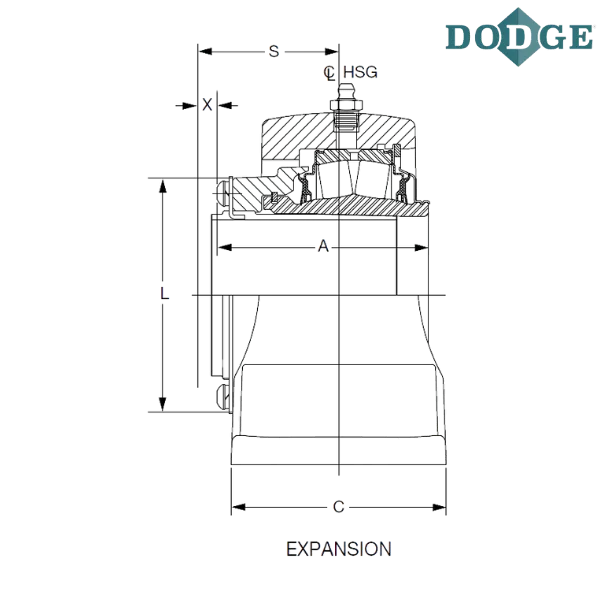

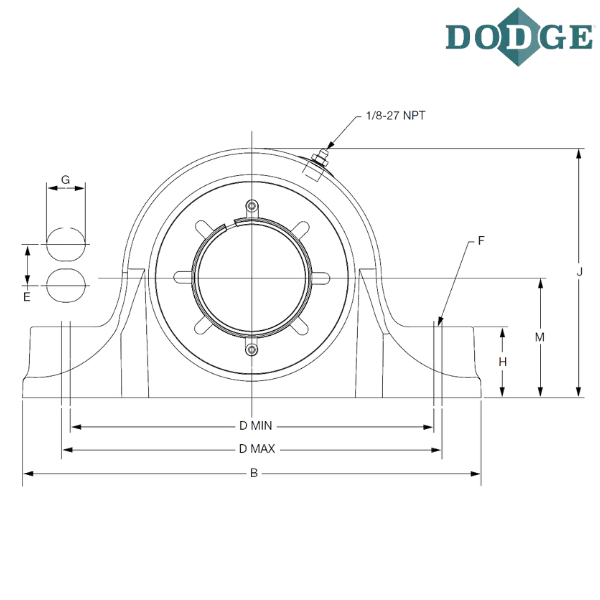

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 12
Width (C) inch - 4
Bolt to Bolt Minimum Distance (D min) inch - 9.18
Bolt to Bolt Maximum Distance (D max) inch - 9.82
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.88
Overall Height (J) inch - 6.33
L (inch) - 4.28
Base to Center Height (M) inch - 3.13
S (inch) - 2.15
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
