Brand - DODGE
Item Number - 071150 DODGE - EP2B-IP-203RE

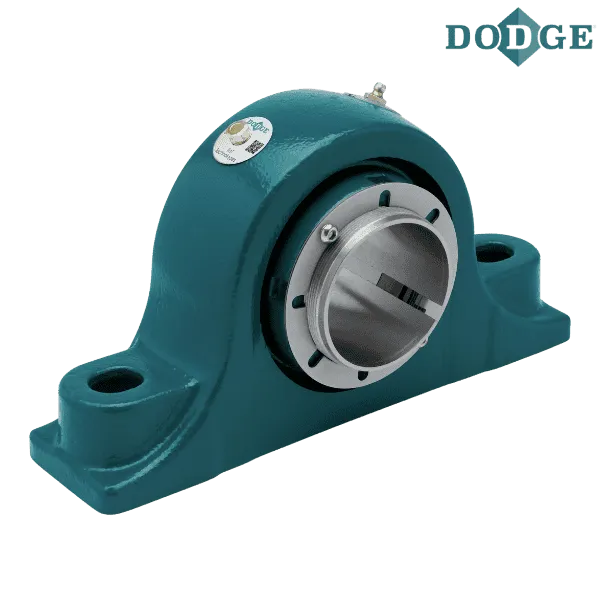

Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (inch) - 2.1875
Part Name - EP2B-IP-203RE

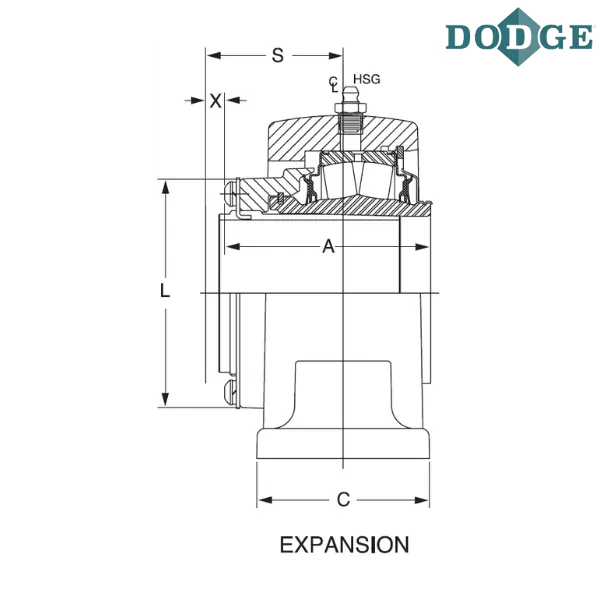

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 9.62
Width (C) inch - 2.56
Bolt to Bolt Minimum Distance (D min) inch - 7.63
Bolt to Bolt Maximum Distance (D max) inch - 7.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.5
Overall Height (J) inch - 5
L (inch) - 3.5
Base to Center Height (M) inch - 2.5
S (inch) - 1.97
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
