Brand - DODGE
Item Number - 071695 DODGE - SP2B-IP-211RE

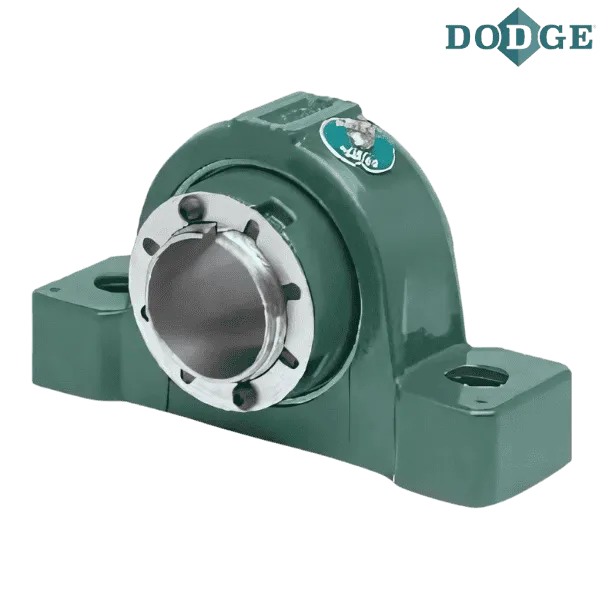

Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.6875
Description - SP2B-IP-211RE
Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 10.44
Width (C) inch - 2.91
Bolt to Bolt Minimum Distance (D min) inch - 7.7
Bolt to Bolt Maximum Distance (D max) inch - 8.4
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.23
H (inch) - 1.88
Overall Height (J) inch - 6.38
L (inch) - 4.28
Base to Center Height (M) inch - 3.25
S (inch) - 2.37
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
