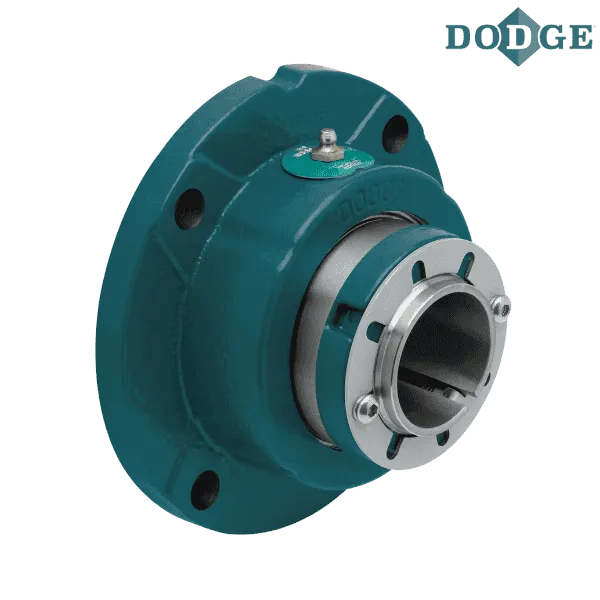

Brand - DODGE
Item Number - 069636 DODGE - F4R-IP-110RE
Category - IMPERIAL - IP Flange - Round with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.625
Part Name - F4R-IP-110RE
Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 6.38
Thickness (C) inch - 3.11
Bolt Center to Center Length (D) inch - 3.89
DD (inch) - 5.5
E (inch) - 1.89
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 4.25
L (inch) - 3
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* 3 Equally spaced bolt holes

** Images are representation purposes only
