Brand - DODGE
Item Number - 071659 DODGE - SP2B-IP-114R

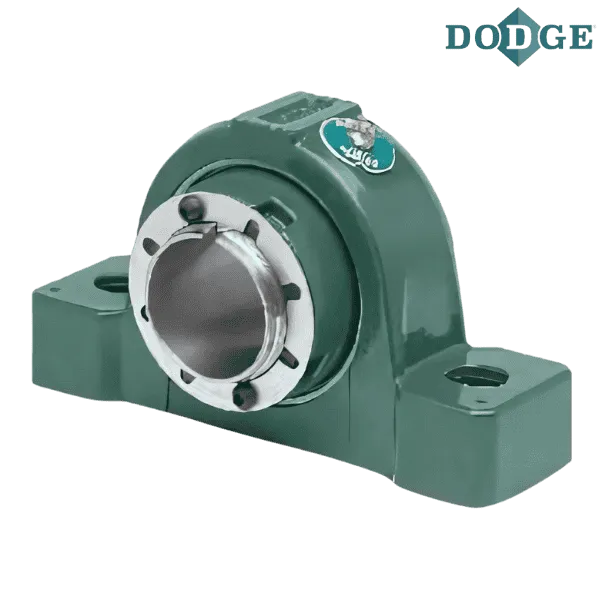

Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.875
Description - SP2B-IP-114R
Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 8.38
Width (C) inch - 2.44
Bolt to Bolt Minimum Distance (D min) inch - 5.93
Bolt to Bolt Maximum Distance (D max) inch - 6.36
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.97
H (inch) - 1.31
Overall Height (J) inch - 4.56
L (inch) - 3.28
Base to Center Height (M) inch - 2.25
R (inch) - 0.9
S (inch) - 1.96
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
