Brand - DODGE
Item Number - 069540 DODGE - P4B-IP-208RE
Category - IMPERIAL - IP Pillow Block with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.5
Part Name - P4B-IP-208RE

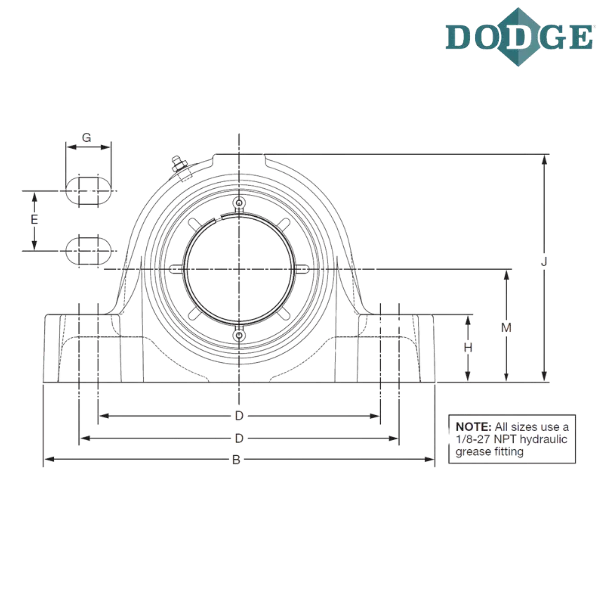

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 9.25
Width (C) inch - 3.28
Bolt to Bolt Minimum Distance (D min) inch - 6.94
Bolt to Bolt Maximum Distance (D max) inch - 7.31
E (inch) - 1.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.81
H (inch) - 1.63
Overall Height (J) inch - 5.59
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
S (inch) - 2.34

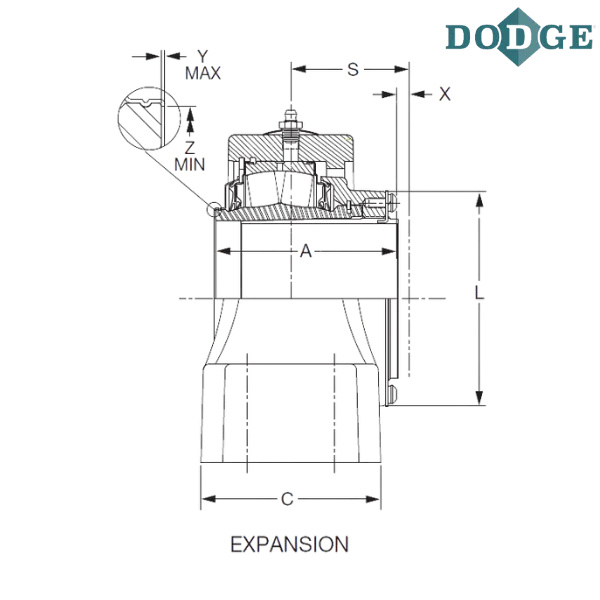

Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 2.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

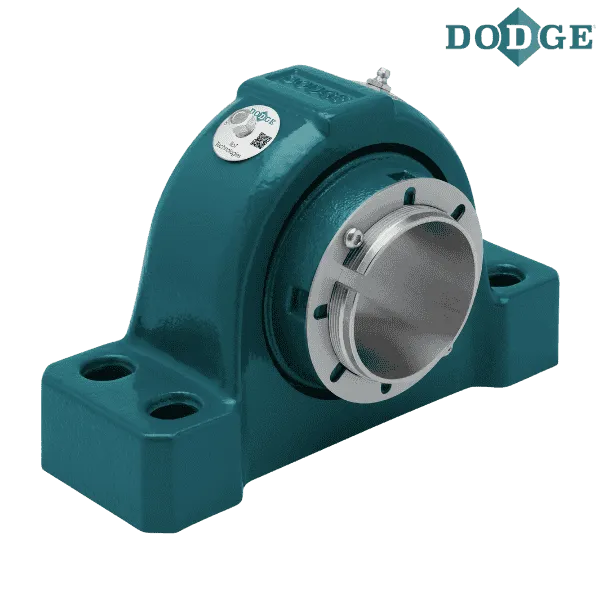

** Images are representation purposes only
