Brand - DODGE

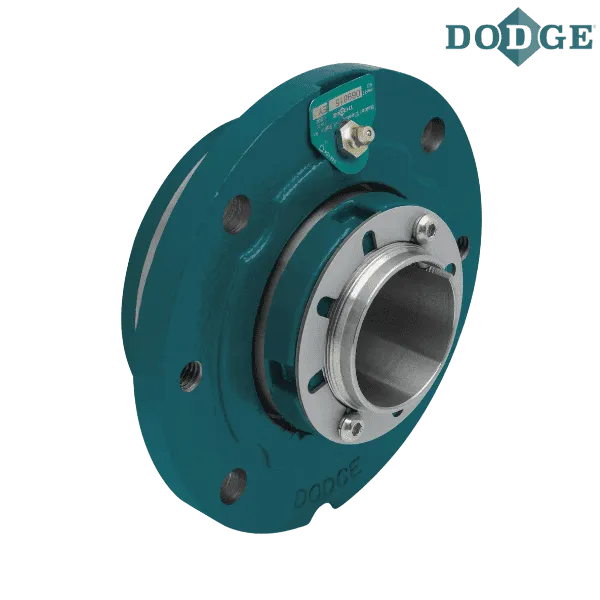

Item Number - 069889 DODGE - FC-IP-300L
Category - IMPERIAL - IP Piloted Flange (Labyrinth Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 3
Part Name - FC-IP-300L

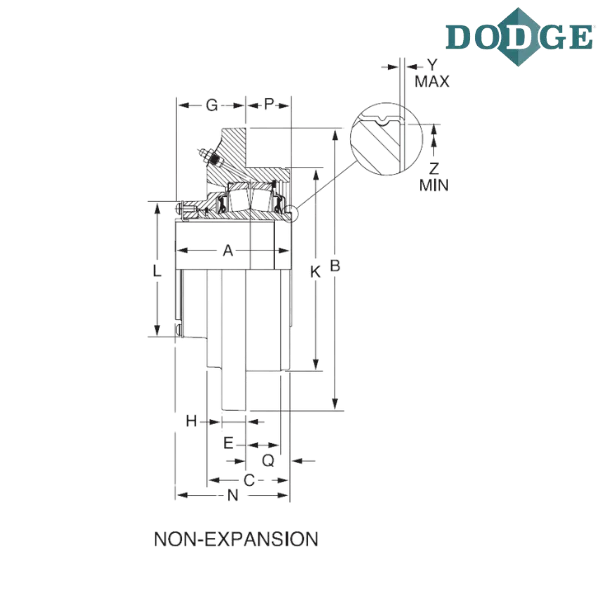

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 8.75
C (inch) - 2.63

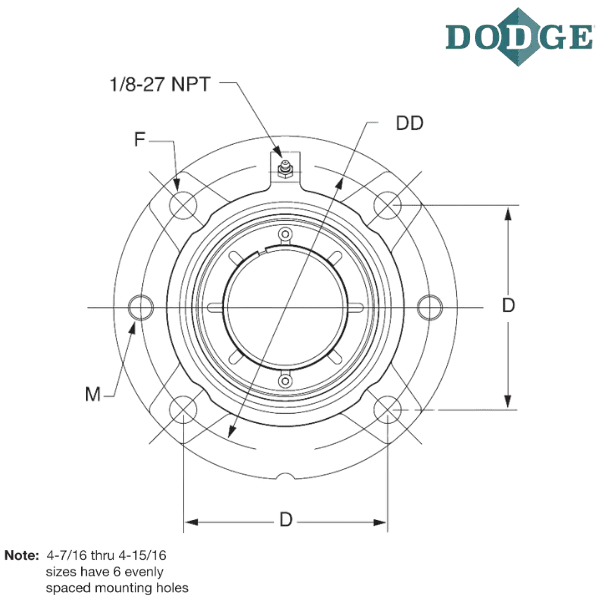

Bolt to Bolt Distance (D) inch - 5.3
Bolt Circle (DD) inch - 7.5
E (inch) - 1.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.94
H (inch) - 0.75
Pilot Diameter (K*) inch - 6.375
L (inch) - 4.28
M (inch) - 5/8-11
N (inch) - 3.56
P (inch) - 1.56
Pilot Depth (Q) inch - 1.63
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
L - Labyrinth Metallic Seal

* 0.000”, -0.002”

** Images are representation purposes only
