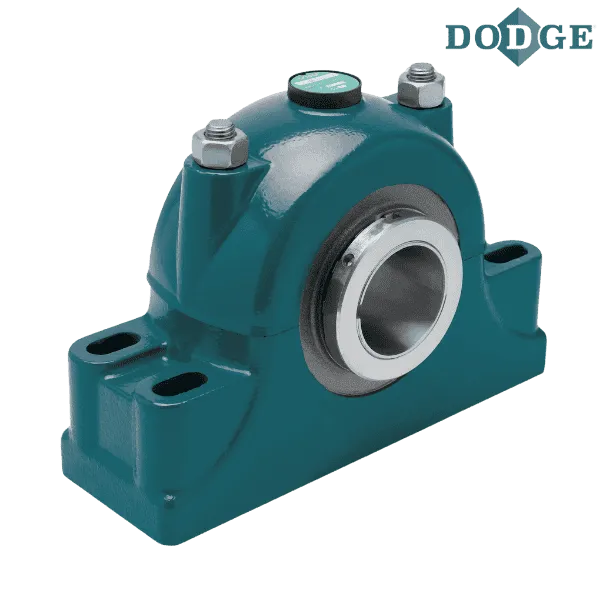

Brand - DODGE
Item Number - 066372 DODGE - P4B-SD-311
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 3.6875
Part Name - P4B-SD-311
Approximate Weight (lbs) - 215
Length Through Bore (A) inch - 8.5
Overall Length (B*) inch - 19
C* (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 15
Bolt to Bolt Maximum Distance (D max) inch - 16
Bolt Width (E) inch - 3.25
F-Bolt Diameter (inch) - 0.875
G* (inch) - 1.5
H* (inch) - 4
Overall Height (J) inch - 13.38
L (inch) - 6.25
Base to Center Height (M) inch - 6.38
P* (inch) - 13.75
R (inch) - 4.25
S (inch) - 4.25
Exp** (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only

*** Images are for representation purposes only
