Product Description

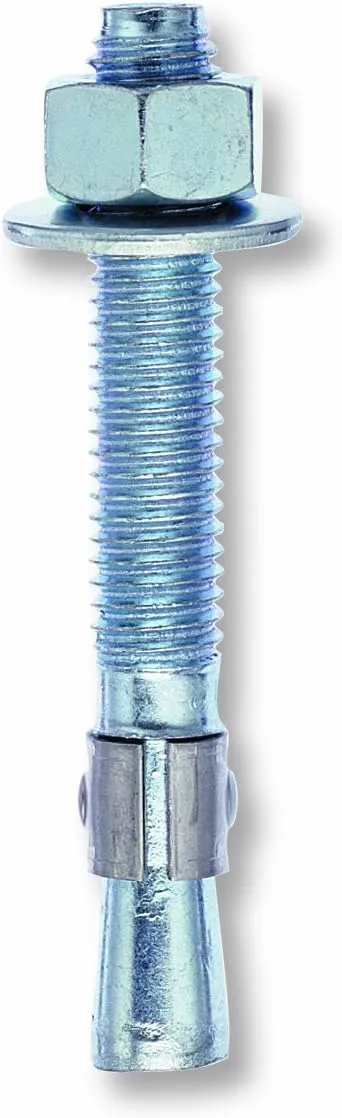

Red Head Wedge Anchor, Series: True bolt, 3/4 in Anchor Diameter, 5-1/2 in Anchor Length, 3-1/4 x 6-5/8 in Minimum Embedment Depth, Steel, 2 x 4 ft, Sill Plates, For Tilt-Up Construction, Highway Rails and Posts, HVAC and Plumbing Systems, Metal Doors and Window Frames. Designed for fastening applications in solid concrete. Corrosion resistant. Anchors are building code approved.

From the Manufacturer

Dependable, heavy duty, inspectable, wedge type expansion anchor. Made of zinc-plated carbon steel--standard anchor for all structural and in-plant uses. Versatile fully threaded design. Anchor diameter equals hole diameter. One piece stainless steel expander clip resists corrosion. 360 degree contact with concrete assures full expansion for reliable working loads. Complete with nut and washer. Can be installed through the work fixture, eliminating hole spotting. Inspectable torque values, indicating proper installation. Zinc-plated in accordance with Federal specification ASTM B633-85, SC1, Type III. Anchor diameter and drill bit size: 3/4 in. Threads per inch: 10. Anchor diameter and drill bit size: 3/4". Threads per inch: 10. Thread length: 3 in. Overall length: 5-1/2 in. Maximum thickness of material to be fastened: 1-1/2 in
