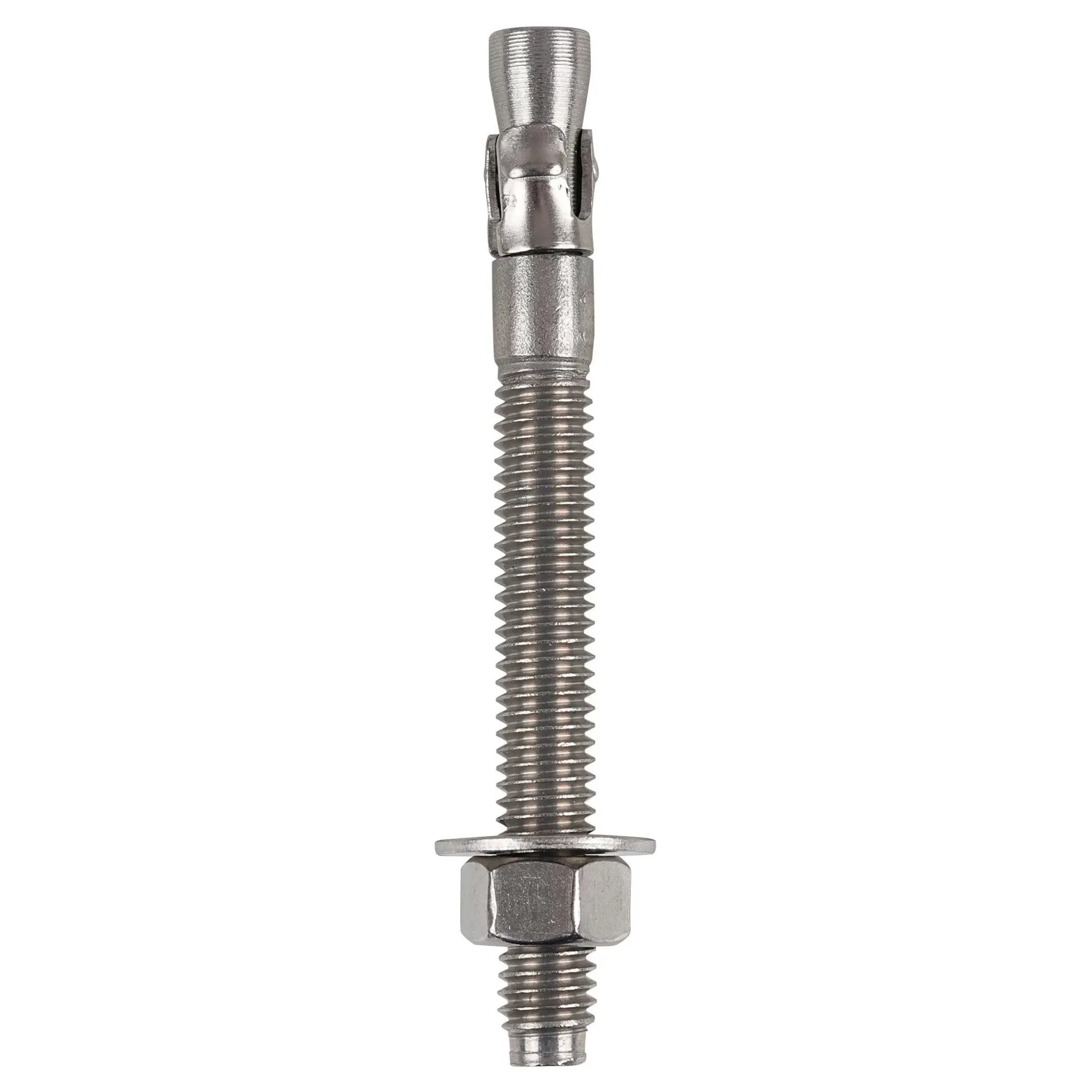

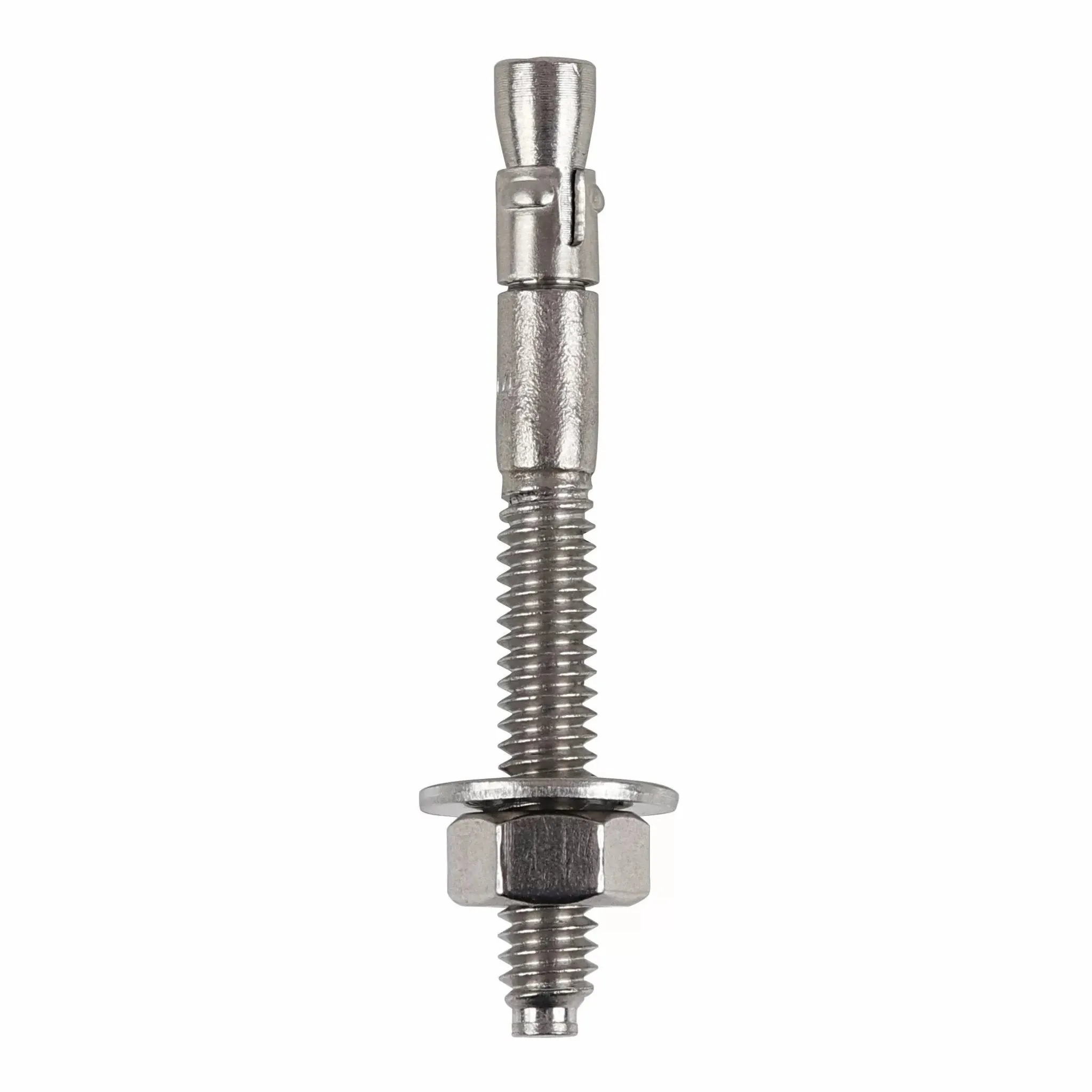

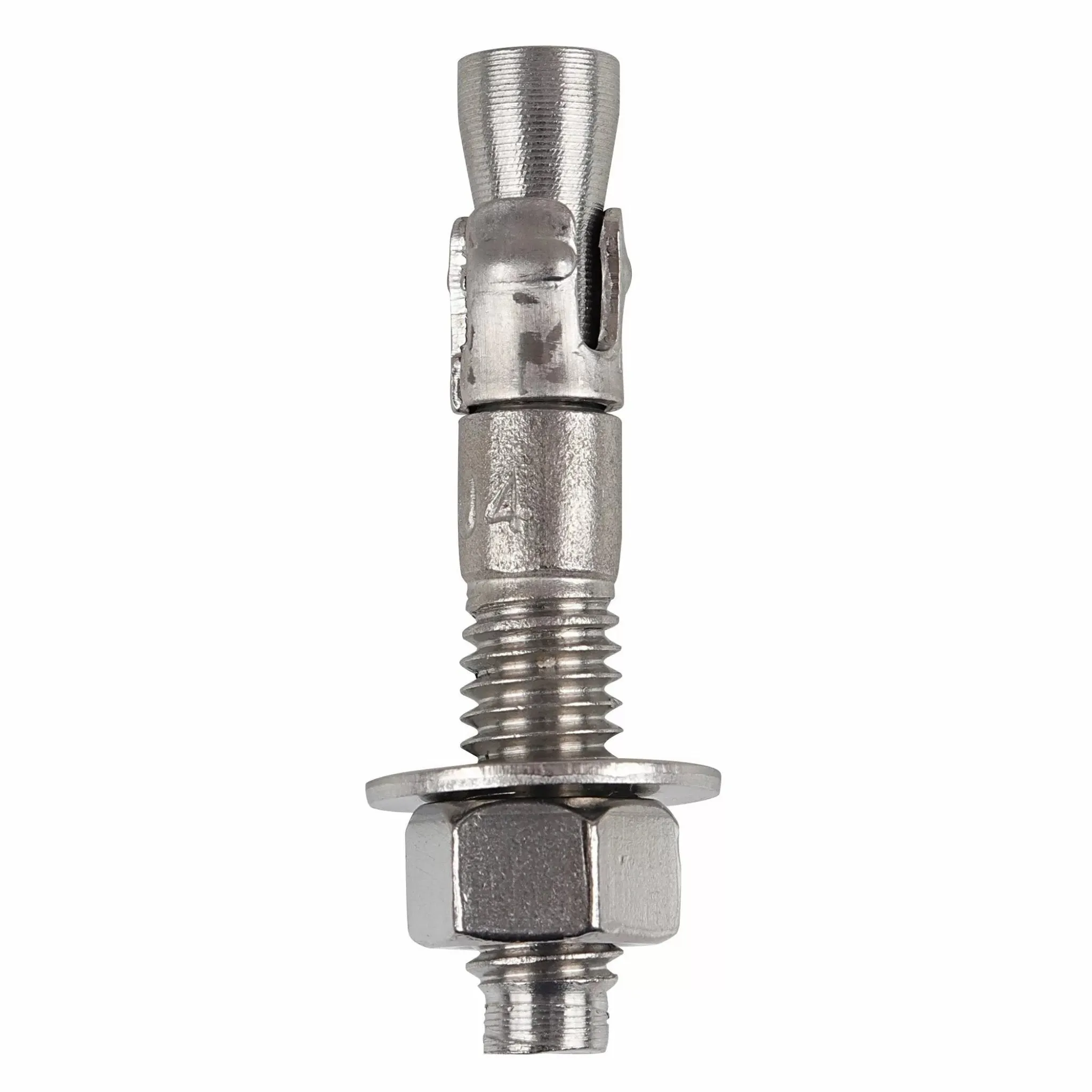

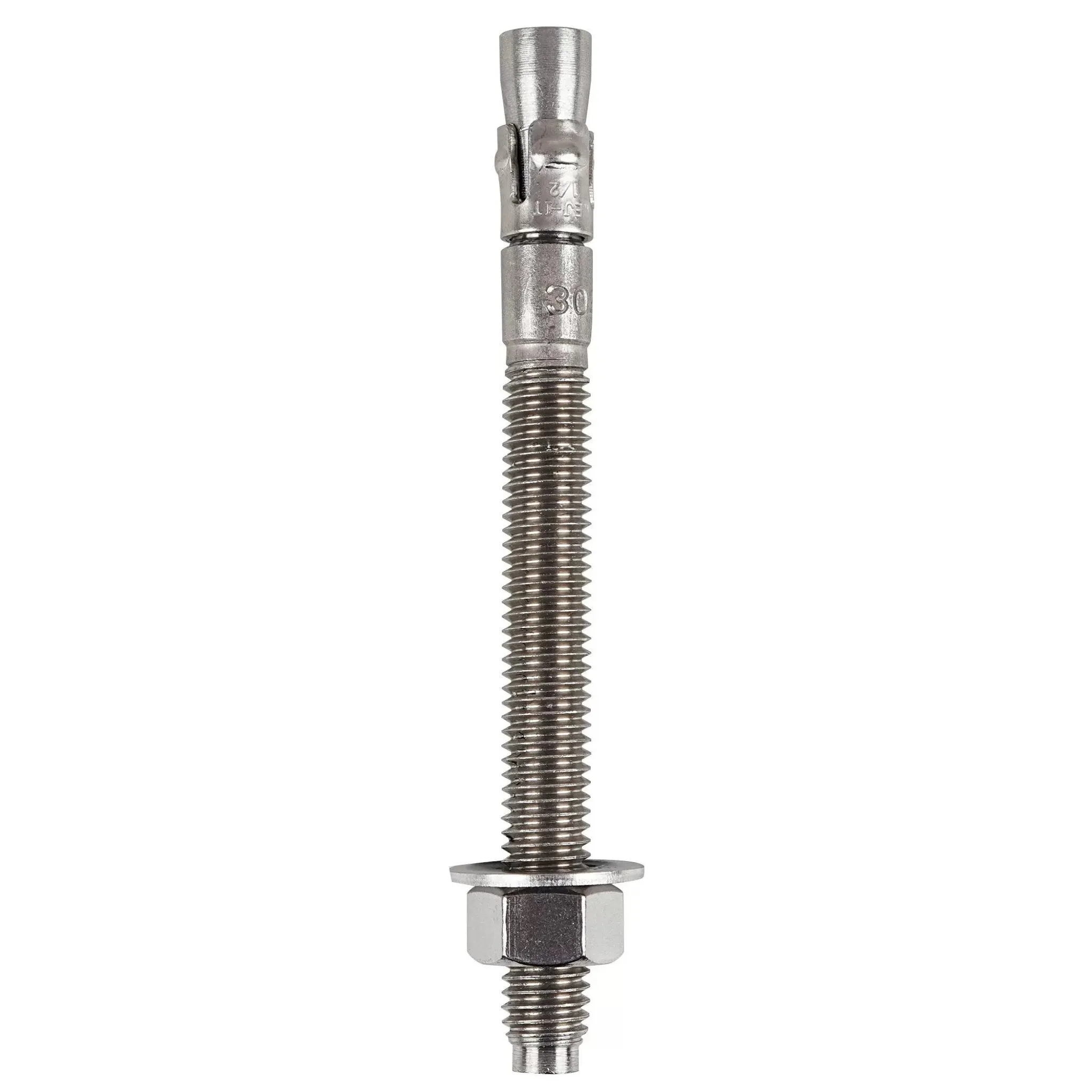

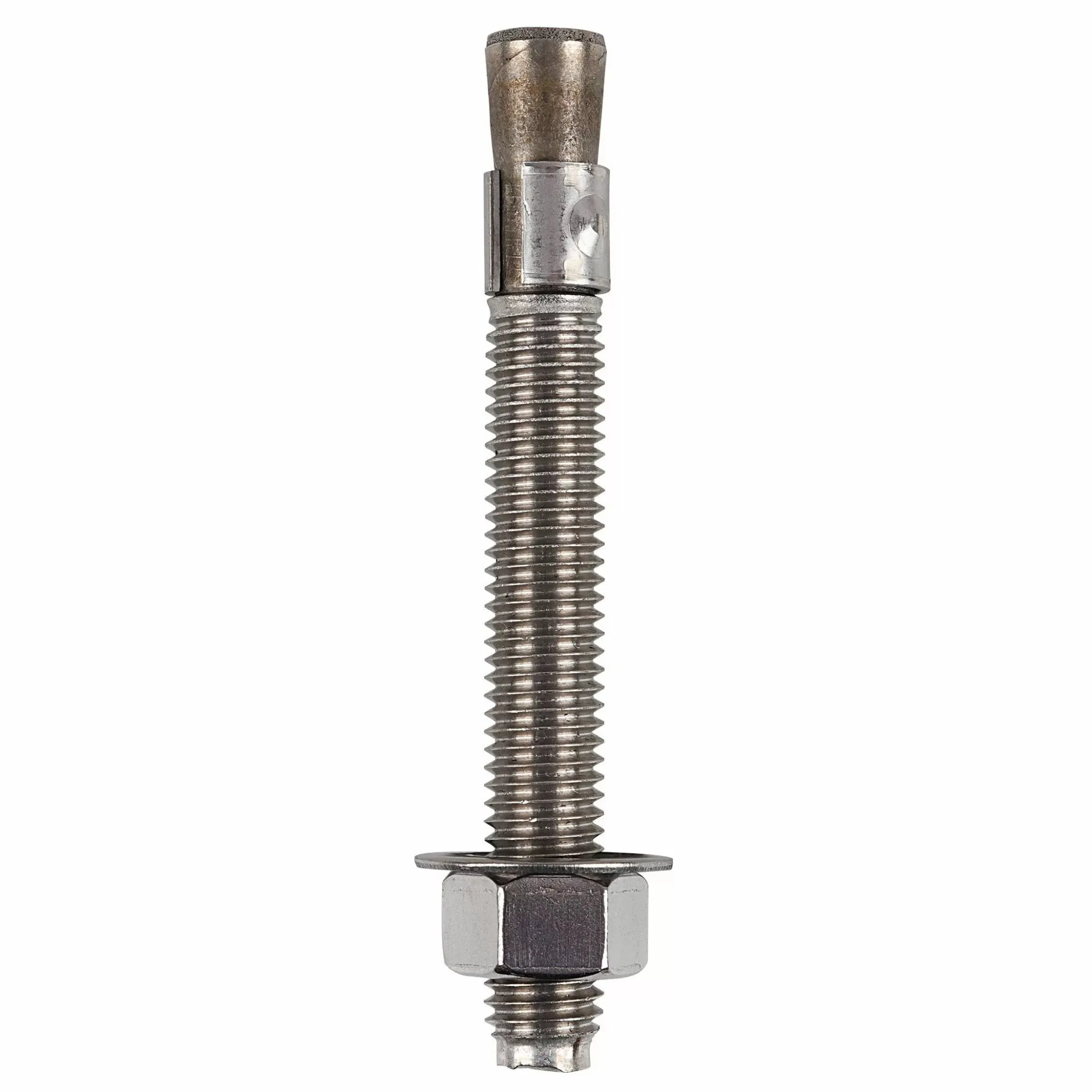

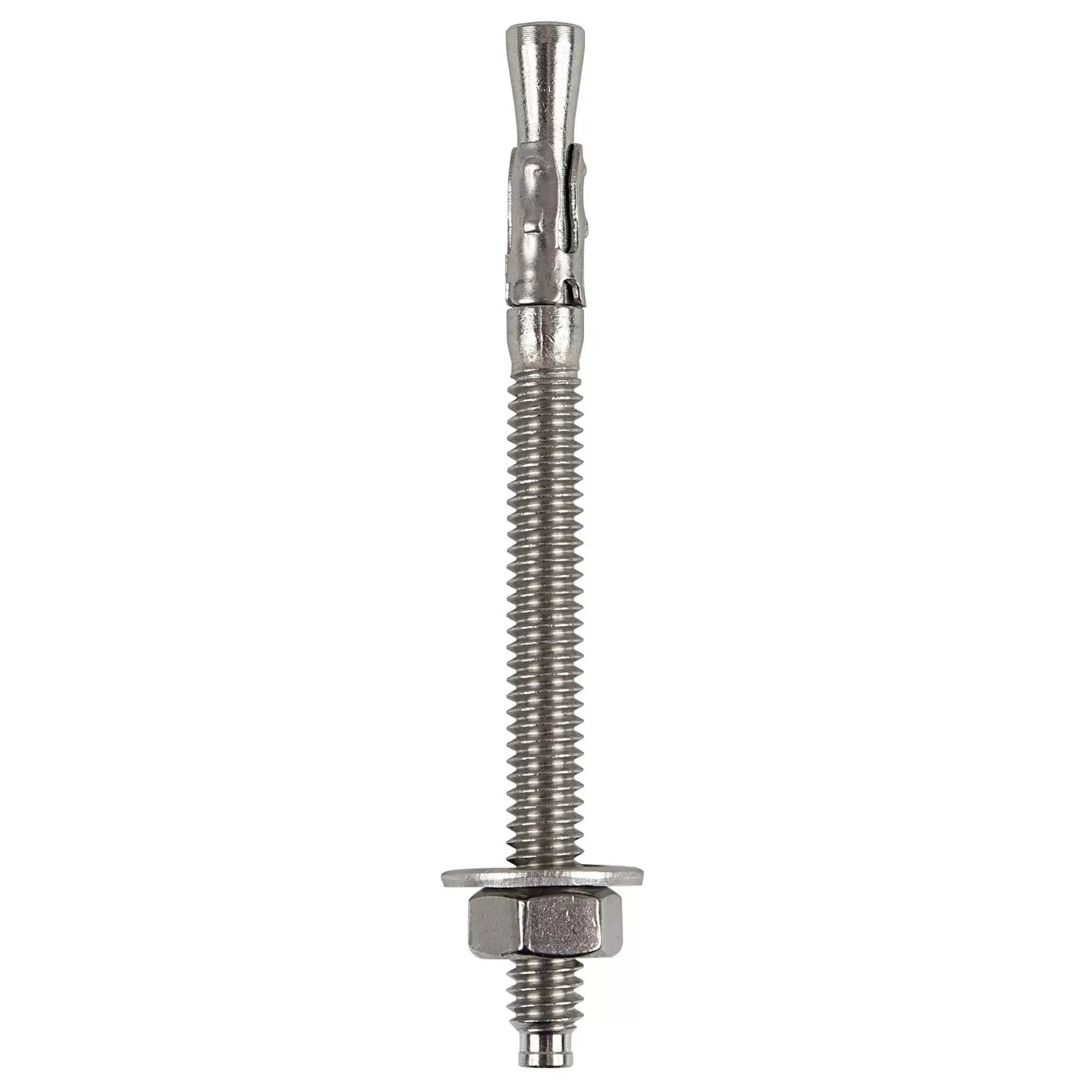

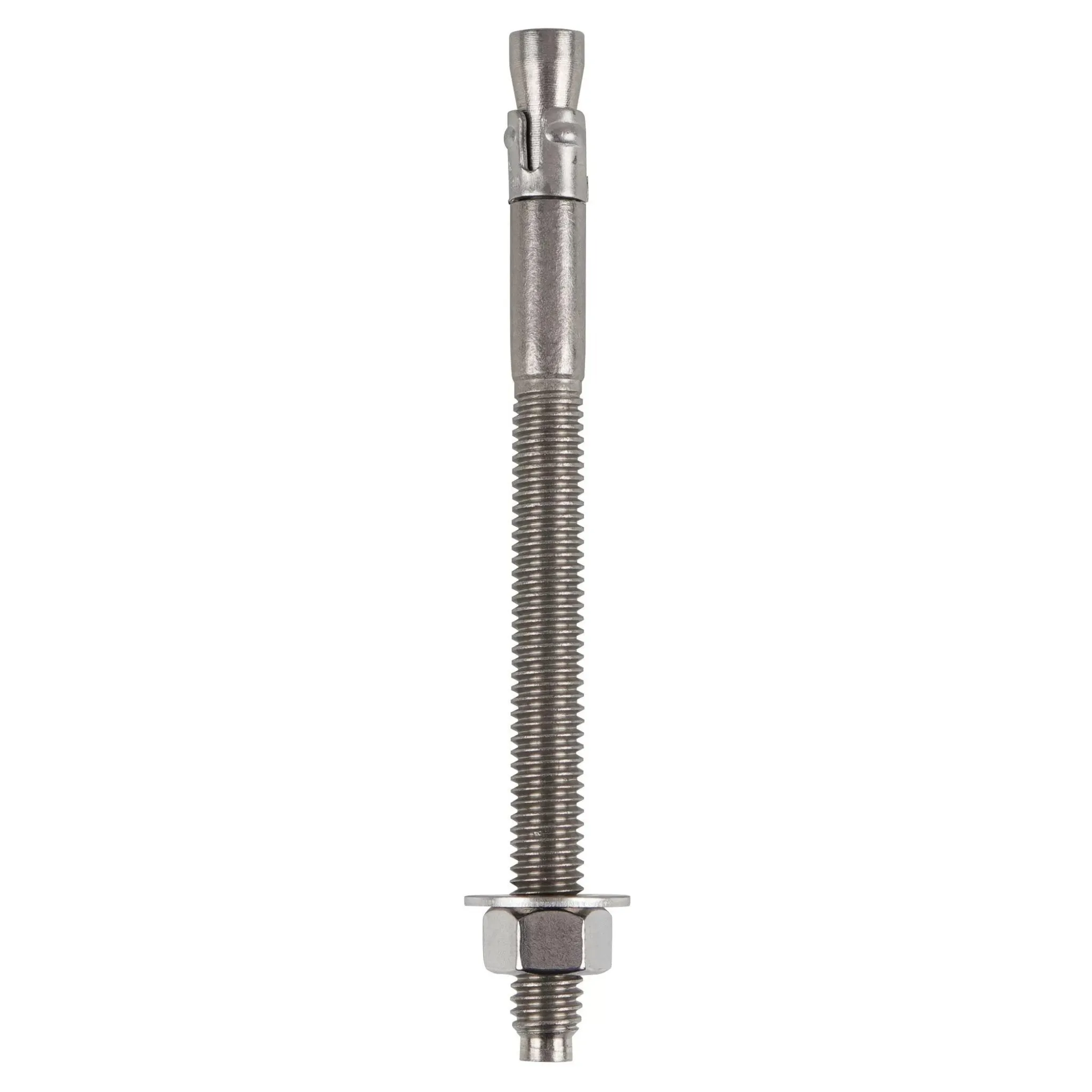

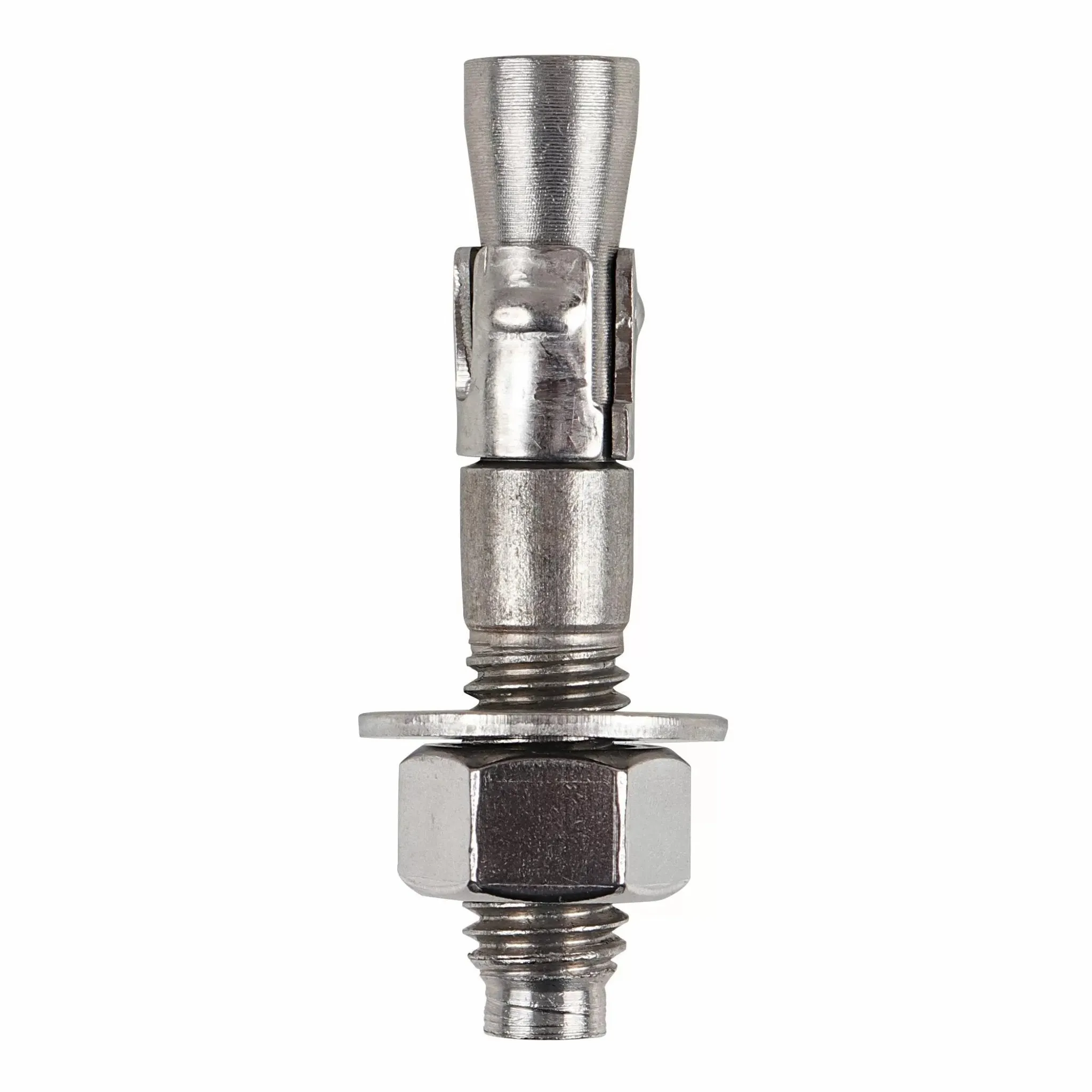

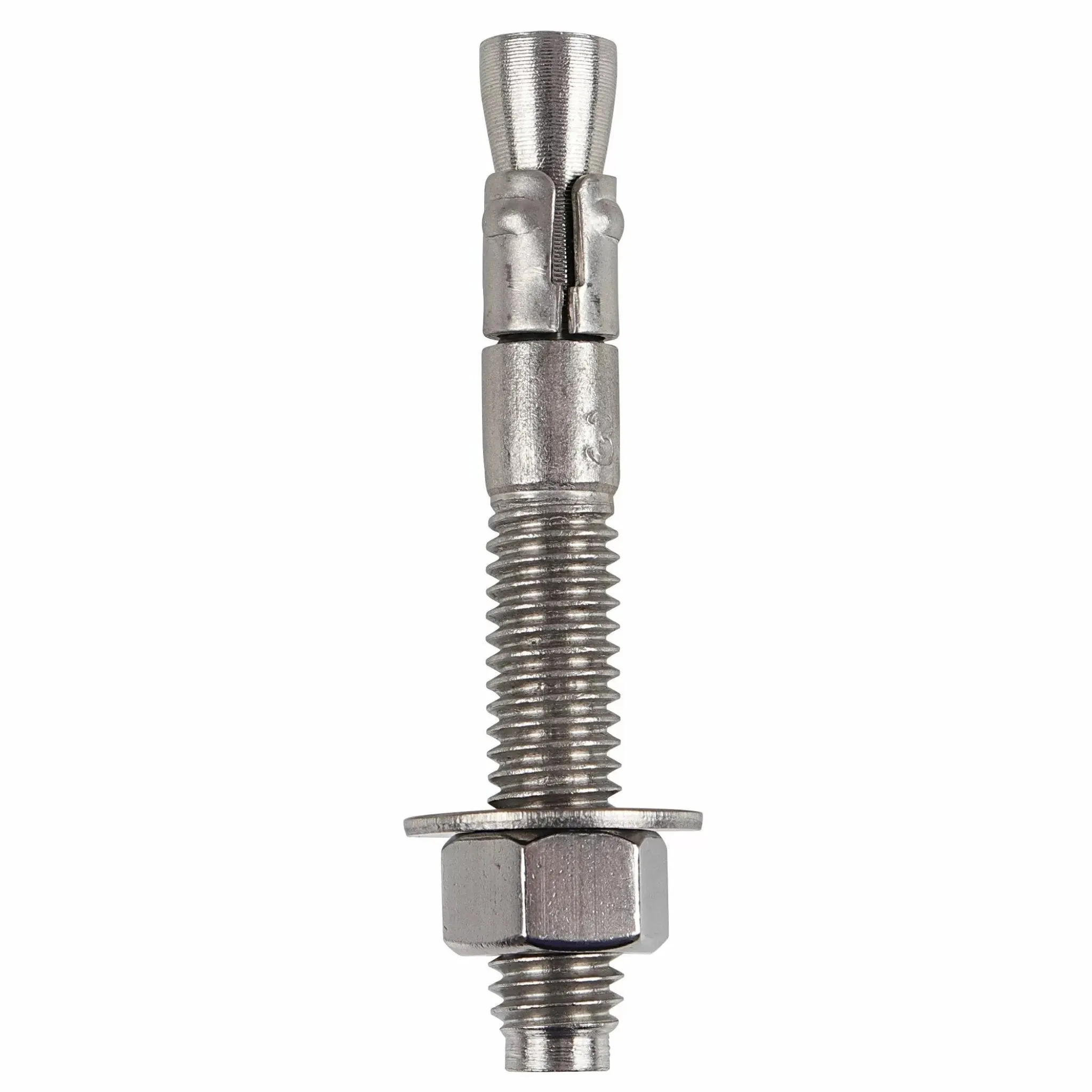

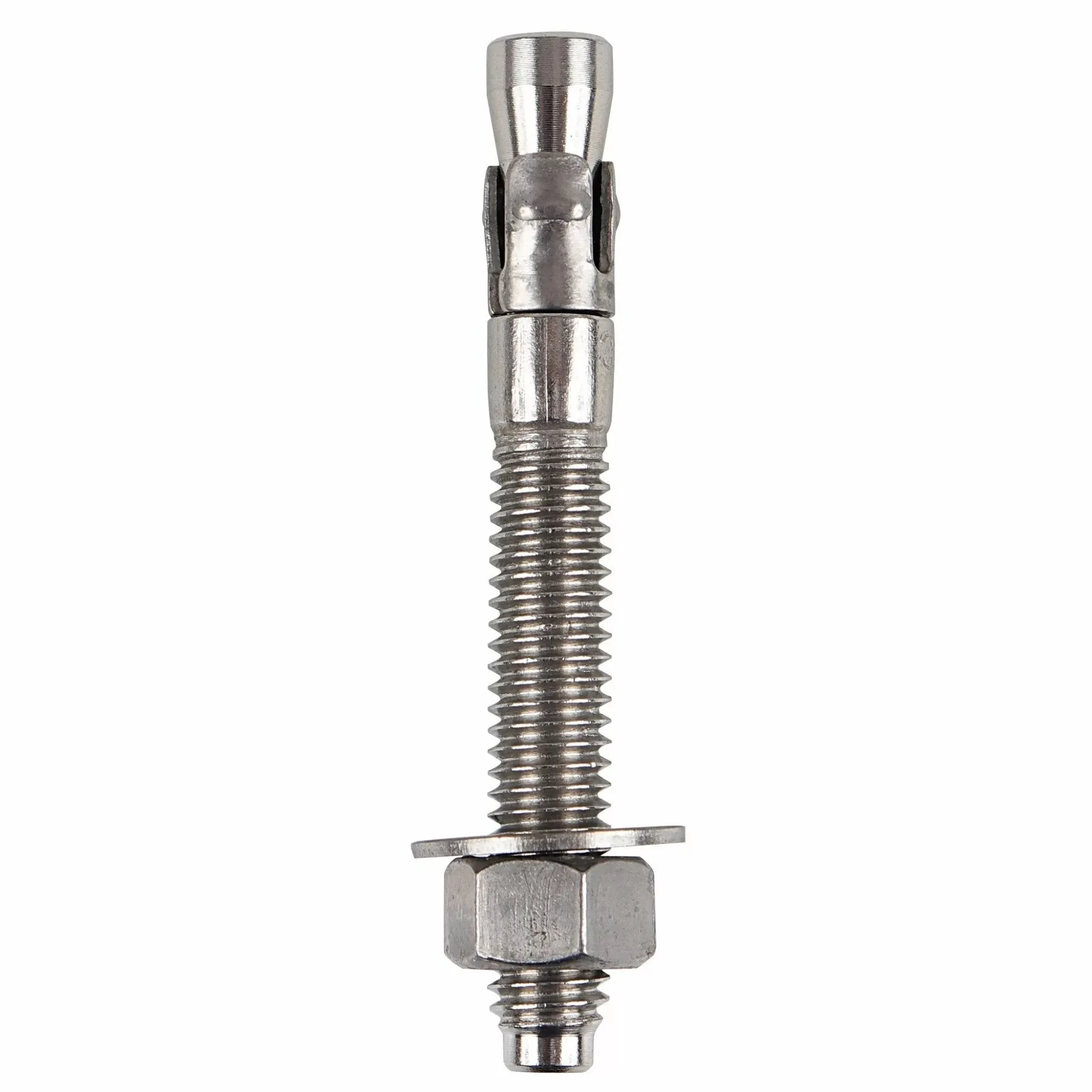

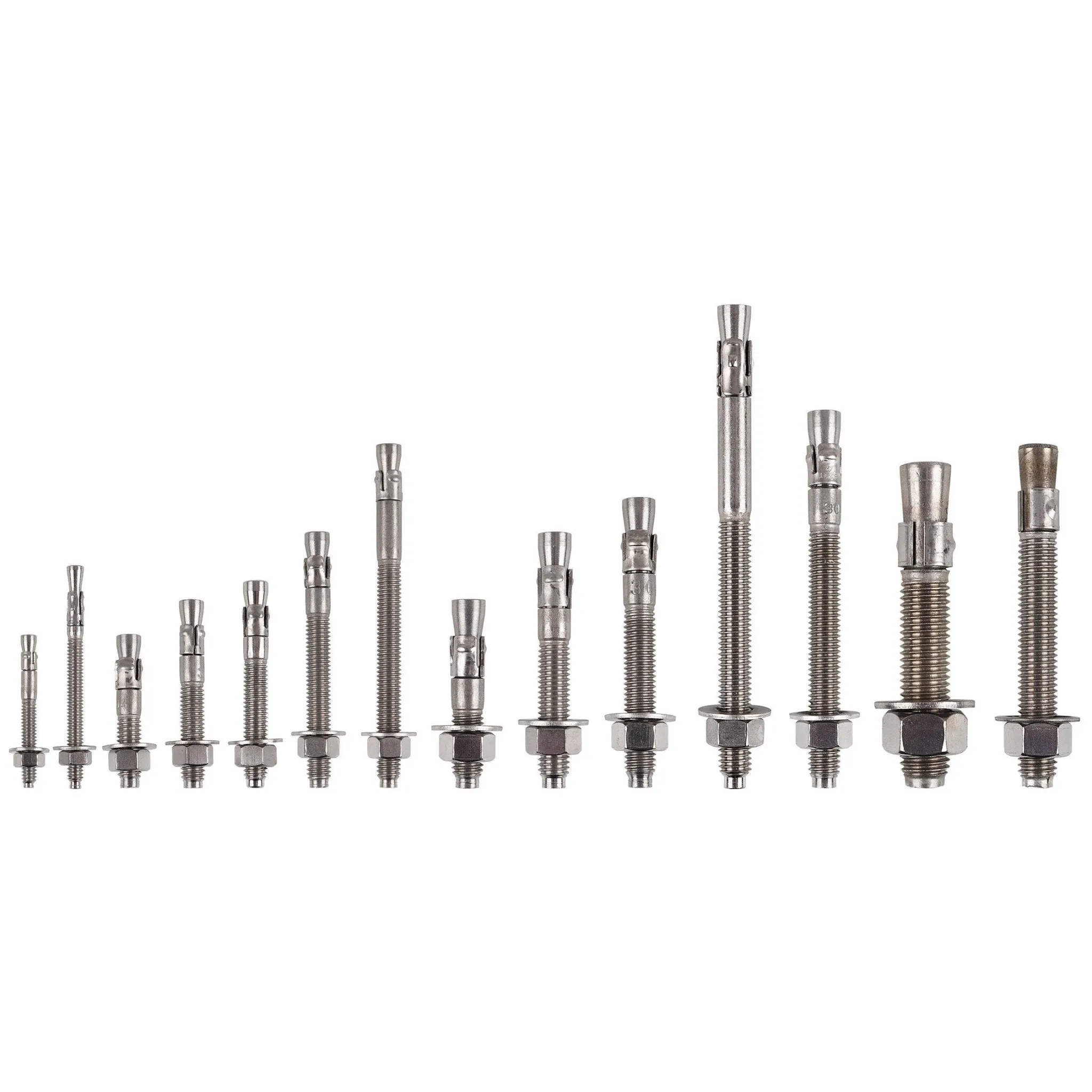

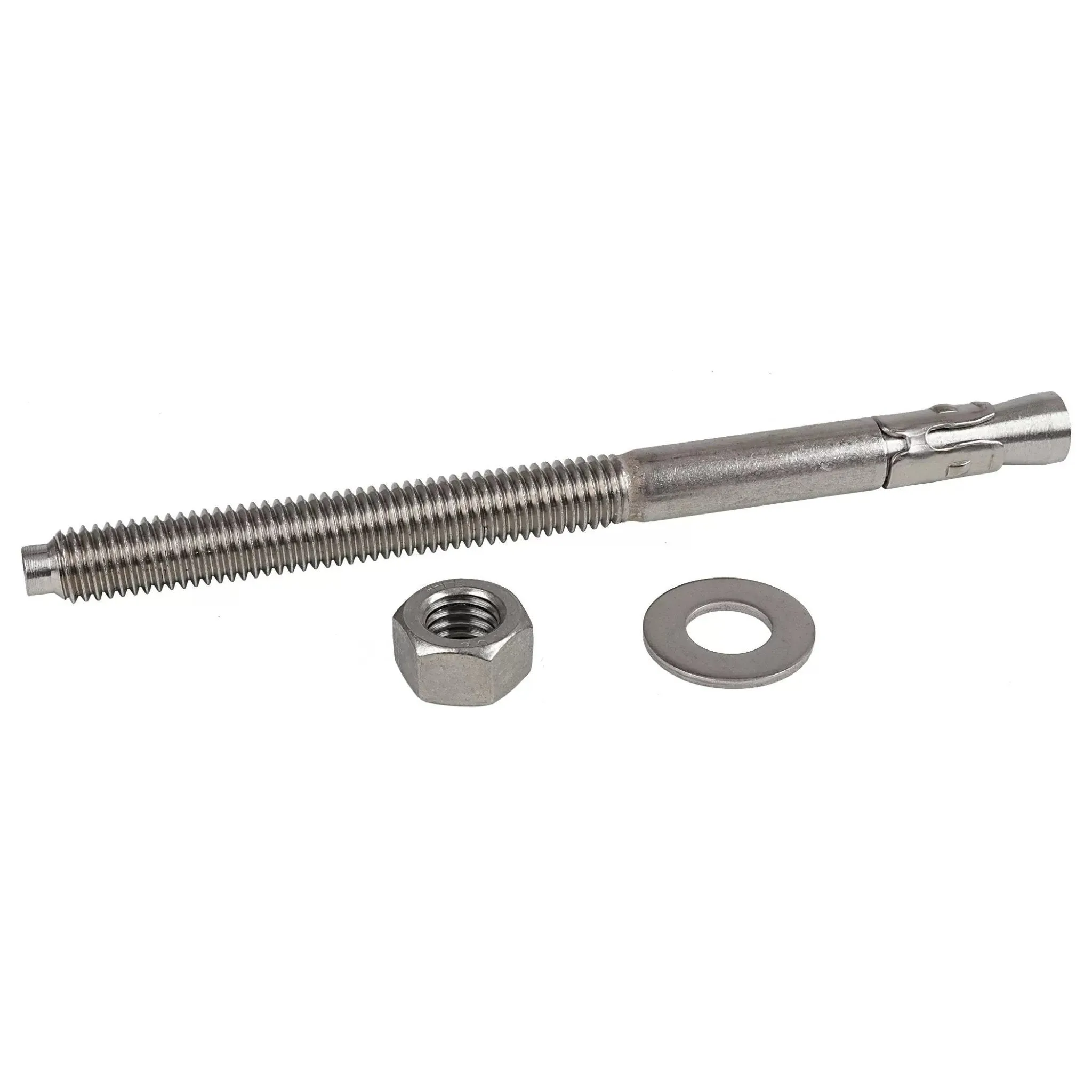

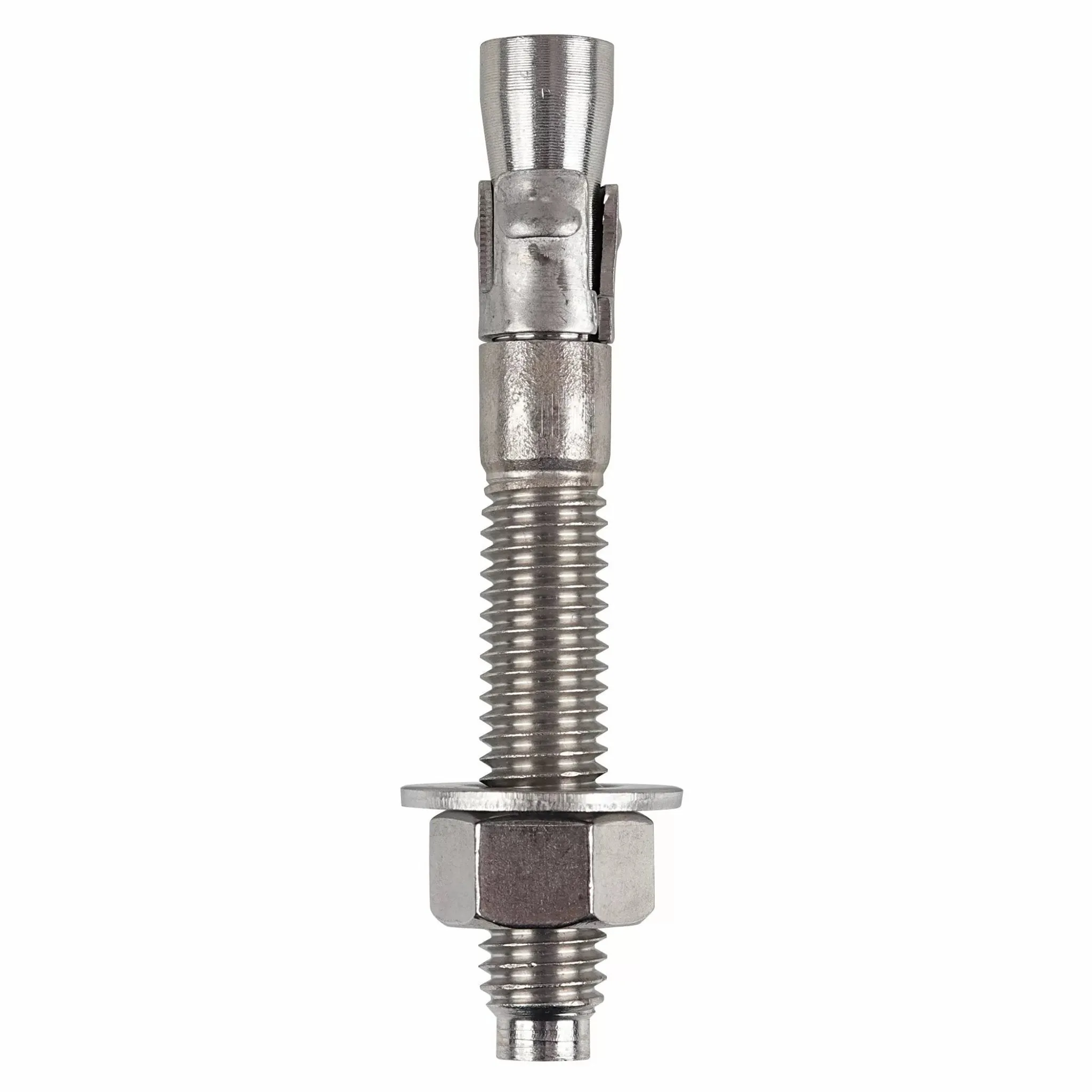

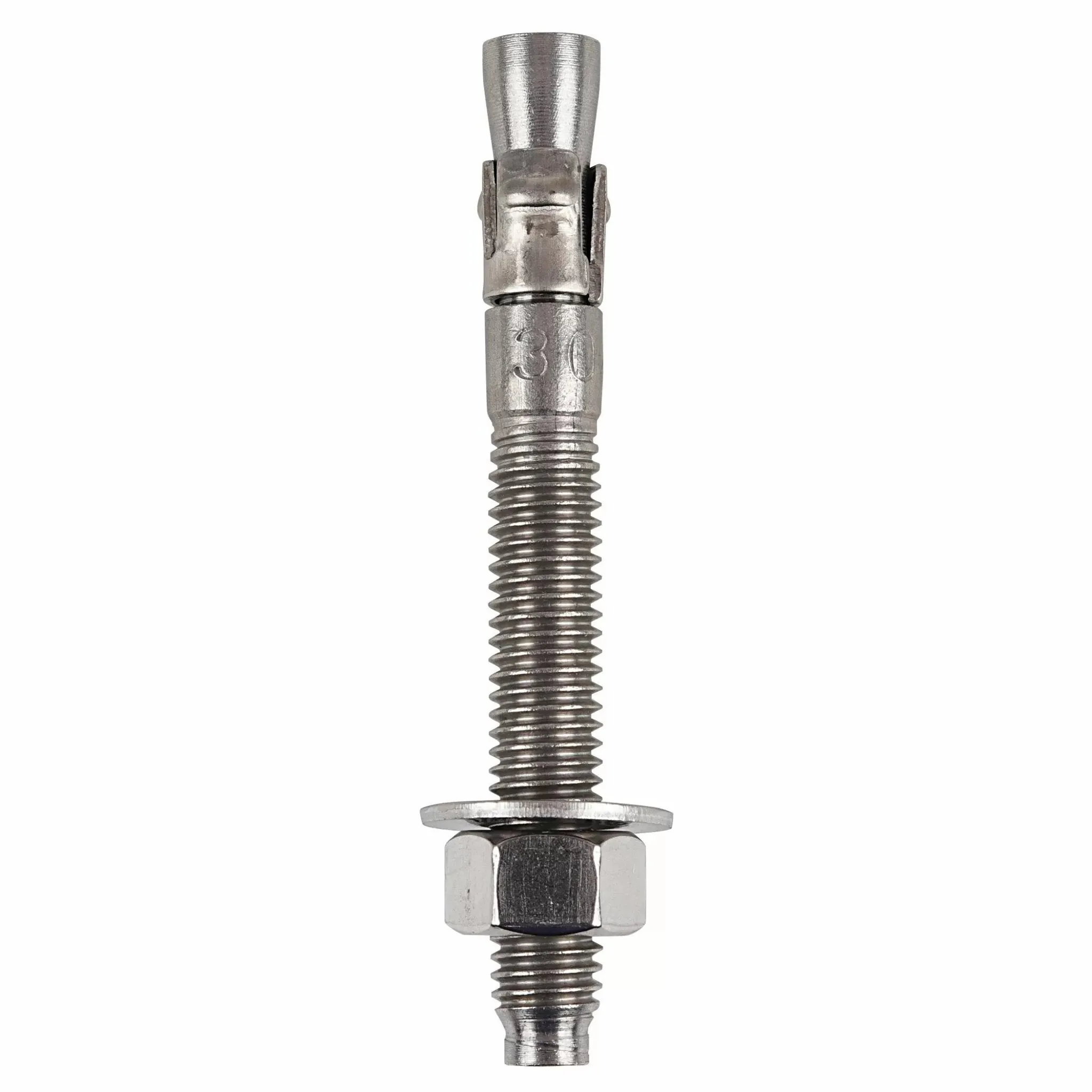

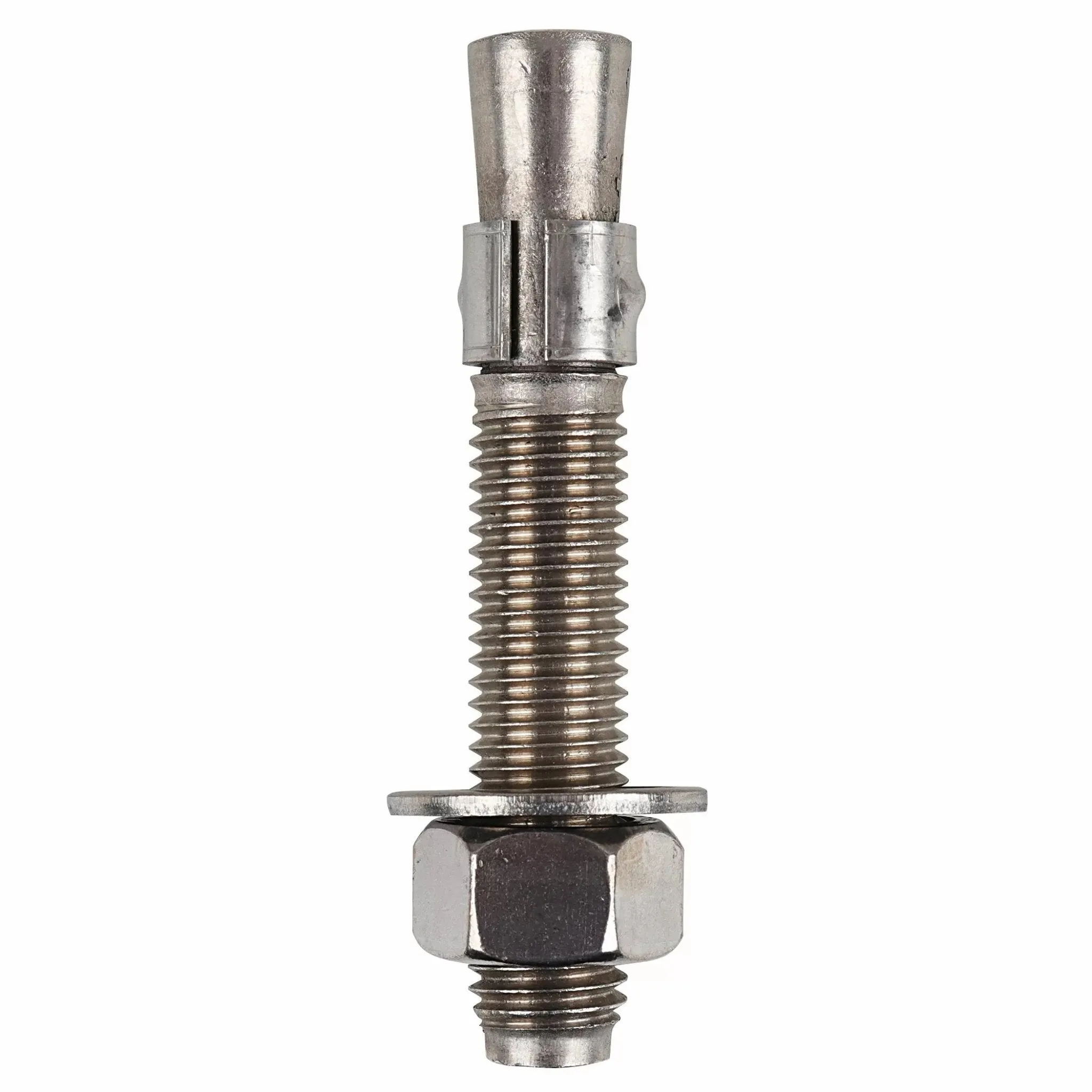

Stainless steel wedge-type expansion anchor bolts are versatile with a fully threaded design. The anchor diameter equals hole diameter. They have a non bottom-bearing which may be used in hole depth exceeding anchor length. The bolt comes complete with nut and washer with heavy duty pull-out and shear capacities. These wedge anchor bolts meets or exceeds U.S. Government G.S.A. Specifications.

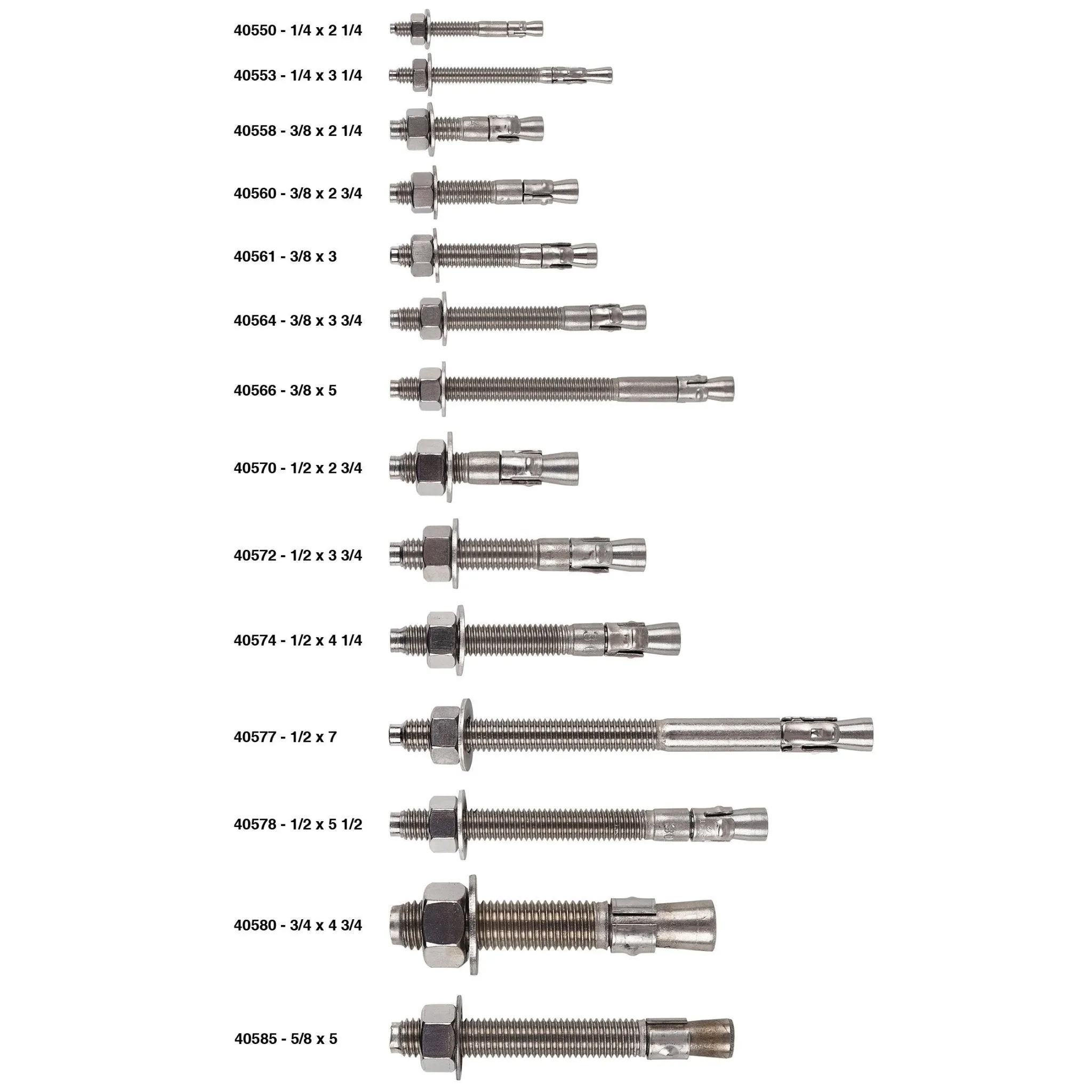

| QC Supply Part # | Bolt Diameter | Overall Length | Standard Box | Weight/Box |
|---|---|---|---|---|
| 40550 | 1/4" | 2 1/4" | 100 | 4.1 |
| 40553 | 1/4" | 3 1/4" | 100 | 4.4 |
| 40558 | 3/8" | 2 1/4" | 50 | 4.2 |
| 40560 | 3/8" | 2 3/4" | 50 | 5.0 |
| 40561 | 3/8" | 3" | 50 | 5.4 |
| 40564 | 3/8" | 3 3/4" | 50 | 6.4 |
| 40566 | 3/8" | 5" | 50 | 8.7 |
| 40570 | 1/2" | 2 3/4" | 25 | 4.7 |
| 40572 | 1/2" | 3 3/4" | 25 | 5.7 |
| 40574 | 1/2" | 4 1/4" | 25 | 6.8 |
| 40578 | 1/2" | 5 1/2" | 25 | 8.5 |
| 40585 | 5/8" | 5" | 10 | 5.0 |
| 40580 | 3/4" | 4 3/4" | 10 | 7.1 |
