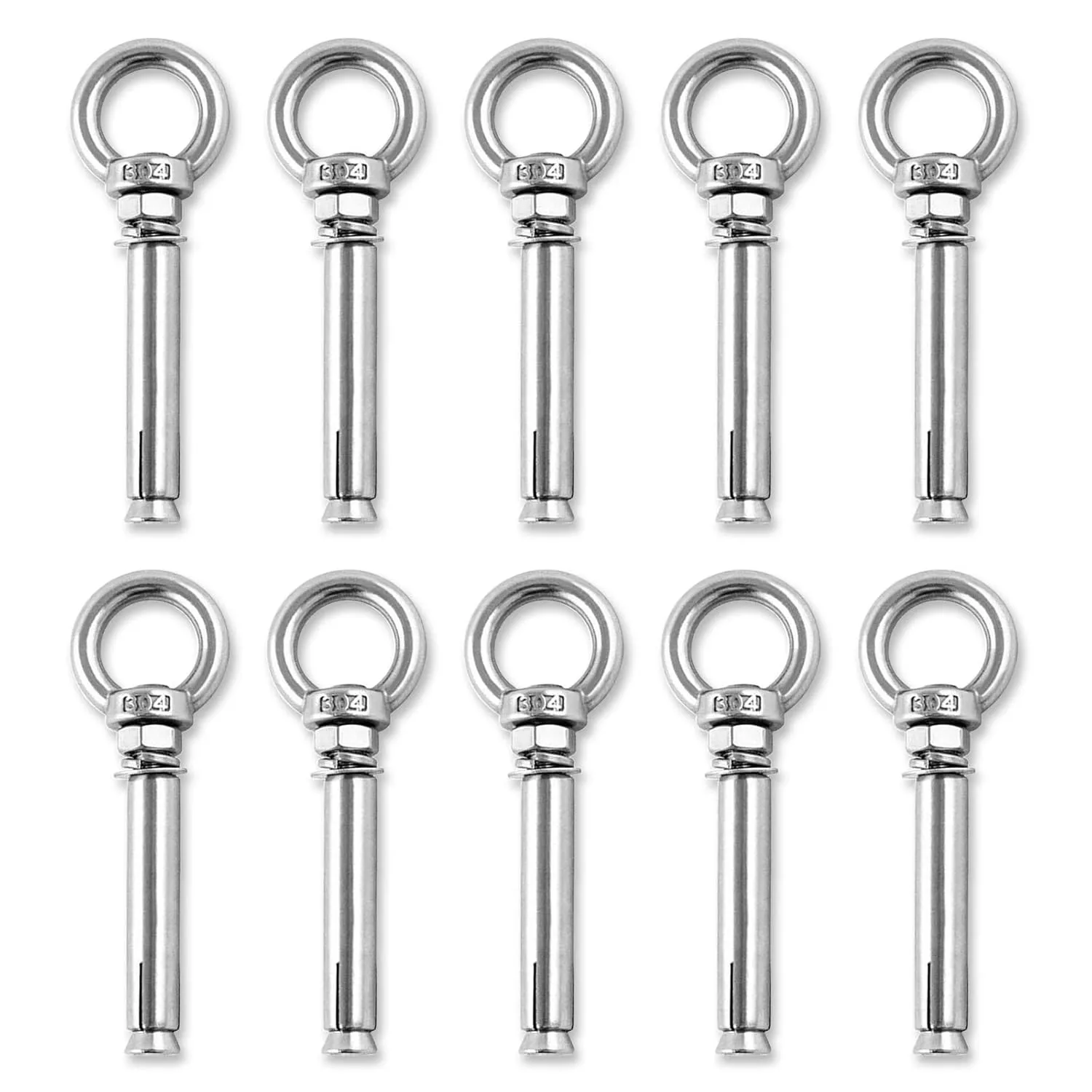

- ✔【Size & Qty】Inside the package is 10 m6 concrete anchors. Ring: 1.134"x1.052"x0.199"(abh), screw: 0.228"x2.33" (WxL), sleeve: 0.373"x1.565"(WxL). The recommended drill bit size is 3/8", drilling a hole of 0.37" dia and 1.7" deep
- ✔【Nicely Made】304 stainless steel, anti-loosing lock washers, shiny finish, rustproof, and long use period
- ✔【Heavy Duty】Eye screws for concrete can carry up to 220 lbs. Working Load: 220 lbs. Broken Load: 440 lbs
- ✔【Easy to Install】The eyebolt works by rotating ring clockwise until unable to rotate, then screw will expand and entirely fill a hole
- ✔【Worked Great】M6 shoulder eyebolts work so well for so many applications in soil nailing, masonry, anchors and concrete surface. Worked perfectly for installing sun shade sail/sail on brick walls, fixing rope, canopy, perfect accessory for making fence, home decoration or engineering, etc
🔆Ekunbuy is a company specializing in the production of various series of stainless steel products, our own factory.
We offer products in stainless steel which ensure durability, corrosion resistance, high load ratings, and are ideal for outdoor.
Spring snap hook, swivel eye snap hook, quick link, towing chain, chain, wire rope, wire rope clamp, shoulder eye bolt, turnbuckle hook & eye, O ring, D ring shackle, etc.
We examined all the products carefully before shipment.
Glad to be of service, please feel free to contact us anytime.
🔆Why others choose Ekunbuy Shoulder Eyebolts?
✔High Quality-304 SS, no rust, no corrosion.
✔Easy to install-Expansion is created by tightening a threaded bolt which draws a tapered cone expanding a sleeve against the walls of the hole.
✔Heavy Duty-Widely used in fence, burglarproof doors and window, canopy, air conditioning fixation, home decoration, engineering, etc.
🔆Specifications :
🔆Material:304 Stainless Steel
🔆Fastener Type: Threaded Fastener

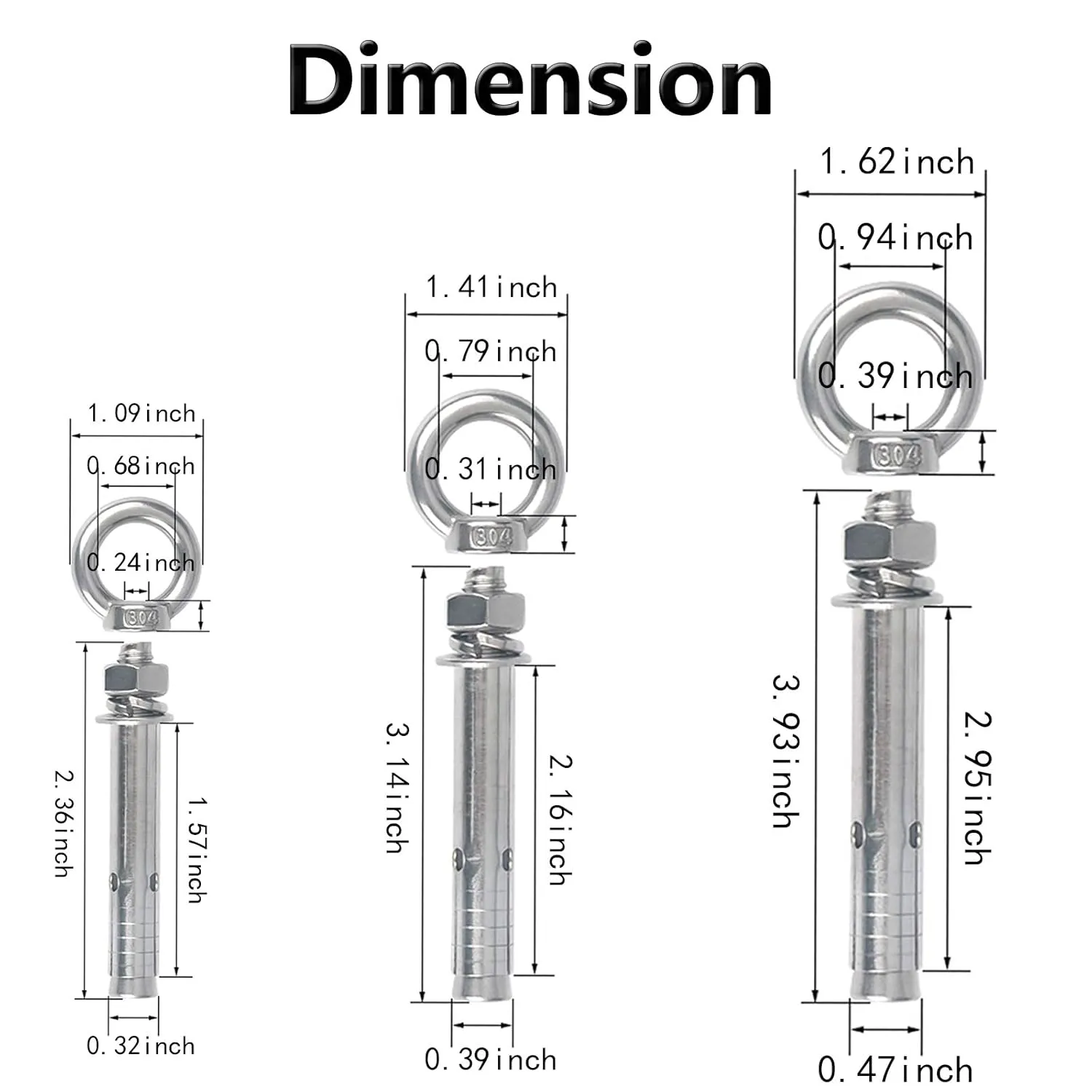

🔆Size: M6 M8 M10
M6Upper ring: 1.134"x1.052"x0.199"(abh), screw: 0.228"x2.33" (WxL), sleeve: 0.373"x1.565"(WxL).
M8Upper ring: 1.407"x1.349"x0.284"(abh), screw: 0.292"x3.057" (WxL), sleeve: 0.45"x2.111"(WxL).
M10Upper ring: 1.651"x1.638"x0.327"(abh), screw: 0.372"x3.869" (WxL), sleeve: 0.533"x2.761"(WxL).
🔆Working Load Limit :
M6: 221 lb
M8: 331 lb
M10: 441 lb
🔆Installation Method:
1. Using the correct size bit type 3/8" drill holes in the wall/ground, and then put screw into drill holes.
2. The rear screw fixed, the front eye can be rotated right.
3. The inner expansive screw expands, until the eye stops rotate.
4. The eyebolt is installed securely, a successful install.
🔆What you get:
5/10PCS M6/M8/M10 Eyebolts(The Size & Qty you choose)
- Package Dimensions : 6.42 x 3.39 x 0.67 inches; 13.76 ounces
- Date First Available : November 19, 2020
- Manufacturer : Ekunbuy
- Country of Origin : China
