C3WEA
The WireEye series of carabiners combines the utility of a standard carabiner with the safety and capability of a lanyard pin, or captive eye. The WireEye holds gear, lanyards and lines with enough resistance to help prevent gear from moving past the end of the carabiner, but releases easily when lifted up. When the potential for dangerous leverage or cross-loading can occur, the WireEye helps keep the carabiner oriented correctly, and the gear where it belongs.
The WireEye is available on the Pirate and rockO frames in 3 stage autolock.
WIRE-EYE
CARABINERS
- Releasable wire gate gives you quick access to capture and release lines or gear.
- Takes the place of a fixed lanyard pin or captive-eye carabiner when a permanent hold is not needed.
- Use as a standard carabiner with the added benefit of the wire restraint.
- Features the same strength and quality characteristics as other Rock Exotica carabiners.
GATES AVAILABLE
ON THE WIRE-EYE
Pull down toward palm, twist and open. 3-stage mechanism.
WIRE-EYE CARABINER SPECS
WIREEYE AUTO-LOCK PIRATE
| Twist-lock |
| C1 T |
| 26kN |
| 12kN |
| 7kN |
| 1.0" (25 mm) |
| 3.20 oz (91 gm) |
| 4.2" (107 mm) |
| 2.8" (71 mm) |
| Orange/Black |
| n/a |
WIREEYE SCREW-LOCK PIRATE
| Screw-Lock |
| C1 WES |
| 26kN |
| 11kN |
| 7kN |
| 1.0" (25 mm) |
| 2.96 oz (84 gm) |
| 4.2" (107 mm) |
| 2.8" (71 mm) |
| Orange/Black |
| CE |

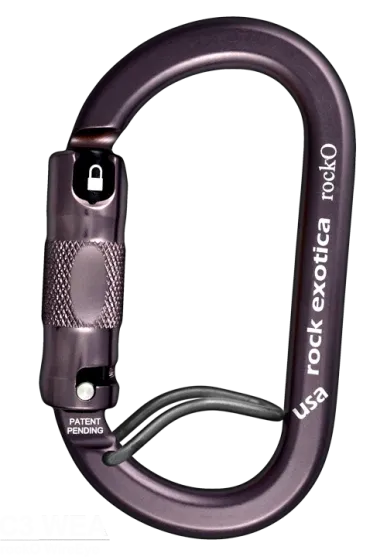

WIREEYE AUTO ROCKO
| Auto-lock |
| C3 WEA |
| 24kN |
| 9kN |
| 6kN |
| .93" (22 mm) |
| 2.96 oz (84 gm) |
| 4.2" (107 mm) |
| 2.8" (71 mm) |
| Orange/Black |
| CE |
