High quality stainless steel anchor for typical exterior use (pack of 20)

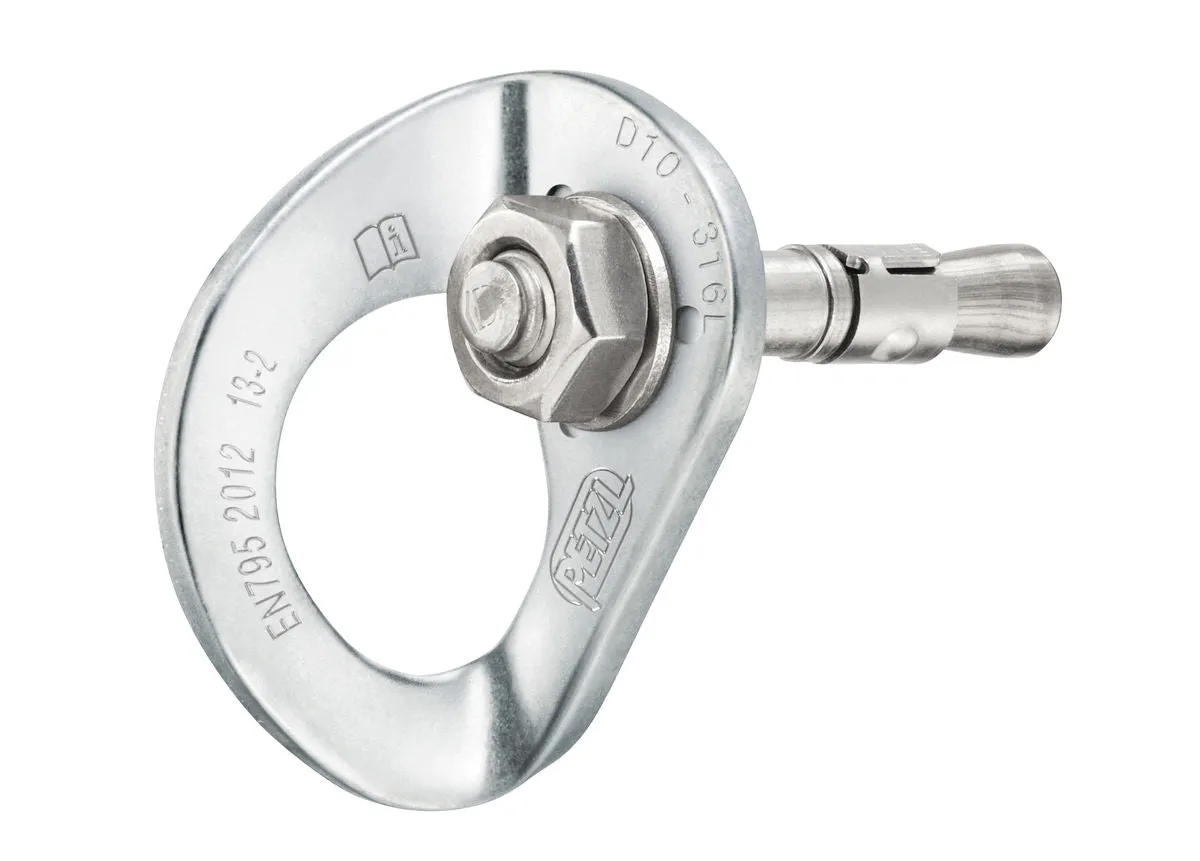

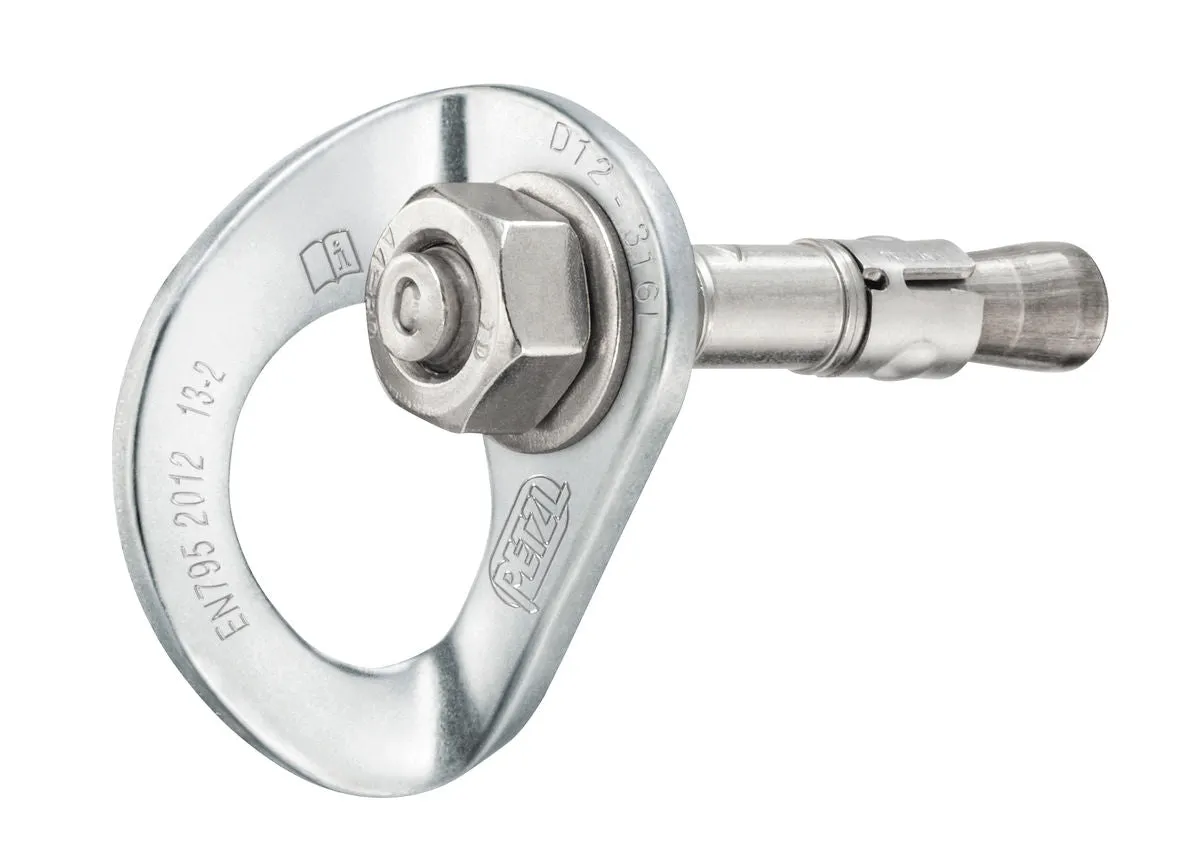

The COEUR BOLT STAINLESS is a high-quality stainless steel anchor made up of a COEUR STAINLESS hanger, a bolt, and a nut. It is designed for use in typical outdoor environments. It is available in 10 and 12 mm diameters.
- 316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, made up of a COEUR STAINLESS hanger, a bolt, and a nut
- Easy to clip:

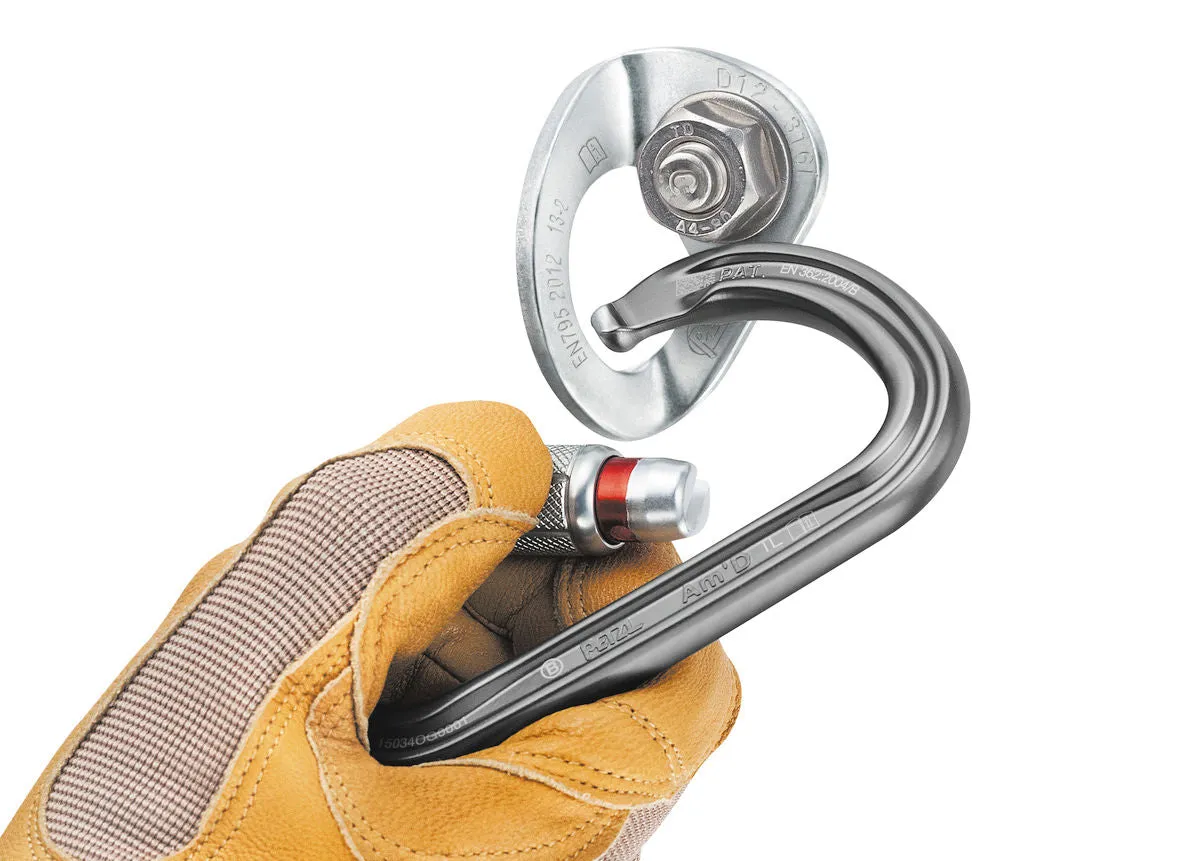

- the wide, ergonomic connection point facilitates carabiner clipping

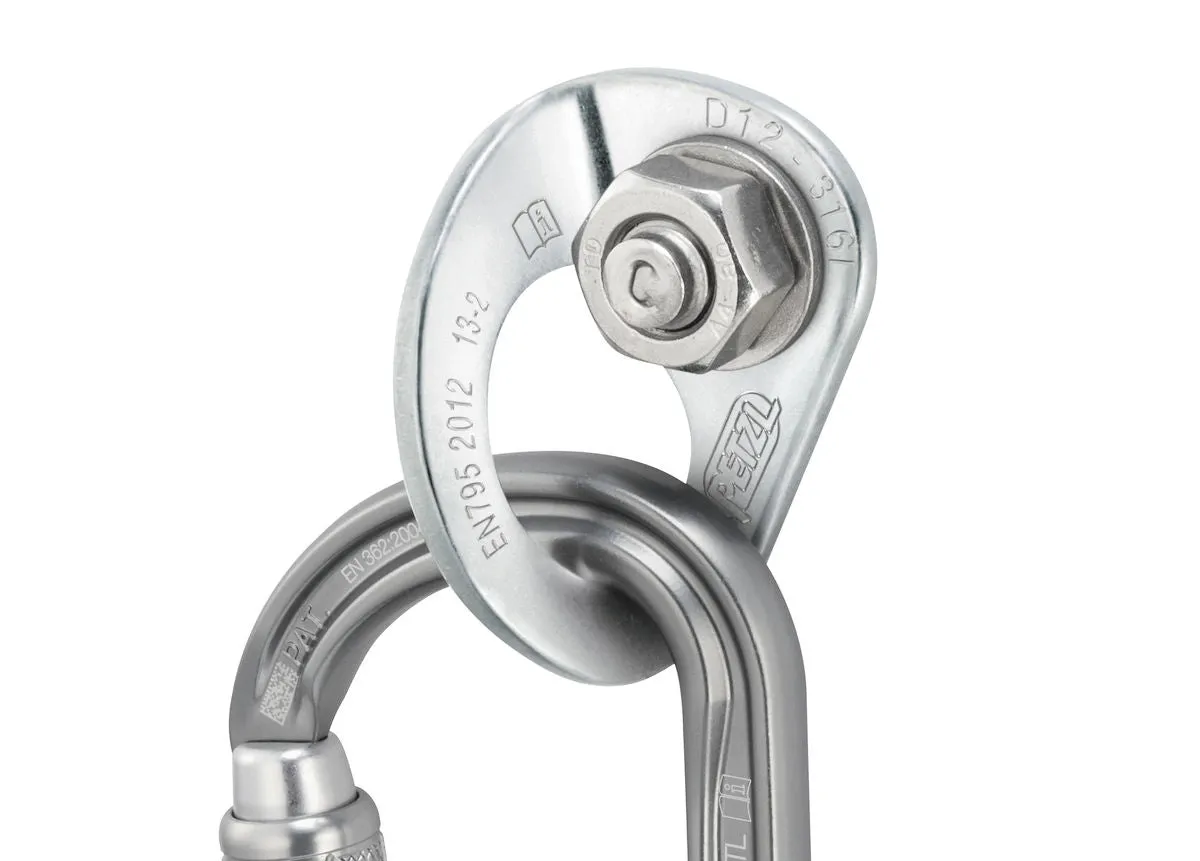

- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Available in two bolt sizes (10 or 12 mm)

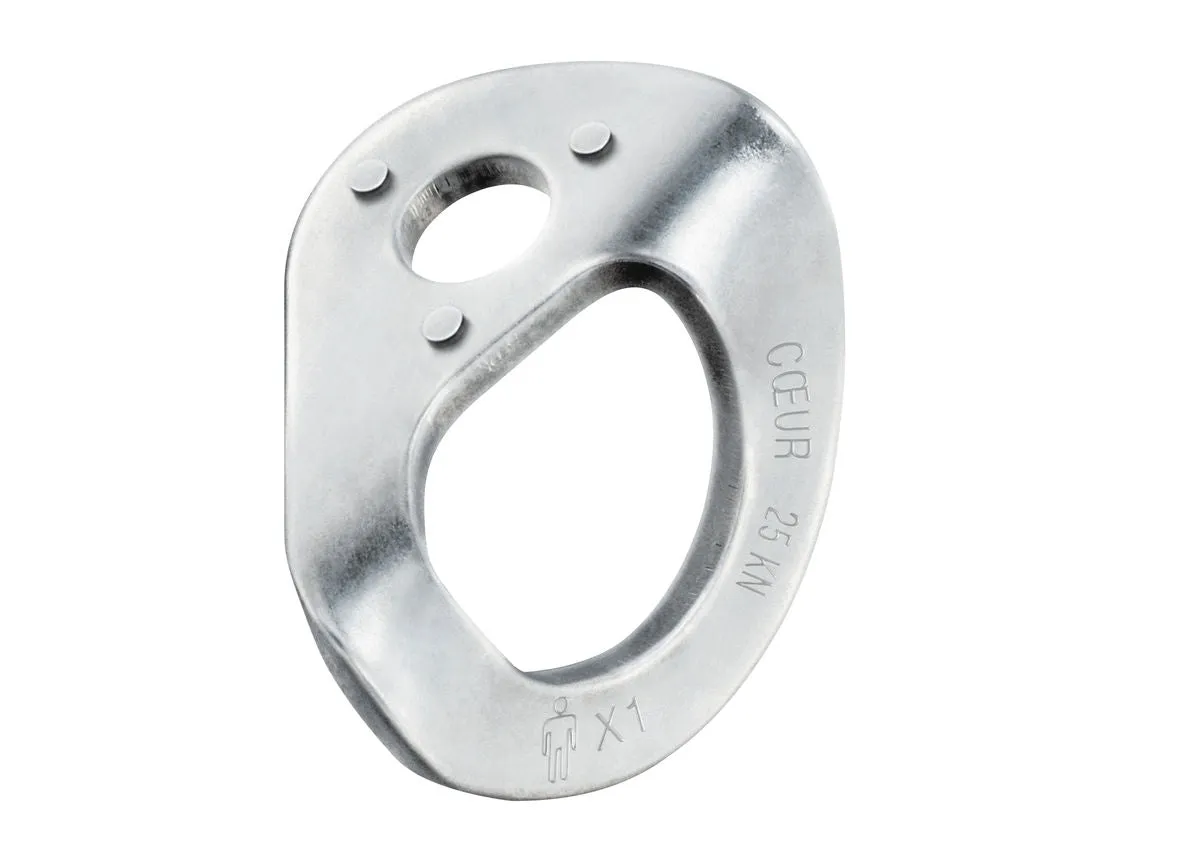

- COEUR STAINLESS hangers, available separately:
- for 10 mm diameter bolt (P36AS 10)
- for 12 mm diameter bolt (P36AS 12)
Specifications
- Material(s): 316L stainless steel
- Certification(s): EN 959
References
| References | P36BS 10 | P36BS 12 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 70 mm | 85 mm |
| Shear strength in 50 MPa concrete | 25 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
| Price | $229.95 | $219.95 |
