High Corrosion Resistance stainless steel anchor for corrosive environments (pack of 20)

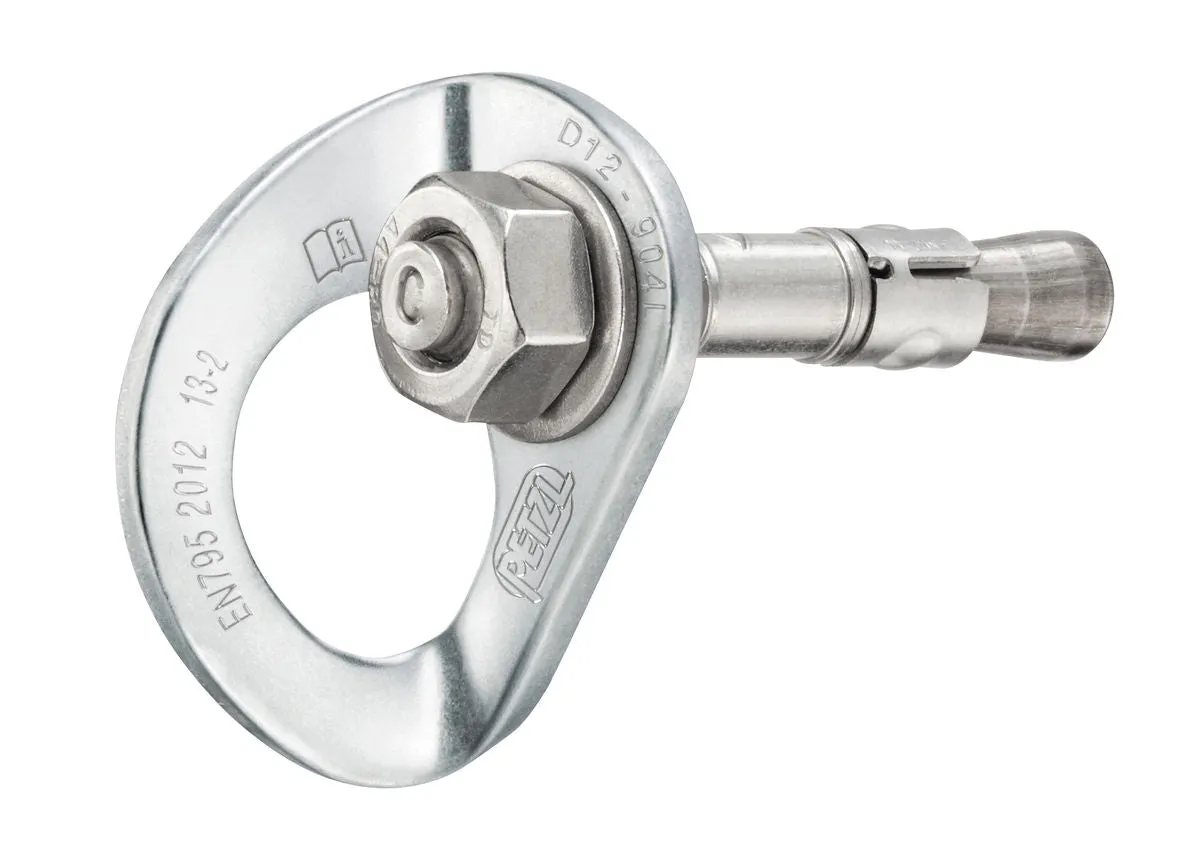

The COEUR BOLT HCR is a High Corrosion Resistance stainless steel anchor made up of a COEUR HCR hanger, a bolt, and a nut. It is designed for use in corrosive environments.
- HCR 904 (High Corrosion Resistance) stainless steel assembly designed for corrosive environments, made up of a COEUR HCR hanger, a bolt, and a nut
- Easy to clip:

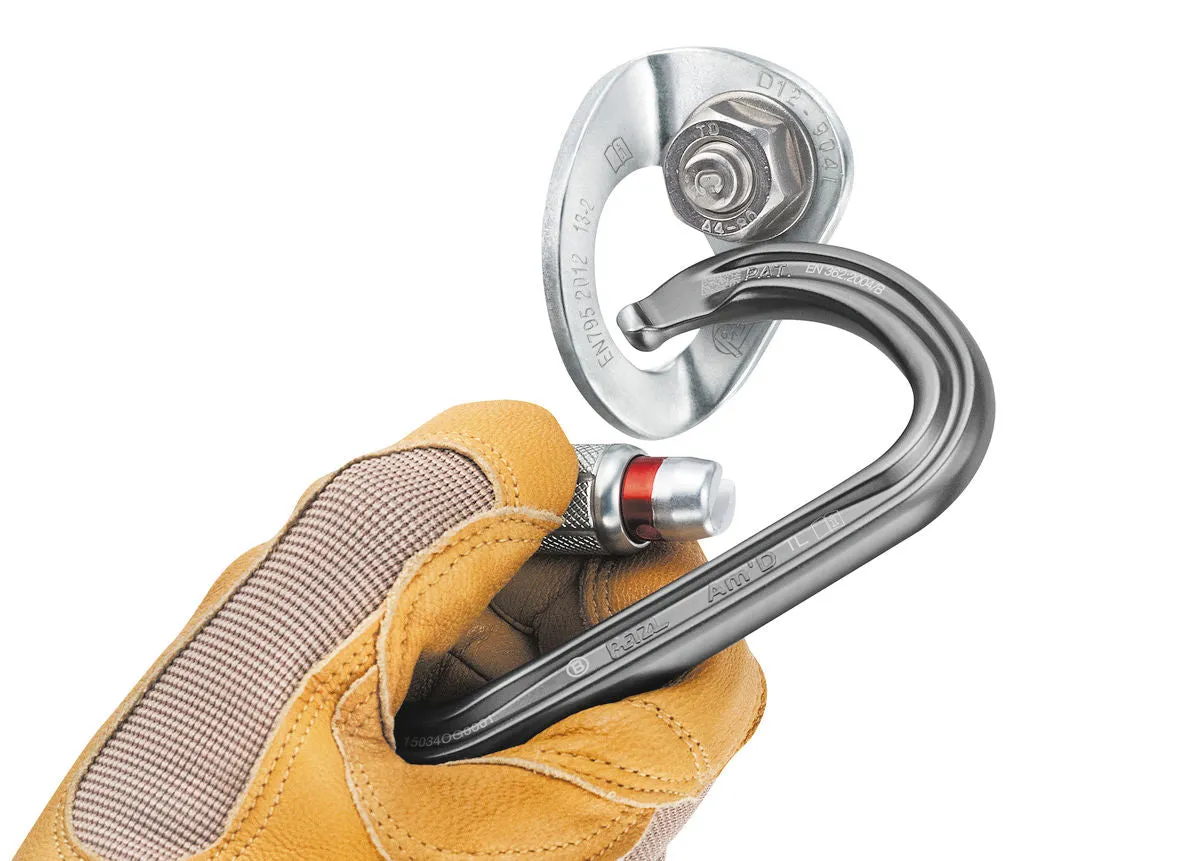

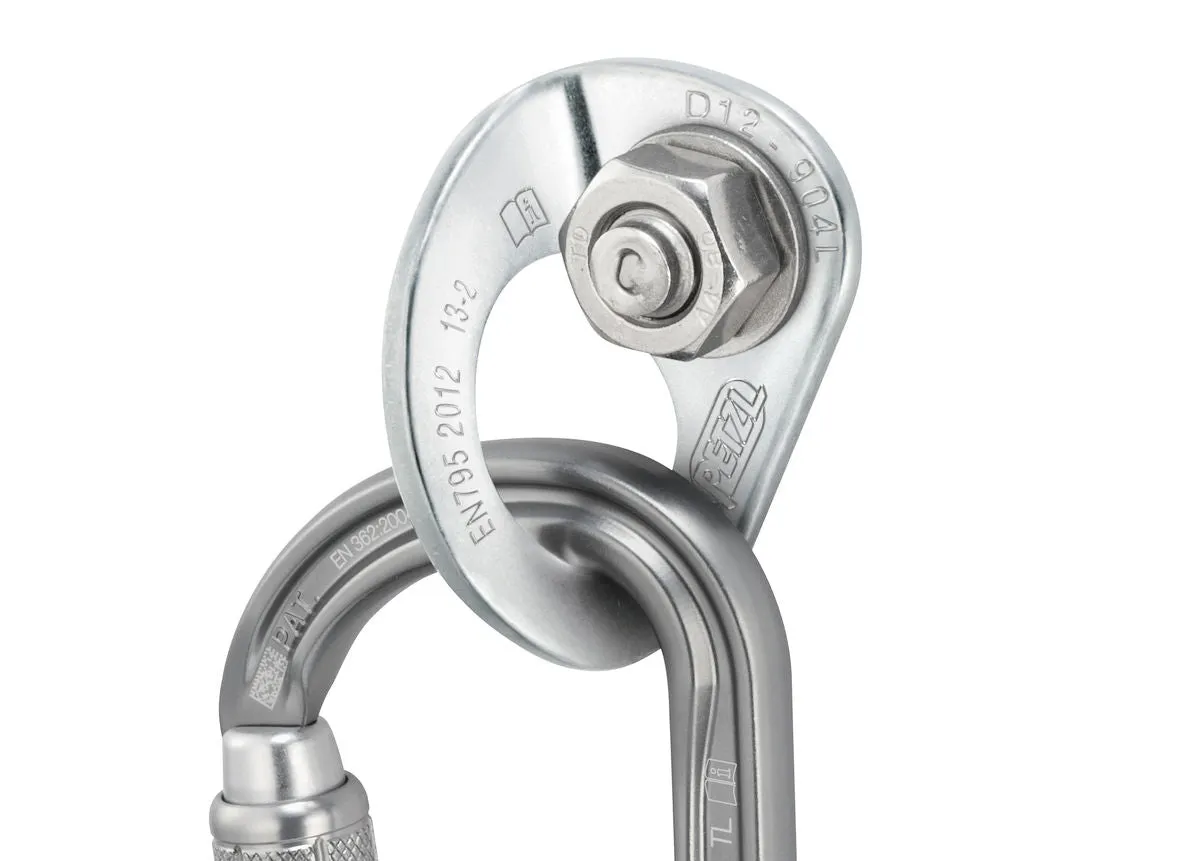

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

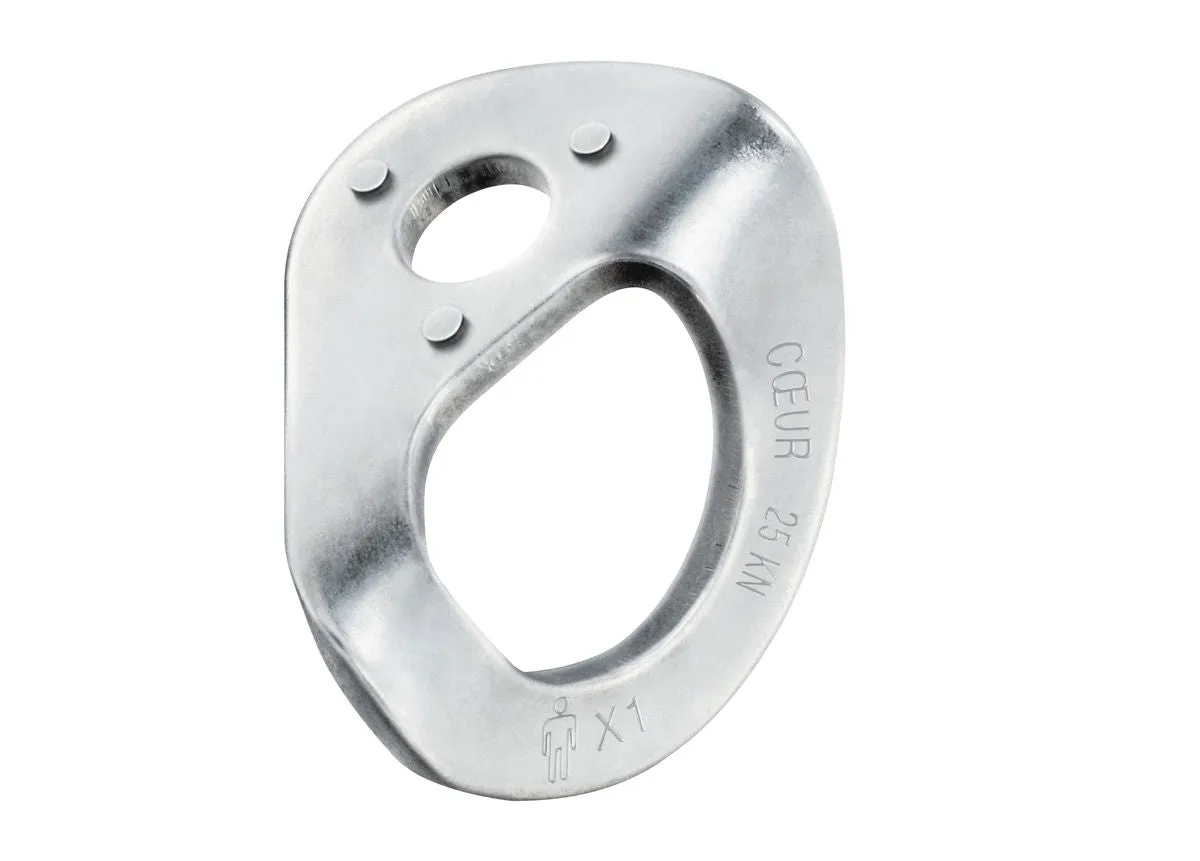

- COEUR HCR hanger for 12 mm diameter bolt (P36AH 12), available separately
Specifications
- Material(s): 904 HCR (High Corrosion Resistance) stainless steel
- Certification(s): EN 959
References
| References | P36BH 12 |
|---|---|
| Diameter | 12 mm |
| Total bolt length | 85 mm |
| Weight | 145 g |
| Drilling diameter | 12 mm |
| Shear strength in 50 MPa concrete | 25 kN |
| Pull-out strength in concrete 50 MPa | 18 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Price | $799.95 |
