- Designed for Behavioral Health Facilities

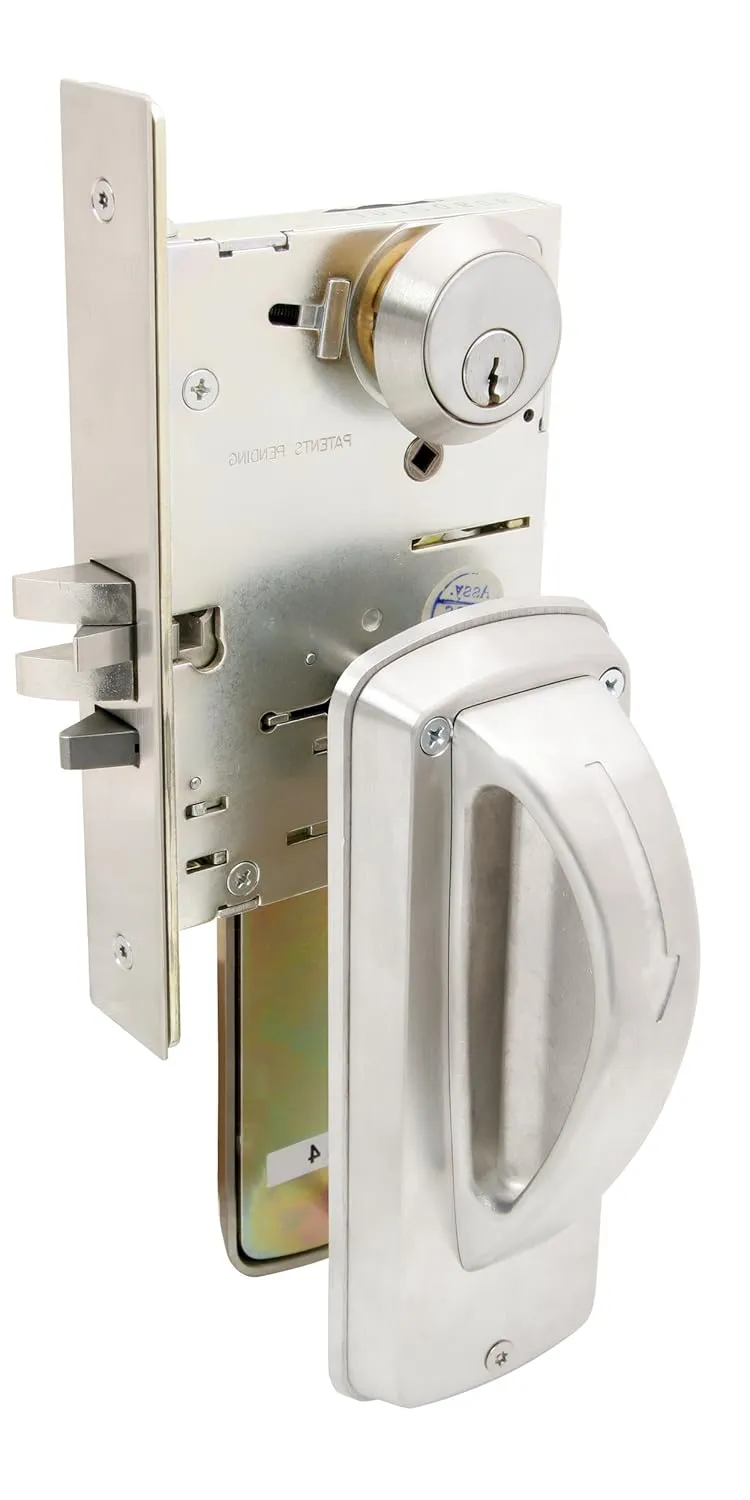

- ANSI/BHMA A156.13-2005 Certified Grade 1 Mortise Lock with Ligature resistant Arch trim
- UL 10C 3-Hour Rated Mortise Body
- Satin Stainless Steel Arch Trim
- 2-3/4" Backset, for 1-3/4" Thick Wood, Steel or Fiber Glass Door, Classroom Function
Application
For facilities housing patient at risk
Door Thickness
1-3/4"
Backset
2-3/4"
Handing
Right Handed
Function
Classroom Function, F-05
Finish
US32D, Satin Stainless steel
Cover Plate
Stainless steel, 7-1/2"x 2-3/4"x 1-2"
Arch Lever
Stainless steel
Faceplate
Stainless steel, 1-1/4" x 8"
Strike
Stainless steel, ASA, 1-1/4" X4-7/8"
Cylinder
Brass core, 6 pins, Schlage "C" keyway, Keyed different, 2 keys per cylinder
Mounting
Through-bolt, tamper resistant mounting screws, for wood, steel or fiber glass door
CODE COMPLIANCE
ANSI/BHMA
Mortise body is ANSI/BHMA A156.13-2005 Grade 1 Certified
UL/ULC
Mortise body is UL/ULC 10C listed 3-hour rating
BAA
Meets requirements of the Buy American Act
ADA
Meets requirements of the Americans with Disabilities Act
.- Package Dimensions : 11.25 x 8.75 x 6 inches; 10 Pounds
- Date First Available : November 18, 2014
- Manufacturer : TownSteel Inc.
