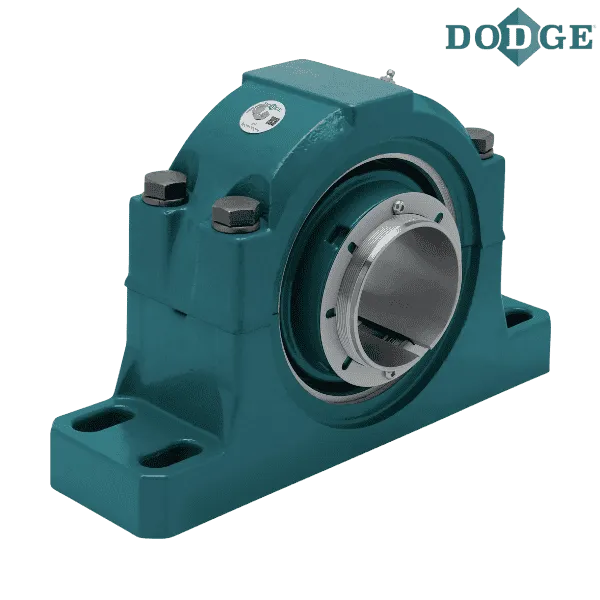

Brand - DODGE
Item Number - DODGE - P4B516-ISAF-070MLE
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (mm) - 70
Part Name - P4B516-ISAF-070MLE
SAF Series - 516

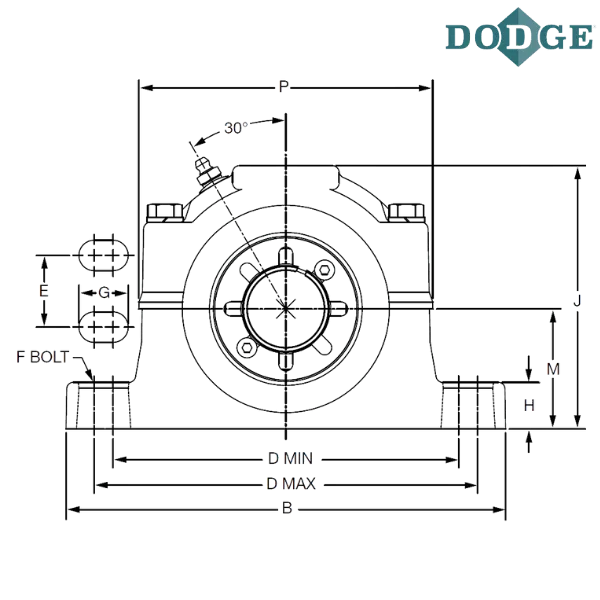

Length Through Bore (A) mm - 88.9
Overall Length (B) mm - 319.79
Width (C) mm - 88.9
Bolt to Bolt Minimum Distance (D min) mm - 250.95
Bolt to Bolt Maximum Distance (D max) mm - 279.4
E (mm) - 54.1
F-Bolt Diameter - M16
G (mm) - 33.27
H (mm) - 25.4
Overall Height (J) mm - 190.5
L (mm) - 108.71
Base to Center Height (M) mm - 88.9
P (mm) - 211.07
S (mm) - 54.86
Expansion (X) mm - 5.95
Y (mm) - 0.76
Z (mm) - 88.14
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric

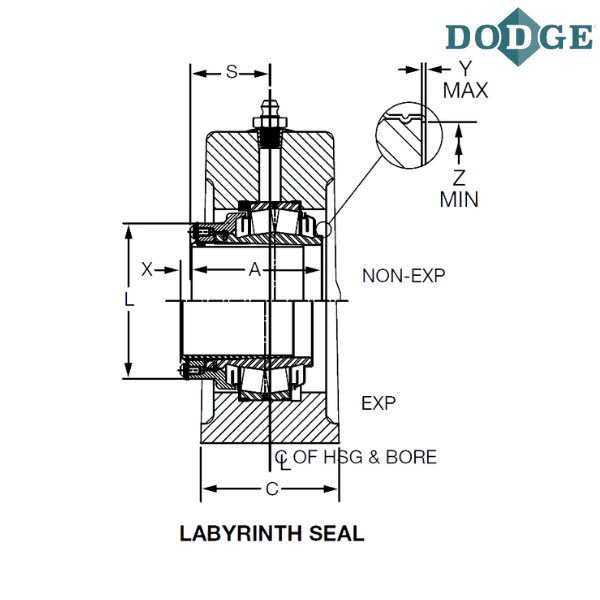

L - Labyrinth Metallic Seal
E - Expansion

** Images are representation purposes only
