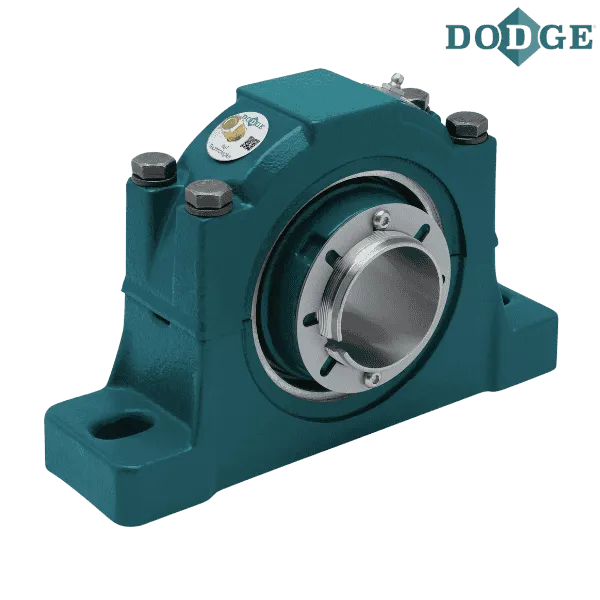

Brand - DODGE
Item Number - DODGE - P2B515-ISAF-060MLE
Category - IMPERIAL ISAF 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (mm) - 60
Part Name - P2B515-ISAF-060MLE
SAF Series - 515
Length Through Bore (A) mm - 86.87
Overall Length (B) mm - 282.7
Width (C) mm - 79.5
Bolt to Bolt Minimum Distance (D min) mm - 219.2
Bolt to Bolt Maximum Distance (D max) mm - 244.6
F-Bolt Diameter - M16
G (mm) - 28.7
H (mm) - 31.75
Overall Height (J) mm - 174.24
L (mm) - 98.04
Base to Center Height (M) mm - 82.55
P (mm) - 188.47
S (mm) - 52.32
Expansion (X) mm - 7.94
Y (mm) - 0.76
Z (mm) - 74.68
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal
E - Expansion

** Images are representation purposes only
