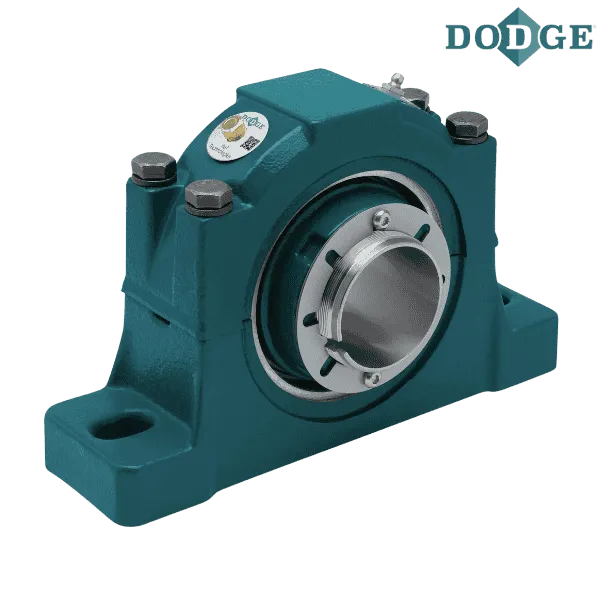

Brand - DODGE
Item Number - DODGE - P2B509-ISAF-040MLE
Category - IMPERIAL ISAF 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (mm) - 40
Part Name - P2B509-ISAF-040MLE
SAF Series - 509

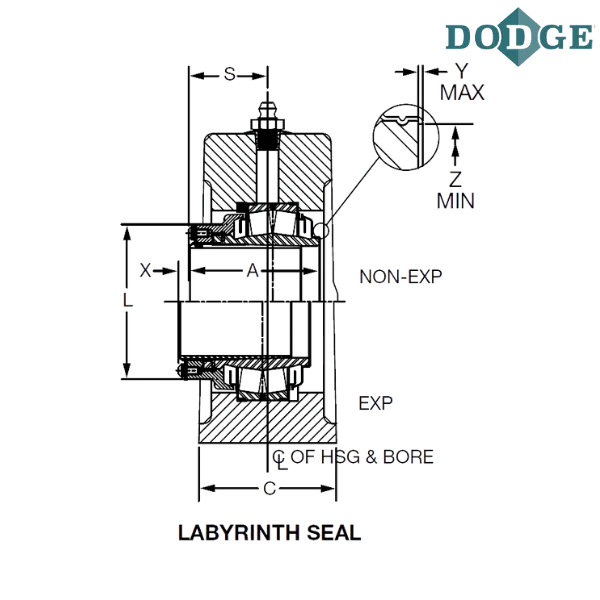

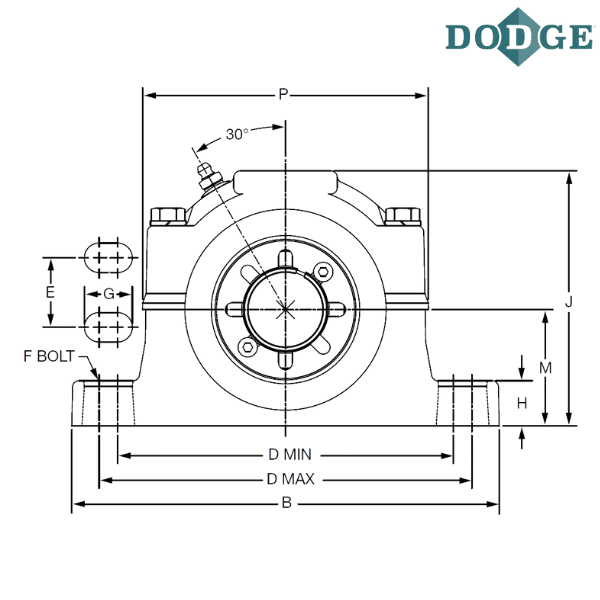

Length Through Bore (A) mm - 66.8
Overall Length (B) mm - 209.55
Width (C) mm - 55.63
Bolt to Bolt Minimum Distance (D min) mm - 158.75
Bolt to Bolt Maximum Distance (D max) mm - 177.8
F-Bolt Diameter - M12
G (mm) - 23.88
H (mm) - 22.35
Overall Height (J) mm - 125.48
L (mm) - 74.17
Base to Center Height (M) mm - 57.15
P (mm) - 140.21
S (mm) - 5.56
Expansion (X) mm - 5.56
Y (mm) - 0.51
Z (mm) - 45.72
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal
E - Expansion

** Images are representation purposes only
