Name: CNC V Brake Set, Bicycle Linear Pull V Brakes for Front/Rear Wheel, Long Arm 110mm, Black …
SKU: 250939

CNC bike V brake Set Forged alloy construction

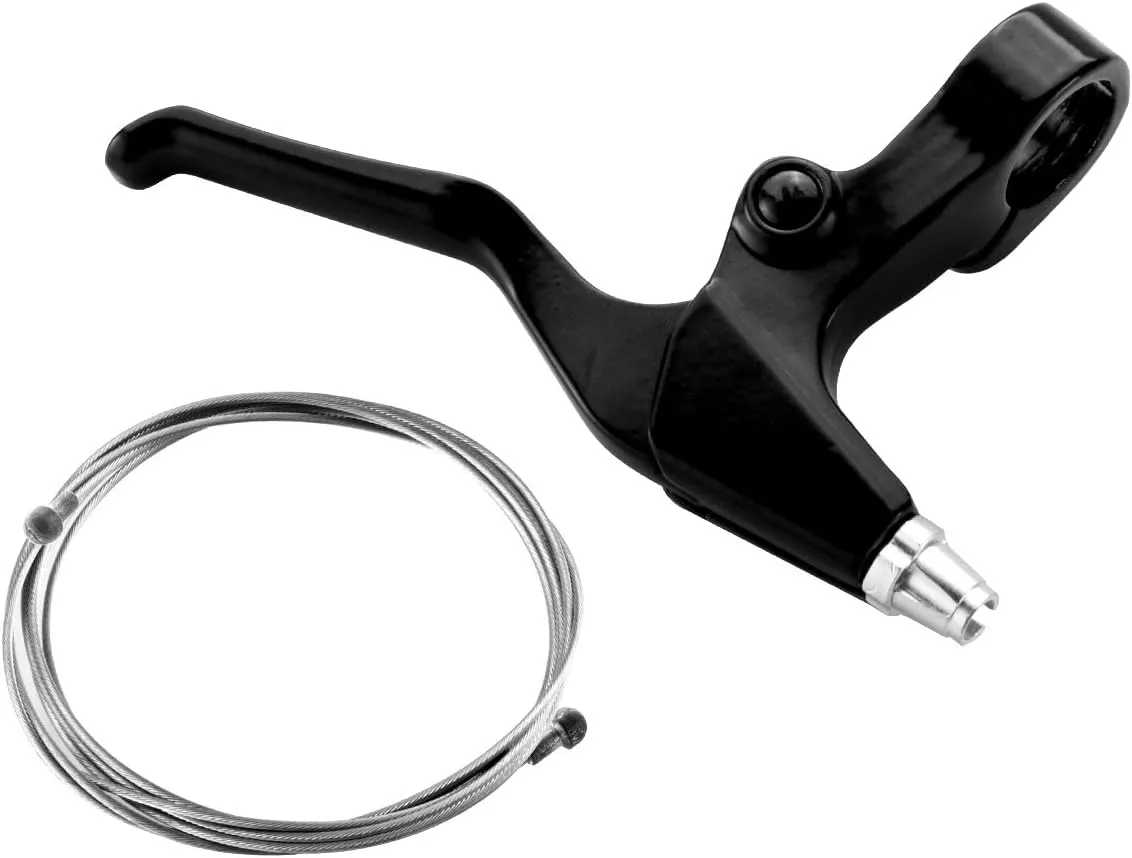

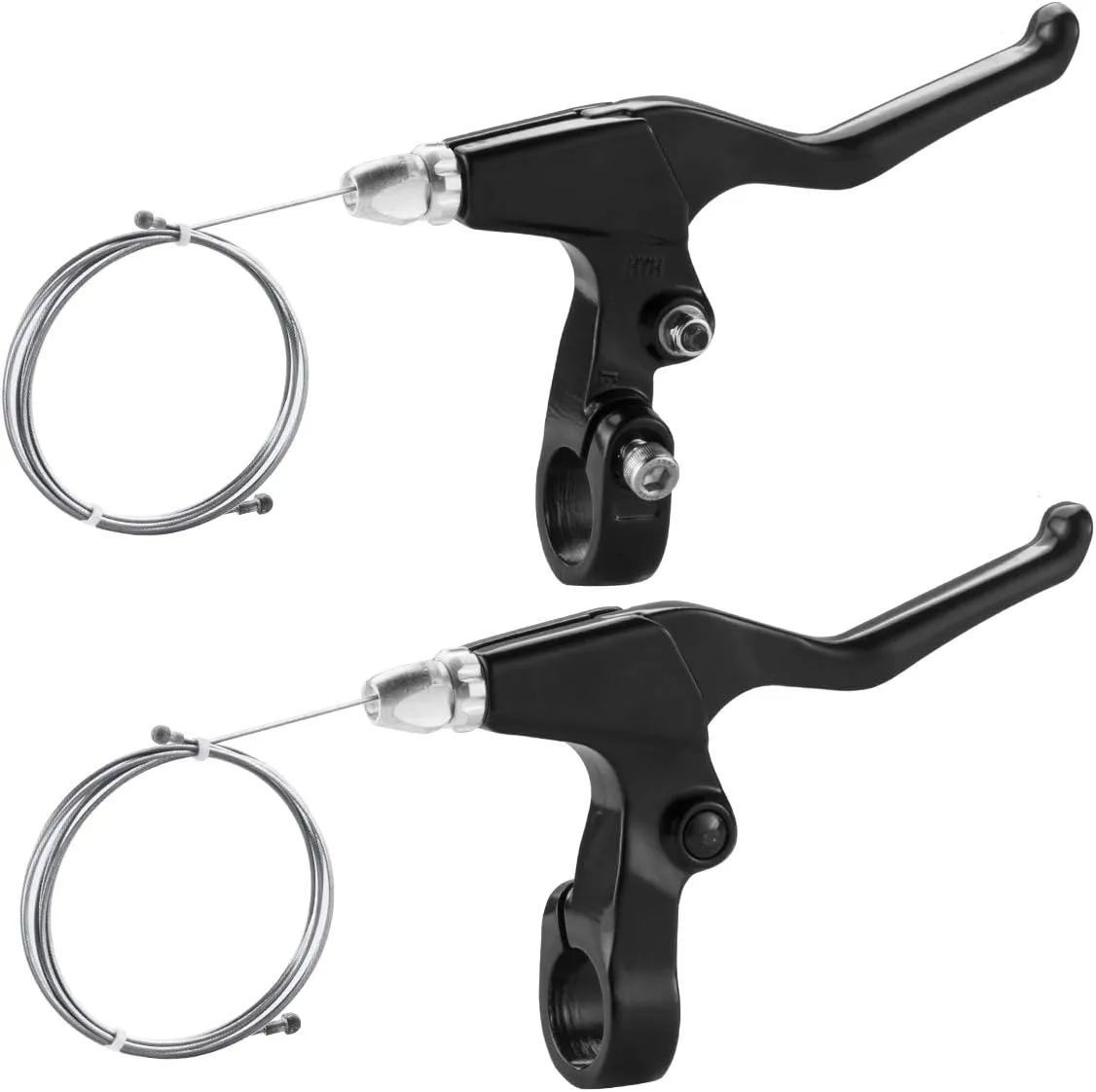

Coil springs design aims for rim brakes tension adjustment，extended 4-finger brake levers are compatible with V-brakes and cantilever brakes.
CNC MTB brake levers are only suitable for bike handles in 22mm-22.2mm diameter，Arm Length: 110mm.
1 pair of high quality 70mm(Length) V brake pads come with the direct-pull cantilever Brakes set.
They are universal V-brakes compatible with both front/rear wheels of MTB/BMX/mountain/road/folding/hybrid bike, especially for most small wheel bicycles such as 24 inches or smaller ones.

Specification:
Material: Forged Aluminum Arms，Brake Lever, Stainless steelCable，steel mounting bolts with washer, rubber boot, Aluminum noodle, steel tension adjuster spring bolt.
Arm : Length110mm，Pivot Diameter 8mm
Brake Lever Length * Height: Approx.160 × 92mm / 6.3 × 3.6in
Handle Length: Approx. 100mm
Clamp Inner Diameter: Approx. 22.2mm/0.87in Cable Size: 5mm ×1700mm Mounting bolt size: M6 * 1.8mm(TL); washer thickness: about 1mm.
Brake Pad Length: 55mm
Weight: Approx. 261 grams (Left Right).
Color: Blue Black (as picture shown).
Feature: 1.Extended long ergonomic brake lever for Mountain Bike, BMX, Road Bicycle, MTB, Folding, City, commuter, Fixie etc. 2.Bike handles in 22mm-22.2mm diameter. 3.One spring tension adjuster on each arm.
4.Nearly compatible with all types of V-brake systems.
5.Include a pair of V brake pads set. 6.Easy installation and adjustment.
Package List:

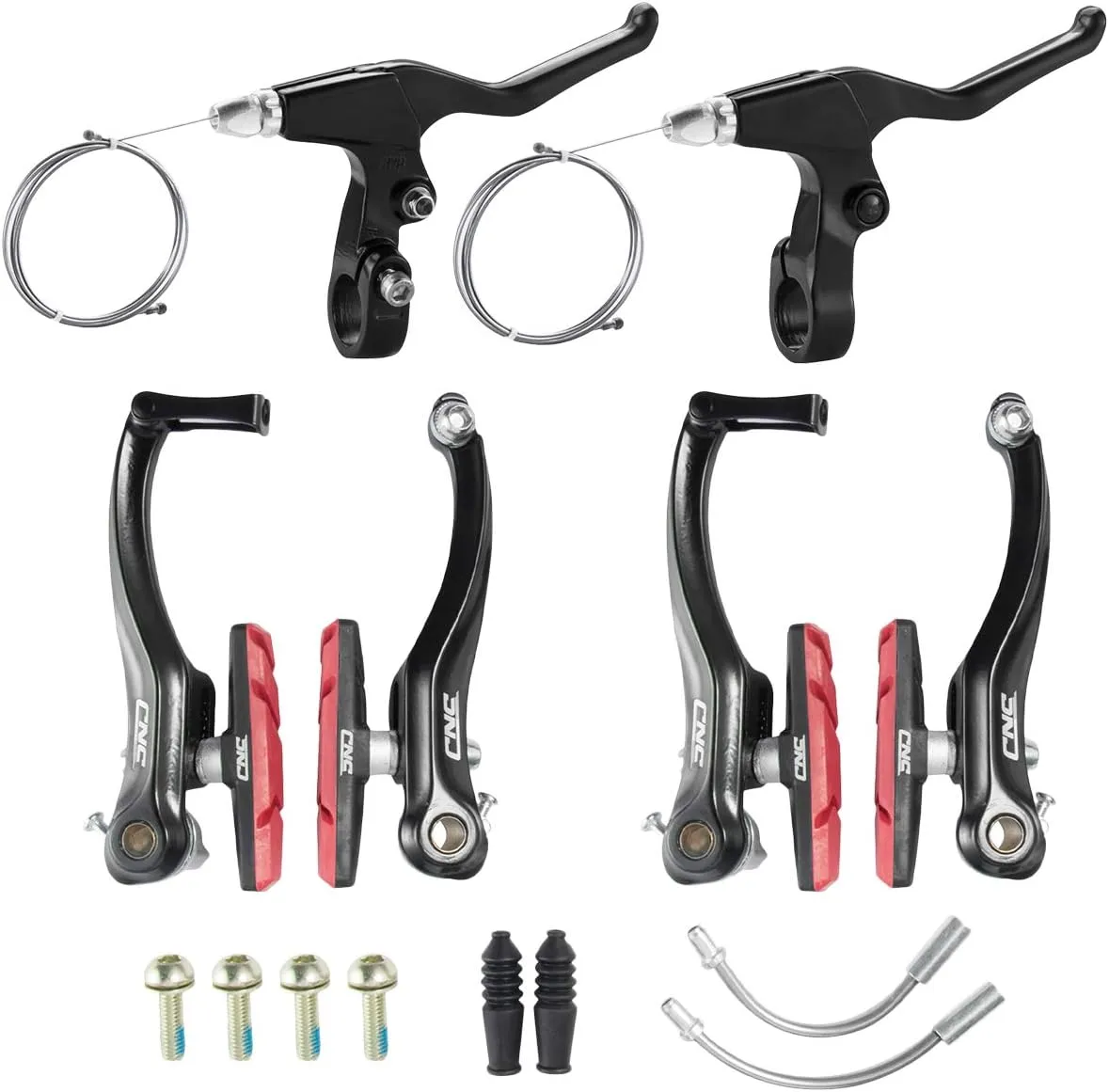

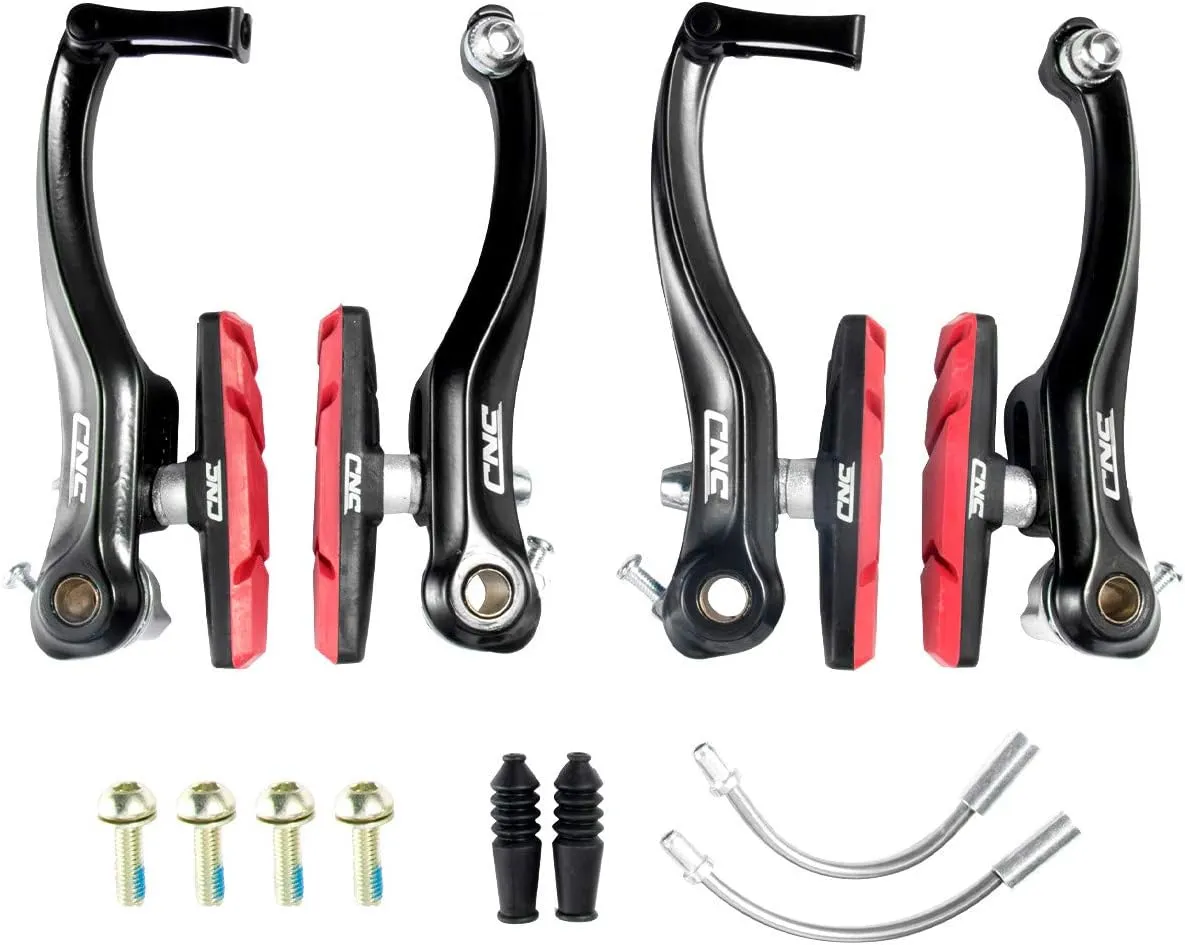

1 pair left and right bike brake levers, 2 pcs brake cables.(No cable housing included) 1 pair of left and right V brake calipers for one wheel
1 * 90°bend cable noodle
1 * 110°bend cable noodle
2 * rubber boot
4 * anchor bolts

Installation consideration: 1.Tighten the mounting bolt to the fixing holes of the fork/frame body.
2.The brake cables will pass through the wire noodle in turn and through the rubber boot to fix the brake wire tube in position.
3.Fix the brake cable on the fixed bolt(not too tight), then install the brake arm, adjust the distance of the brake arms. When everything is right, the brake cable will be firmly secure.
Attention: 1.Please make sure your bike has a mounting hole centered on the top of the front fork or rear frame before purchasing.
2.Brake Lever Only used as brake levers, not fit for shifter.
