Brand - DODGE

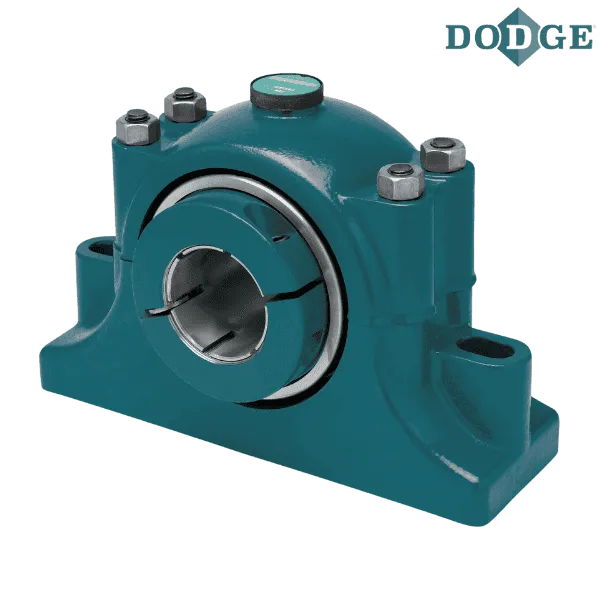

Item Number - 087187 DODGE - P2B-C-307E
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 3.4375
Part Name - P2B-C-307E
Approximate Weight (lbs) - 131

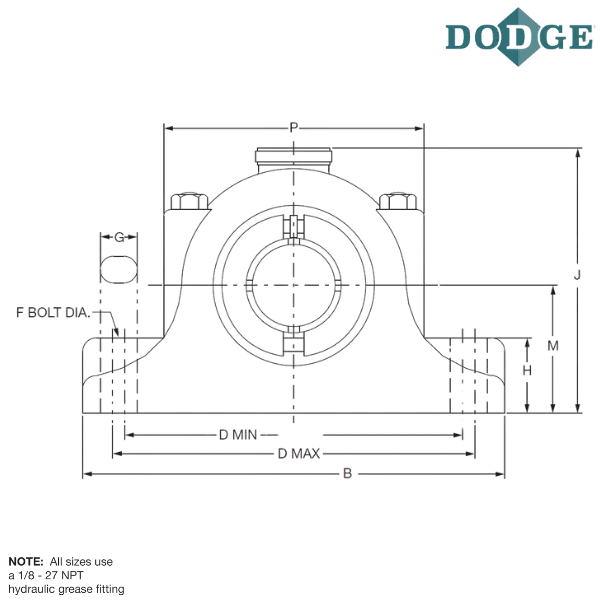

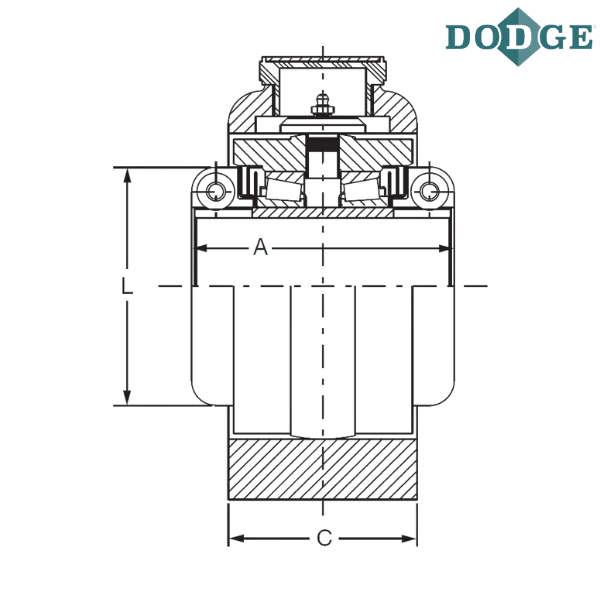

Length Through Bore (A) inch - 7
Overall Length (B*) inch - 16.75
C * (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 13.75
Bolt to Bolt Maximum Distance (D max) inch - 14.25
F-Bolt Diameter (inch) - 0.875
G * (inch) - 1.50
H * (inch) - 4.00
Overall Height (J) inch - 11.38
L *** (inch) - 5.94
Base to Center Height (M) inch - 5.50
P * (inch) - 11.63
EXP ** (inch) - 0.75
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C
E - Expansion Type Bearing

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

**** Images are for representation purposes only
