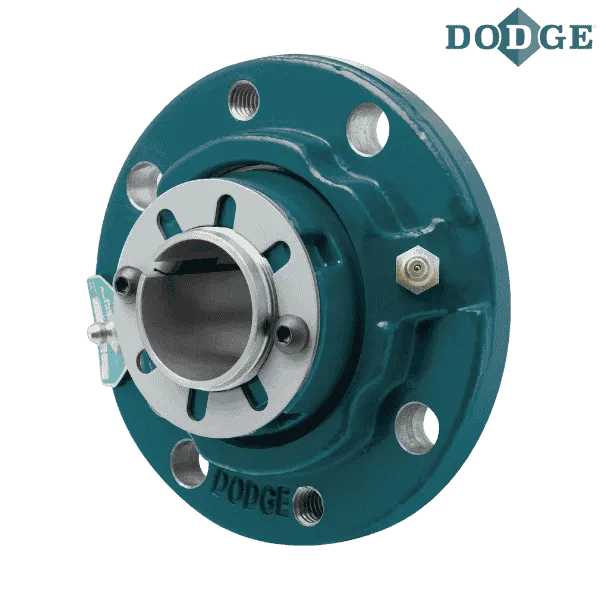

Brand - DODGE
Item Number - 072375 DODGE - SFCN-IP-300RE
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3
Description - SFCN-IP-300RE

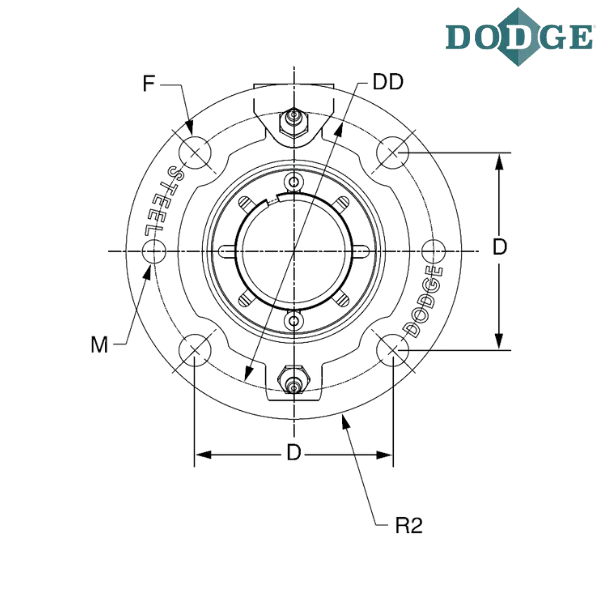

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 8.75
C (inch) - 2.47
Bolt to Bolt Distance (D) inch - 5.3
Bolt Circle (DD) inch - 7.5
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.81
Pilot Diameter (K)* inch - 6.375
L (inch) - 4.2
M (inch) - 5/8 - 11
N (inch) - 3.6
Pilot Depth (Q) inch - 1.25
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* 0.000” / -0.002”

** Images are representation purposes only
