Brand - DODGE
Item Number - 072368 DODGE - SFCN-IP-203RE

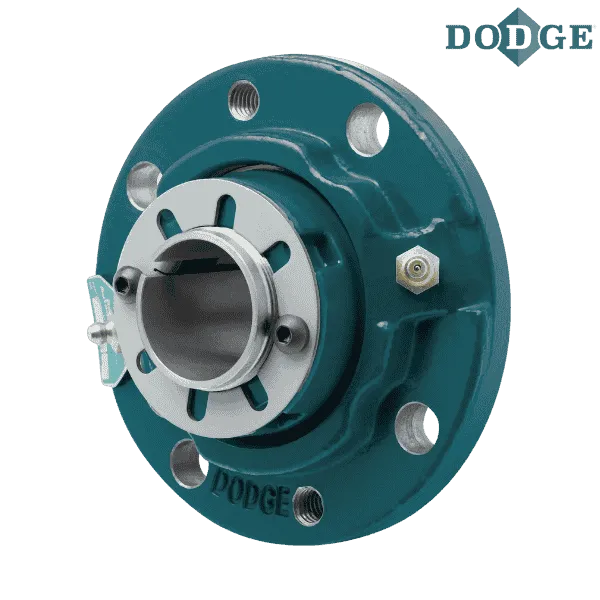

Category - Steel IMPERIAL-HD Narrow Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.1875
Description - SFCN-IP-203RE

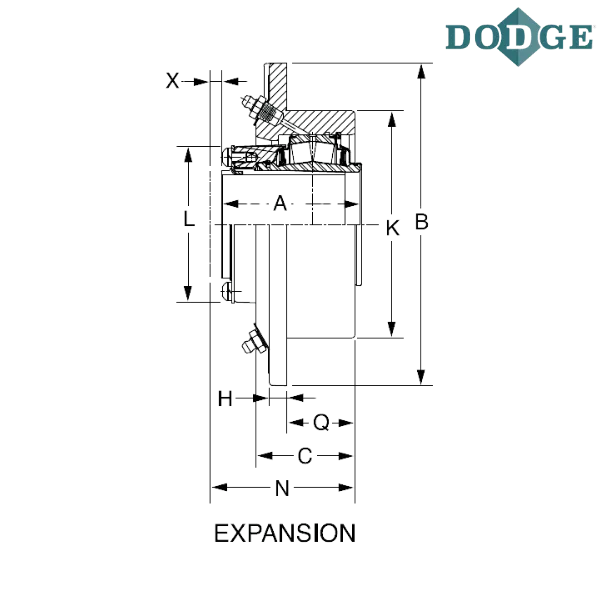

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 7.3
C (inch) - 2.22

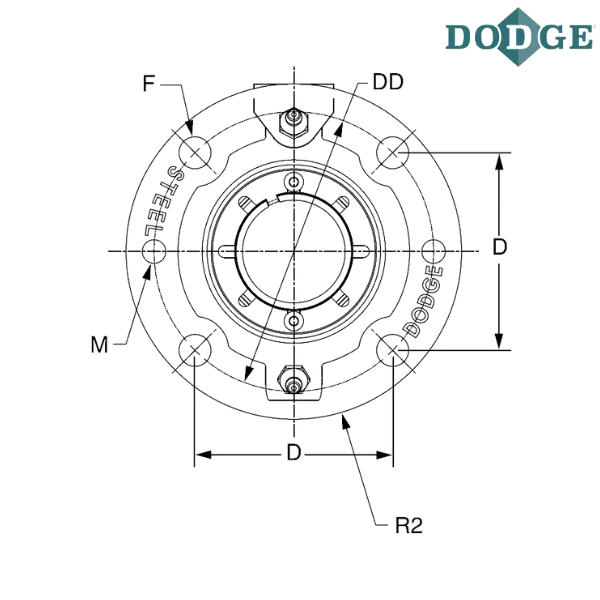

Bolt to Bolt Distance (D) inch - 4.24
Bolt Circle (DD) inch - 6
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.58
Pilot Diameter (K)* inch - 5
L (inch) - 3.5
M (inch) - 1/2-13
N (inch) - 3.19
Pilot Depth (Q) inch - 1.13
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* 0.000” / -0.002”

** Images are representation purposes only
