Brand - DODGE
Item Number - 072359 DODGE - SFCN-IP-400R
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4
Description - SFCN-IP-400R

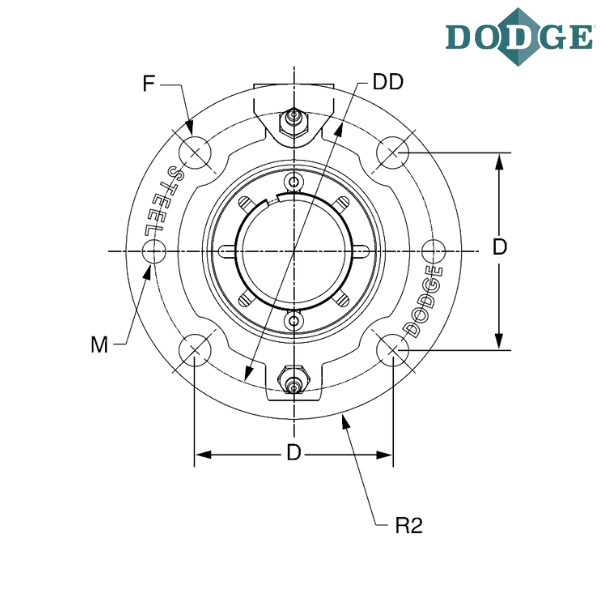

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 10.88
C (inch) - 3.61
Bolt to Bolt Distance (D) inch - 6.63
Bolt Circle (DD) inch - 9.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.82
H (inch) - 1.01
Pilot Diameter (K)* inch - 8.125
L (inch) - 5.45
M (inch) - 3/4 - 10
N (inch) - 4.95
P (inch) - 1.88
Pilot Depth (Q) inch - 2.13
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* 0.000” / -0.002”

** Images are representation purposes only
