Brand - DODGE
Item Number - 072352 DODGE - SFCN-IP-303R
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.1875
Description - SFCN-IP-303R
Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 10.34
C (inch) - 2.79

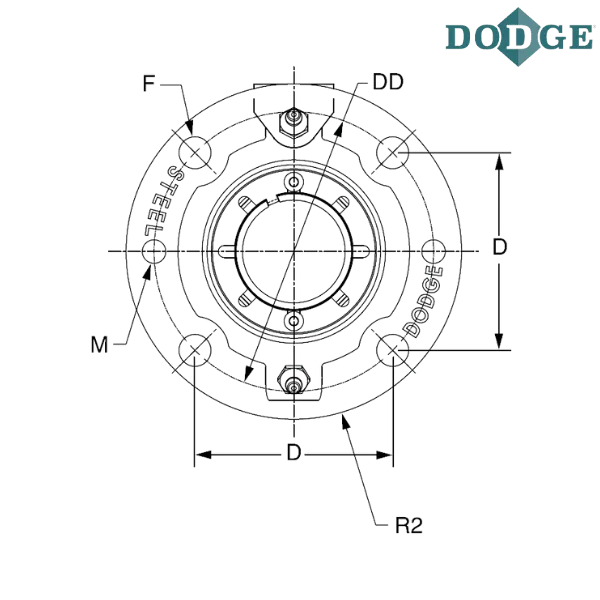

Bolt to Bolt Distance (D) inch - 6.1
Bolt Circle (DD) inch - 8.63
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.88
H (inch) - 1
Pilot Diameter (K)* inch - 7.375
L (inch) - 5
M (inch) - 3/4 - 10
N (inch) - 4.19
P (inch) - 1.3
Pilot Depth (Q) inch - 1.31
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
* 0.000” / -0.002”

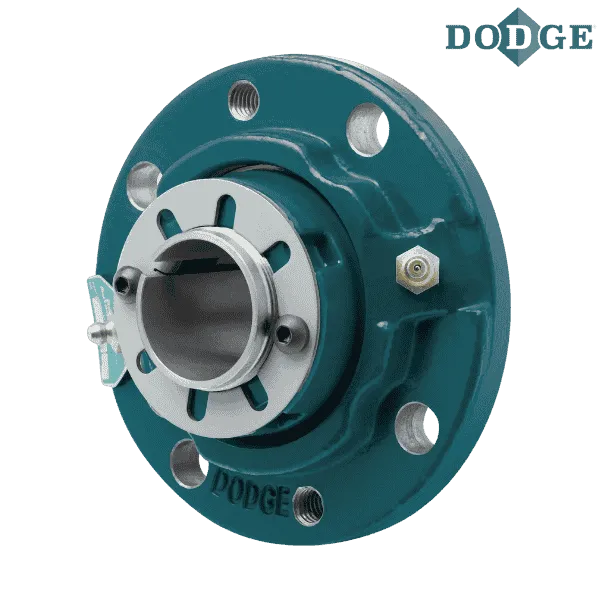

** Images are representation purposes only
