Brand - DODGE
Item Number - 072290 DODGE - SFC-IP-207R
Category - Steel IMPERIAL-HD Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.4375
Description - SFC-IP-207R

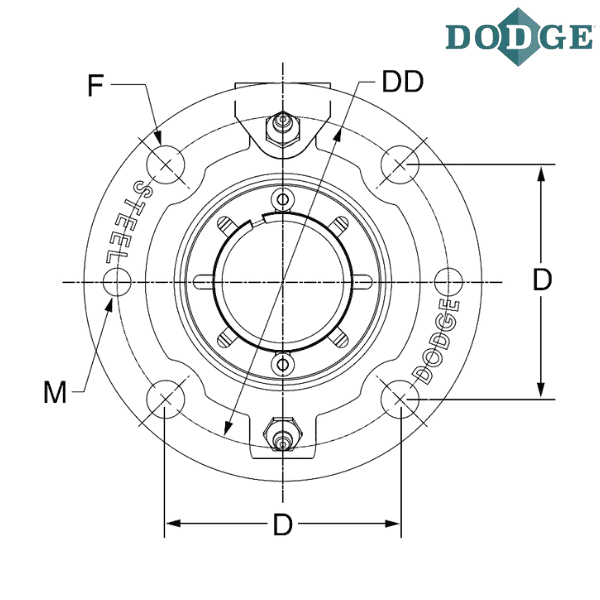

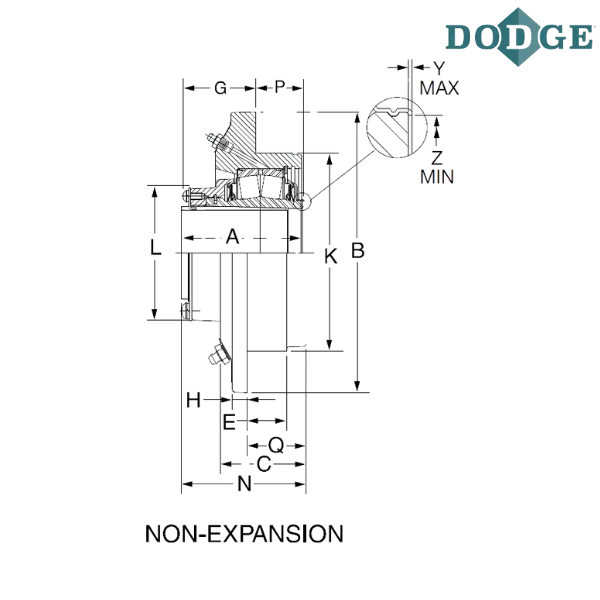

Length Through Bore (A) inch - 3.43
Overall Length (B) inch - 7.63
C (inch) - 2.66
Bolt to Bolt Distance (D) inch - 4.6
Bolt Circle (DD) inch - 6.5
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.86
H (inch) - 0.5
Pilot Diameter (K)* inch - 5.5
L (inch) - 3.8
M (inch) - 1/2-13
N (inch) - 3.61
P (inch) - 1.57
Q (inch) - 1.75
Y (inch) - 0.03
Z (inch) - 2.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* 0.000” / -0.002”

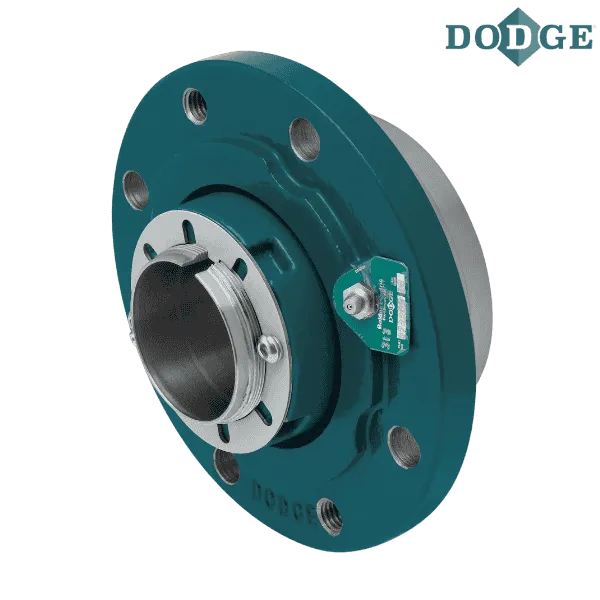

** Images are representation purposes only
