Brand - DODGE
Item Number - 072212 DODGE - SF4S-IP-206RE

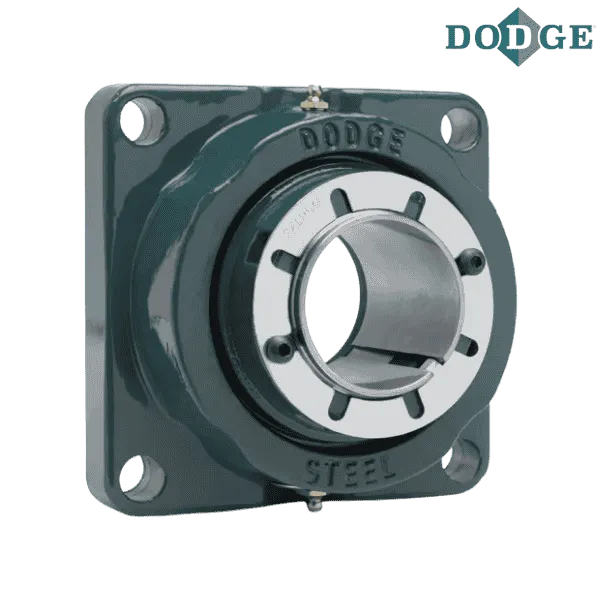

Category - Steel IMPERIAL-HD Flange - 4 Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.375
Description - SF4S-IP-206RE

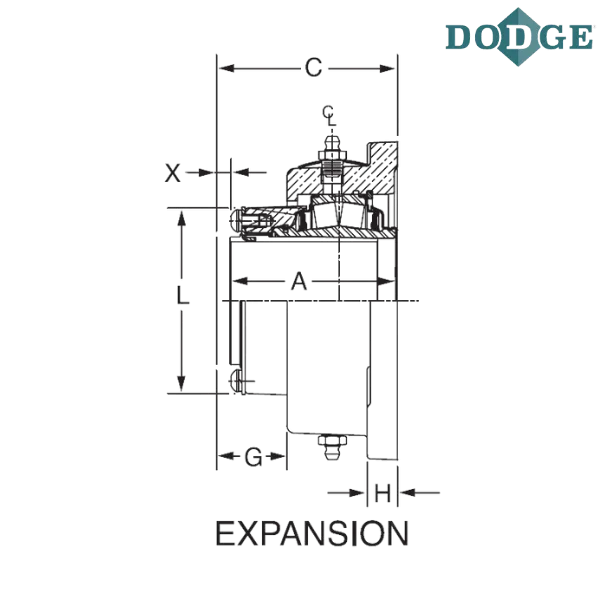

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 6.18
C (inch) - 3.57

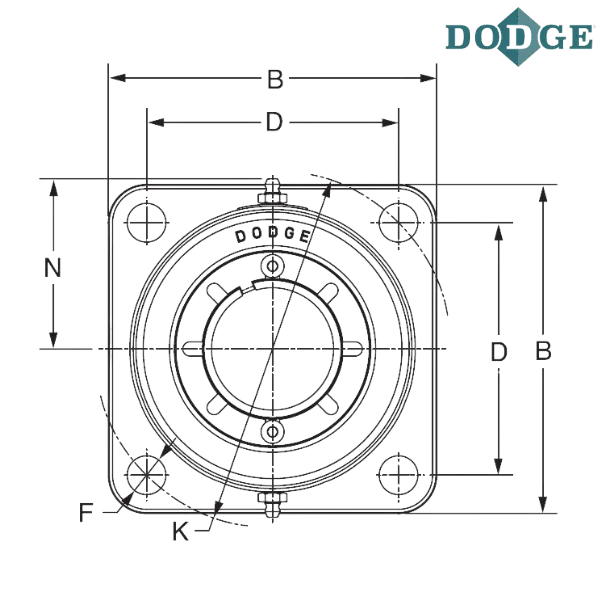

Bolt to Bolt Distance (D) inch - 4.77
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1
J (inch) - 5.63
K (inch) - 6.75
L (inch) - 3.8
N (inch) - 3.24
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
