Brand - DODGE
Item Number - 072190 DODGE - SF4S-IP-300R
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3
Description - SF4S-IP-300R

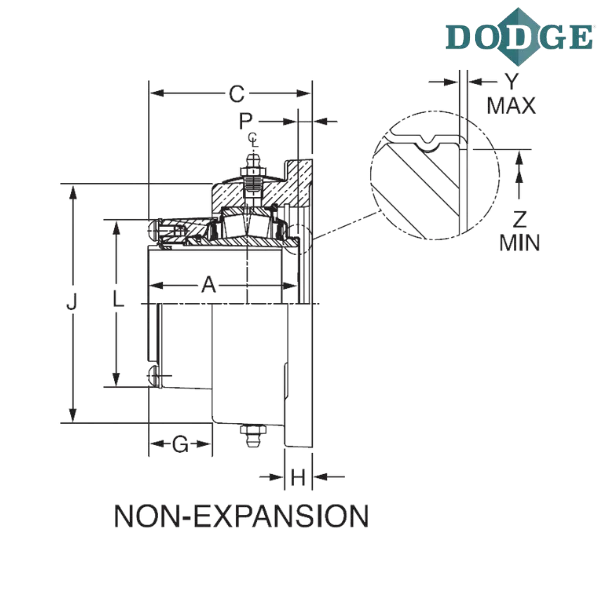

Length Through Bore (A) inch - 3.5

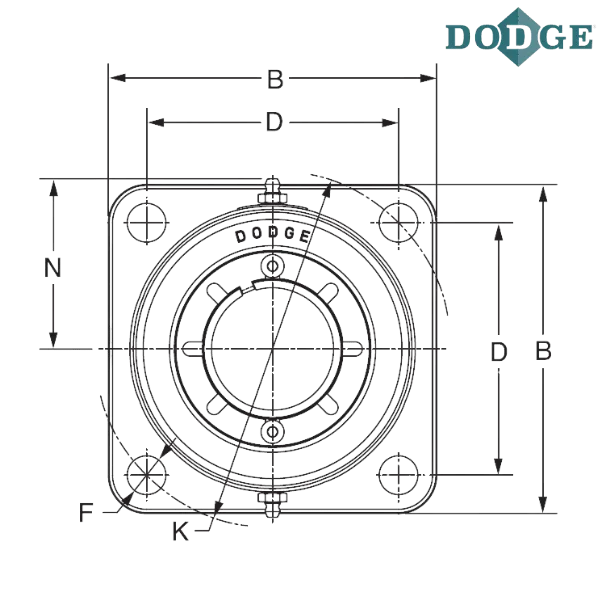

Overall Length (B) inch - 7.18
C (inch) - 3.77
Bolt to Bolt Distance (D) inch - 5.57
Bolt Diameter (F) inch - 0.75
G (inch) - 0.94
H (inch) - 1.06
J (inch) - 6.51
K (inch) - 7.88
L (inch) - 4.2
N (inch) - 3.67
P (inch) - 0.27
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

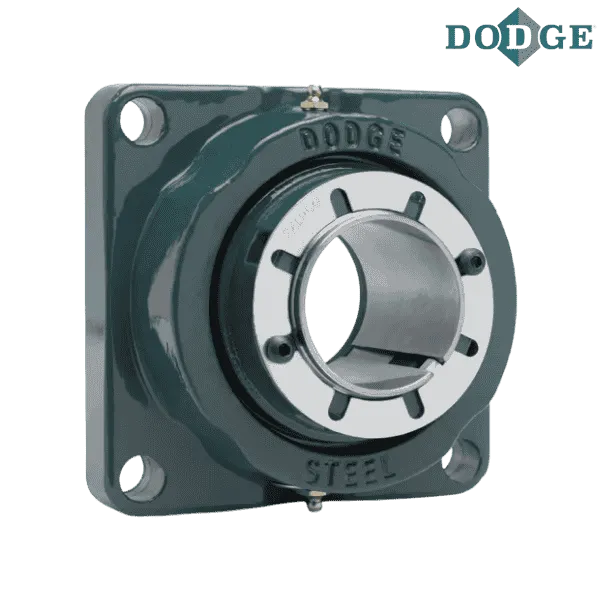

** Images are representation purposes only
