Brand - DODGE
Item Number - 072178 DODGE - SF4S-IP-112R
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.75
Description - SF4S-IP-112R

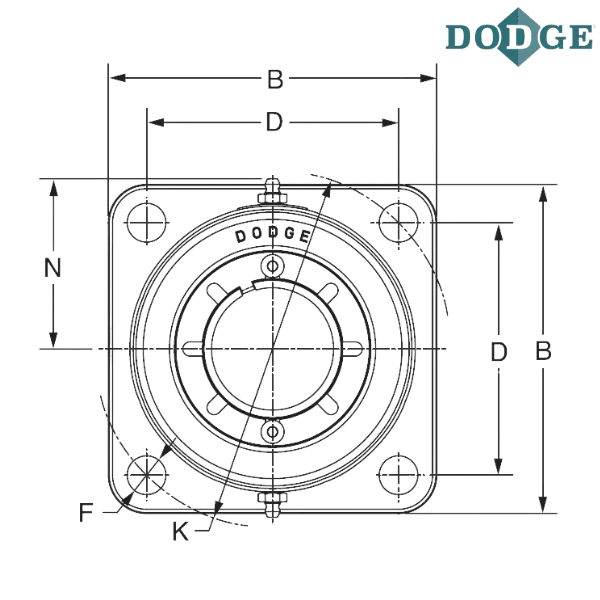

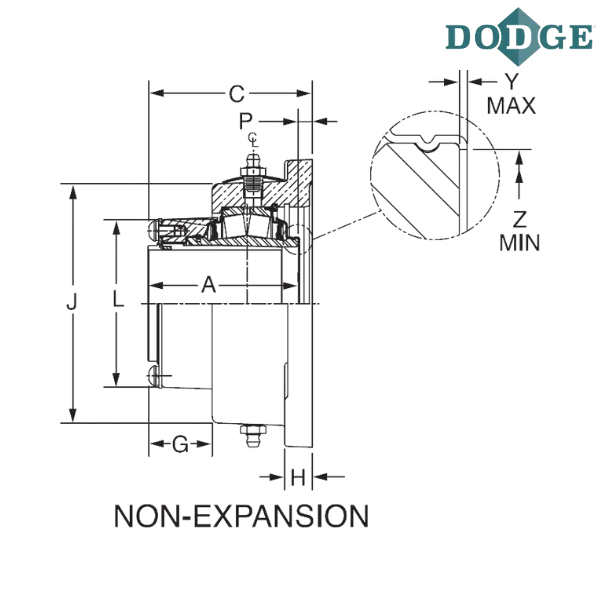

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 5.37
C (inch) - 3.01
Bolt to Bolt Distance (D) inch - 3.89
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 0.88
J (inch) - 4.41
K (inch) - 5.5
L (inch) - 3
N (inch) - 2.62
P (inch) - 0.2
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
