Brand - DODGE
Item Number - 071834 DODGE - SP4B-S2-215RE
Category - 4-Bolt Steel S-2000-HD Pillow Block (Expansion)
Shaft Size (inch) - 2.9375
Description - SP4B-S2-215RE

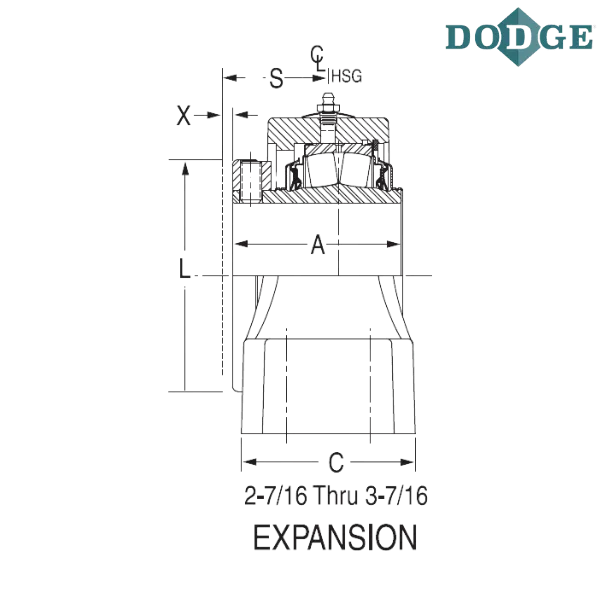

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 10.44
Width (C) inch - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 7.6
Bolt to Bolt Maximum Distance (D max) inch - 9.1
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.43
H (inch) - 1.88
Overall Height (J) inch - 6.44
L (inch) - 4.7
Base to Center Height (M) inch - 3
S (inch) - 2.46
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
