Brand - DODGE
Item Number - 071734 DODGE - SP4B-IP-308RE

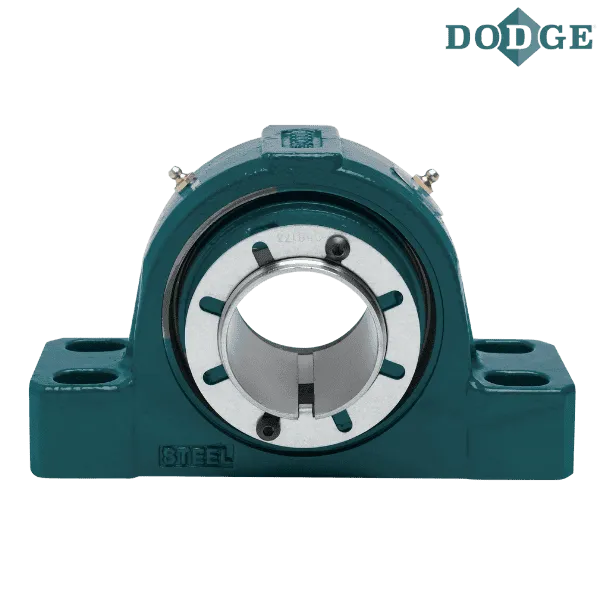

Category - Steel IMPERIAL-HD Pillow Block 4-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.5
Description - SP4B-IP-308RE

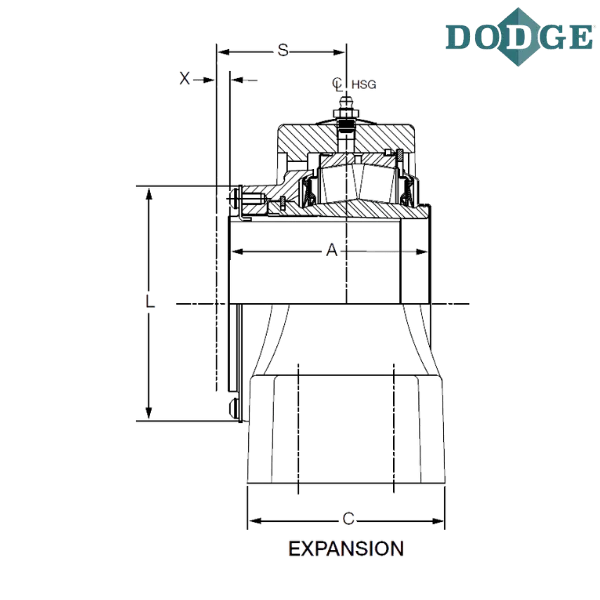

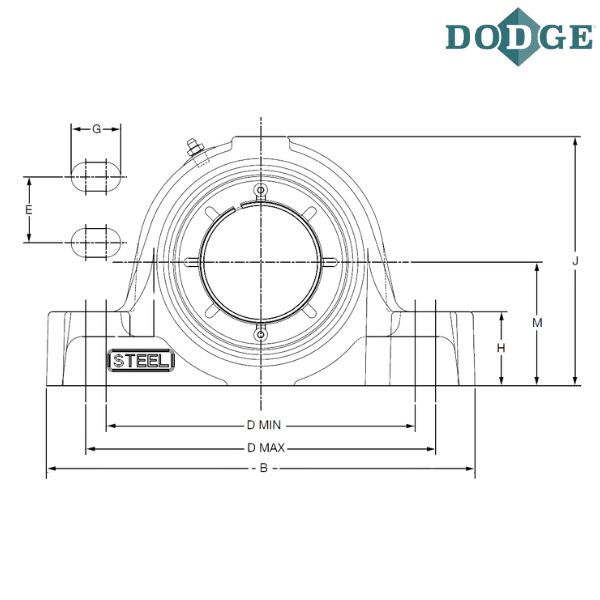

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 12.3
Width (C) inch - 3.75
Bolt to Bolt Minimum Distance (D min) inch - 8.88
Bolt to Bolt Maximum Distance (D max) inch - 10.88
E (inch) - 2
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.88
H (inch) - 2.25
Overall Height (J) inch - 7.56
L (inch) - 5
Base to Center Height (M) inch - 3.75
S (inch) - 2.63
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
