Brand - DODGE
Item Number - 071684 DODGE - SP2B-IP-110RE

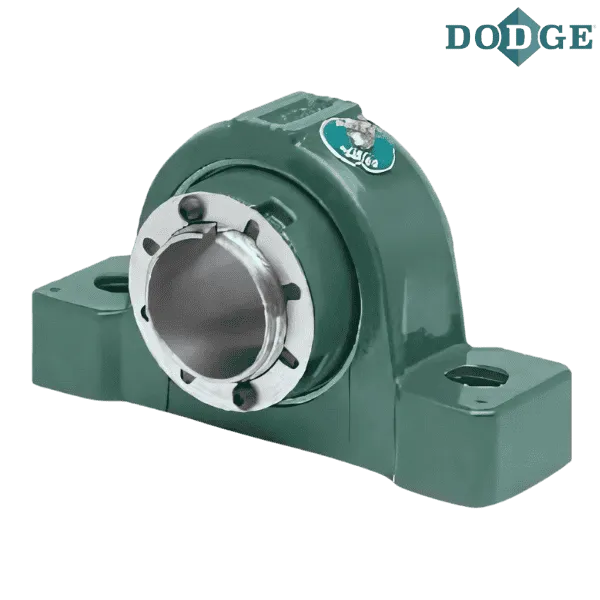

Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.625
Description - SP2B-IP-110RE
Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 7.13
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 5.25
Bolt to Bolt Maximum Distance (D max) inch - 5.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.25
Overall Height (J) inch - 4.27
L (inch) - 3
Base to Center Height (M) inch - 2.125
S (inch) - 1.89
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are representation purposes only
