Brand - DODGE
Item Number - 071658 DODGE - SP2B-IP-112R

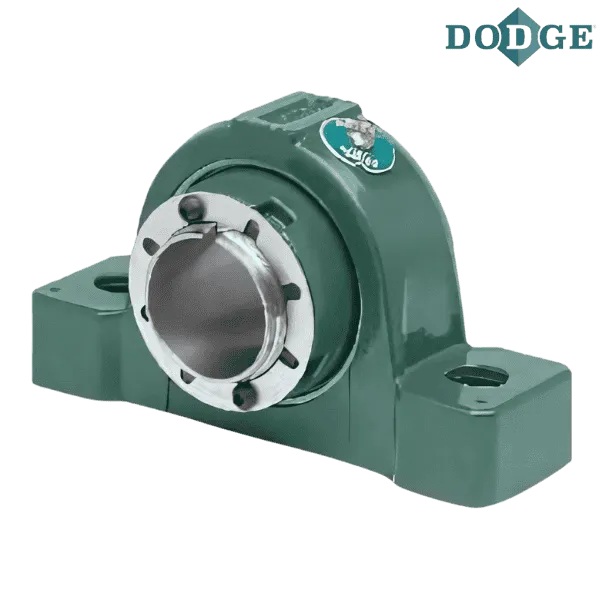

Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.75
Description - SP2B-IP-112R
Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 7.13
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 5.25
Bolt to Bolt Maximum Distance (D max) inch - 5.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.25
Overall Height (J) inch - 4.27
L (inch) - 3
Base to Center Height (M) inch - 2.125
R (inch) - 0.92
S (inch) - 1.89
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
