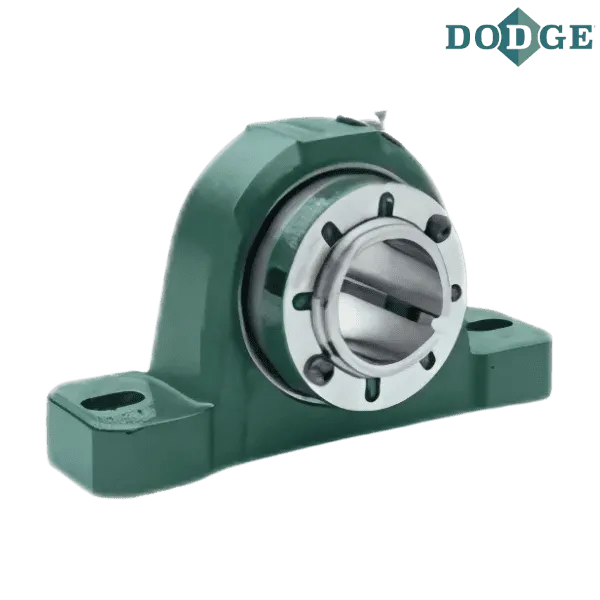

Brand - DODGE
Item Number - 071056 DODGE - P2B512-ISN-055MLS
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (mm) - 55
Description - P2B512-ISN-055MLS

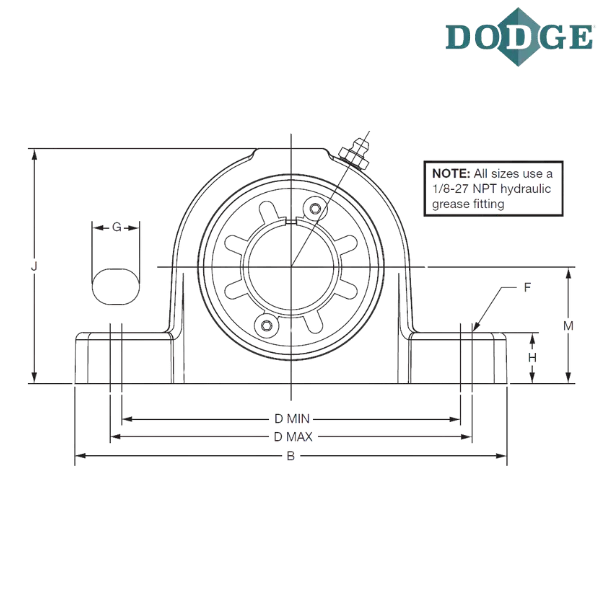

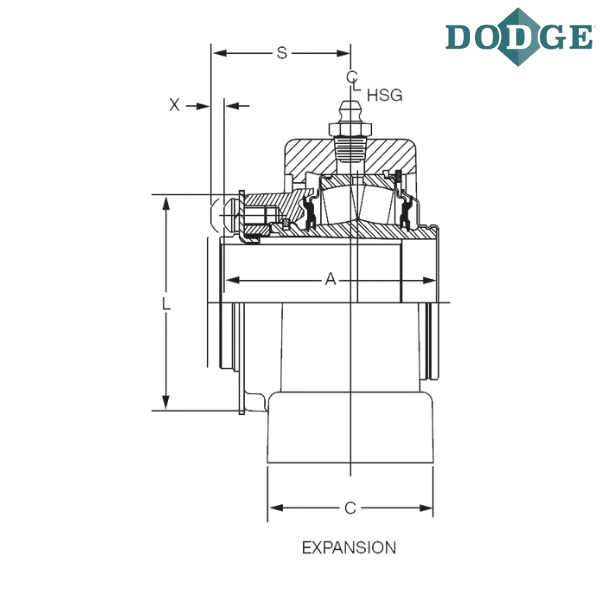

Length Through Bore (A) mm - 77
Overall Length (B) mm - 253.9
Width (C) mm - 69.9
Bolt to Bolt Minimum Distance (D min) mm - 190
Bolt to Bolt Maximum Distance (D max) mm - 216
F-Bolt Diameter - M16
G (mm) - 31
H (mm) - 30
Overall Height (J) mm - 130.3
L (mm) - 87.1
Base to Center Height (M) mm - 70
S (mm) - 54.2
T (mm) - 7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
S - Labyrinth seal

** Images are representation purposes only
