Brand - DODGE
Item Number - 070407 DODGE - P4B-S2-307L

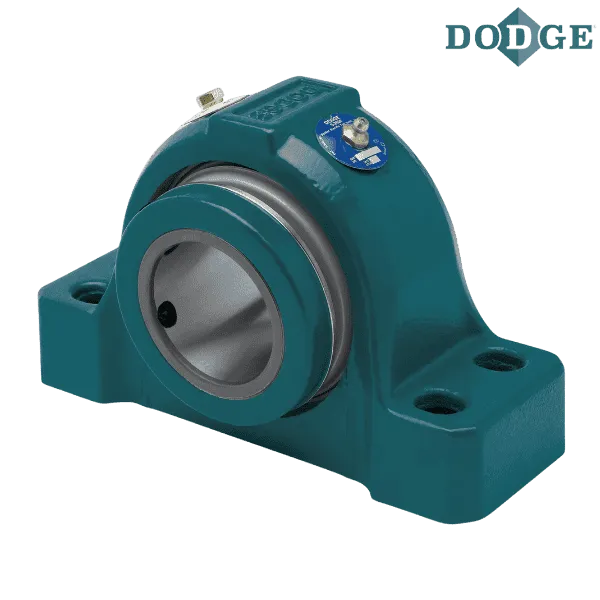

Category - 4-Bolt Base S-2000 Pillow Block in Labyrinth Seal (Non-Expansion)
Bearing Series - 22218
Shaft Size (inch) - 3.4375
Part Name - P4B-S2-307L
Length Through Bore (A) inch - 4.02
Overall Length (B) inch - 13
Width (C) inch - 4.13
Bolt to Bolt Minimum Distance (D min) inch - 9.38
Bolt to Bolt Maximum Distance (D max) inch - 10.63
E (inch) - 2
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 2.25
Overall Height (J) inch - 7.56
L (inch) - 5.5
Base to Center Height (M) inch - 3.75
R (inch) - 1.44
S (inch) - 2.58
Y (inch) - 0.025
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S2000
L - Labyrinth Metallic Seal

** Images are for representation purposes only
