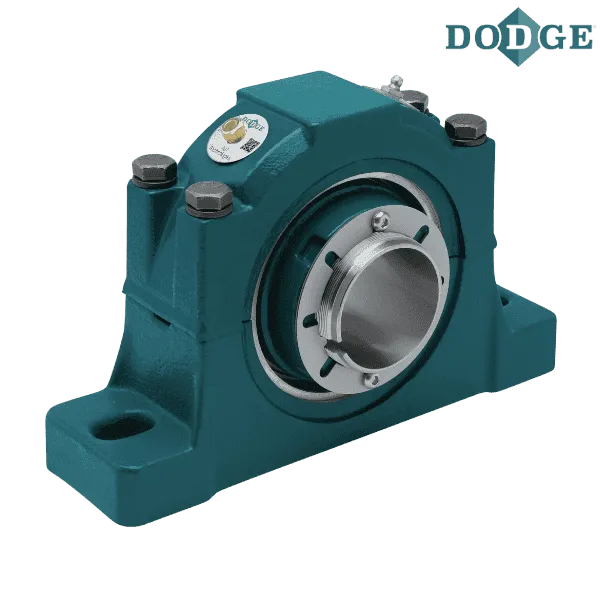

Brand - DODGE
Item Number - 070092 DODGE - P4B526-ISAF-407LE
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22222
Shaft Size (inch) - 4.4375
Part Name - P4B526-ISAF-407LE
SAF Series - 526
Length Through Bore (A) inch - 5.23
Overall Length (B) inch - 18.38
Width (C) inch - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 14.5
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.75
H (inch) - 2.06
Overall Height (J) inch - 11.66
L (inch) - 6.44
Base to Center Height (M) inch - 6
P (inch) - 12.47
S (inch) - 3.09
Expansion (X) inch - 0.375
Y (inch) - 0.04
Z (inch) - 5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
L - Labyrinth Metallic Seal
E - Expansion

** Images are representation purposes only
