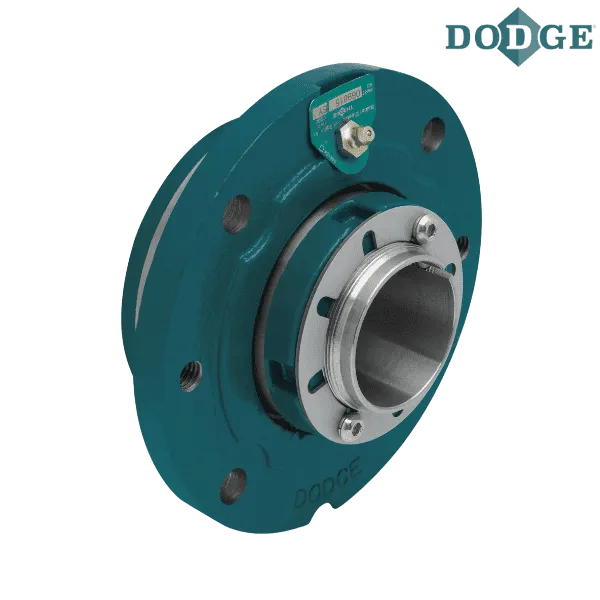

Brand - DODGE
Item Number - 069931 DODGE - FC-IP-415LE
Category - IMPERIAL - IP Piloted Flange (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 4.937
Part Name - FC-IP-415LE

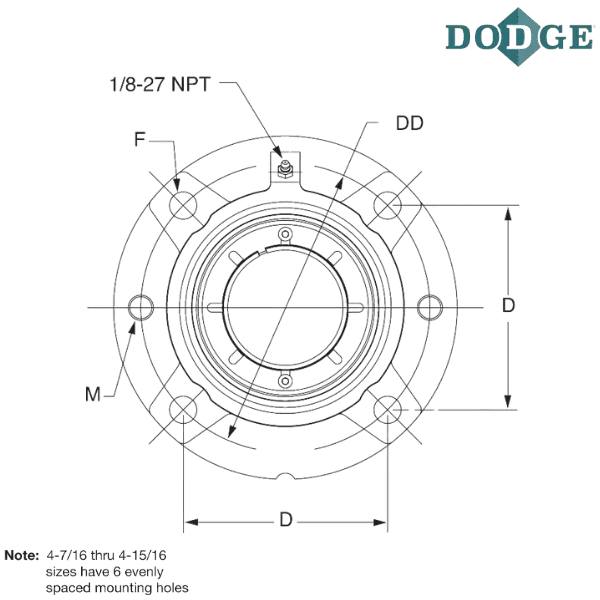

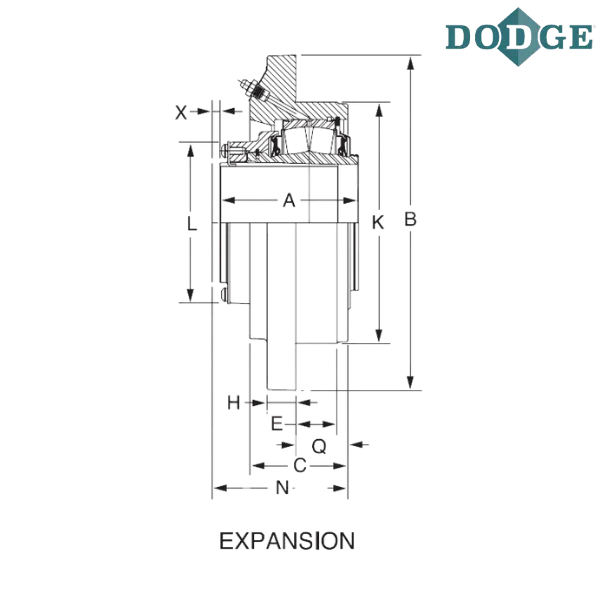

Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 14.75
C (inch) - 4.38
Bolt to Bolt Distance (D) inch - 6.38
Bolt Circle (DD) inch - 12.75
E (inch) - 1.7
F-Bolt Diameter (inch) - 0.875**
H (inch) - 1.25
Pilot Diameter (K*) inch - 11
L (inch) - 7.63
M (inch) - 3/4-10
N (inch) - 6.28
Pilot Depth (Q) inch - 2.42
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

* 0.000”, -0.002”
** 6 equally spaced mounting holes

*** Images are representation purposes only
