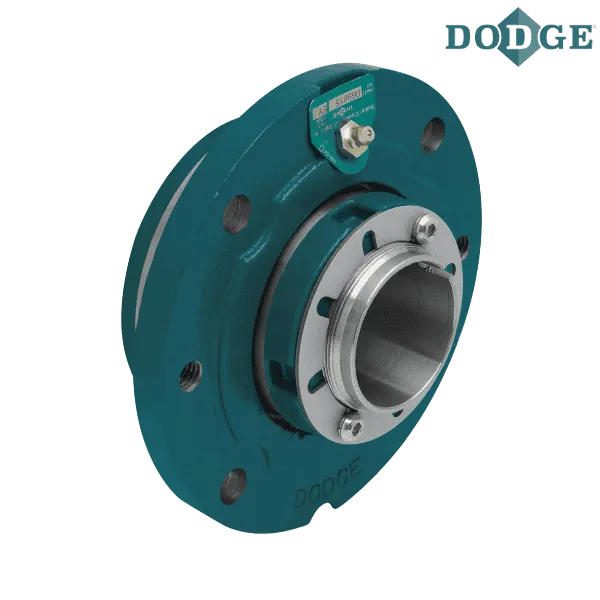

Brand - DODGE
Item Number - 069865 DODGE - FC-IP-407RE
Category - IMPERIAL - IP Piloted Flange (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22222
Shaft Size (inch) - 4.4375
Part Name - FC-IP-407RE

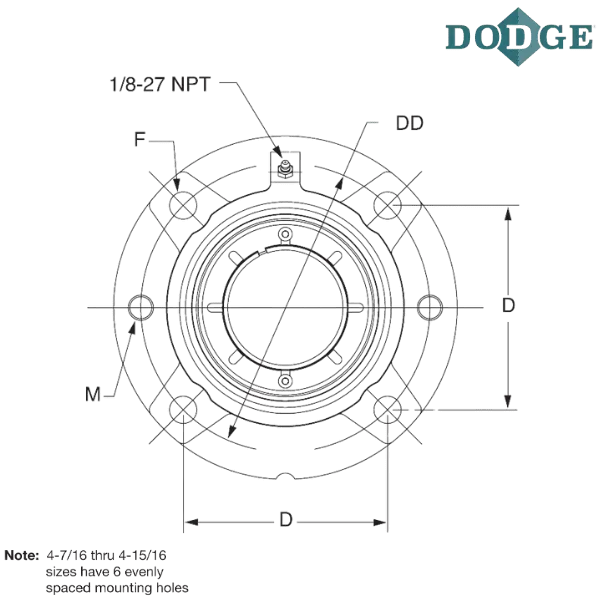

Length Through Bore (A) inch - 5.23
Overall Length (B) inch - 13.5
C (inch) - 4
Bolt to Bolt Distance (D) inch - 5.88
Bolt Circle (DD) inch - 11.75
E (inch) - 1.45
F-Bolt Diameter (inch) - 0.75**
H (inch) - 1
Pilot Diameter (K*) inch - 10.25
L (inch) - 6.44
M (inch) - 3/4-10
N (inch) - 5.55
Pilot Depth (Q) inch - 1.98
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* 0.000”, -0.002”
** 6 equally spaced mounting holes

*** Images are representation purposes only
