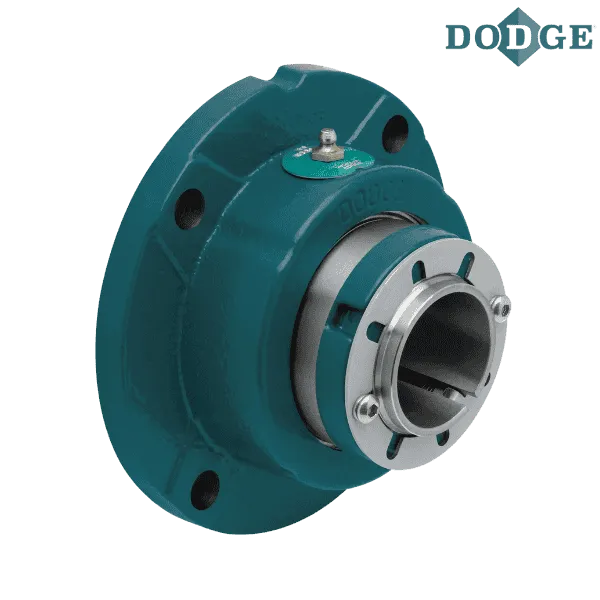

Brand - DODGE
Item Number - 069640 DODGE - F4R-IP-115RE
Category - IMPERIAL - IP Flange - Round with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.9375
Part Name - F4R-IP-115RE
Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 6.69
Thickness (C) inch - 3.16
Bolt Center to Center Length (D) inch - 4.06
DD (inch) - 5.75
E (inch) - 1.92
F-Bolt Diameter (inch) - 0.5**
H (inch) - 0.56
J (inch) - 4.5
L (inch) - 3.28
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

*** Images are representation purposes only
