Brand - DODGE
Item Number - 069556 DODGE - P4B-IP-206L
Category - IMPERIAL - IP Pillow Block with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.375
Part Name - P4B-IP-206L

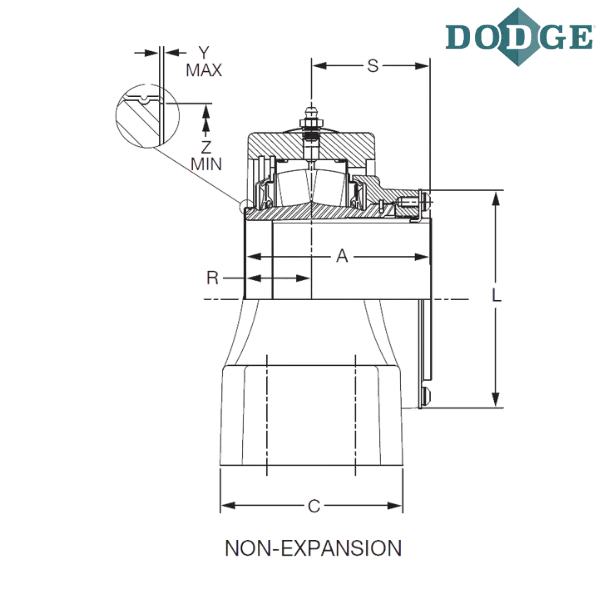

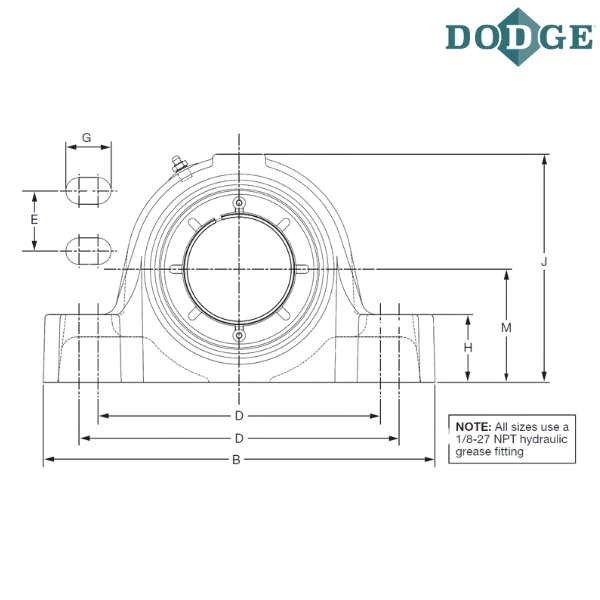

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 9.25
Width (C) inch - 3.28
Bolt to Bolt Minimum Distance (D min) inch - 6.94
Bolt to Bolt Maximum Distance (D max) inch - 7.31
E (inch) - 1.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.81
H (inch) - 1.63
Overall Height (J) inch - 5.59
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
R (inch) - 1.08
S (inch) - 2.34
Y (inch) - 0.03
Z (inch) - 2.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal

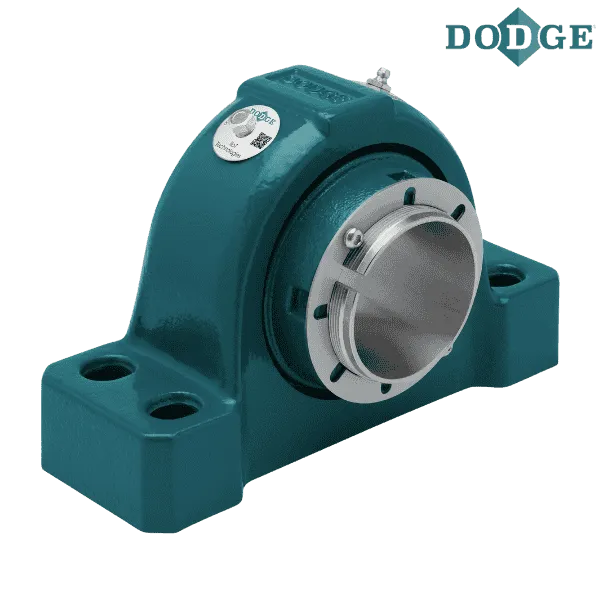

** Images are representation purposes only
