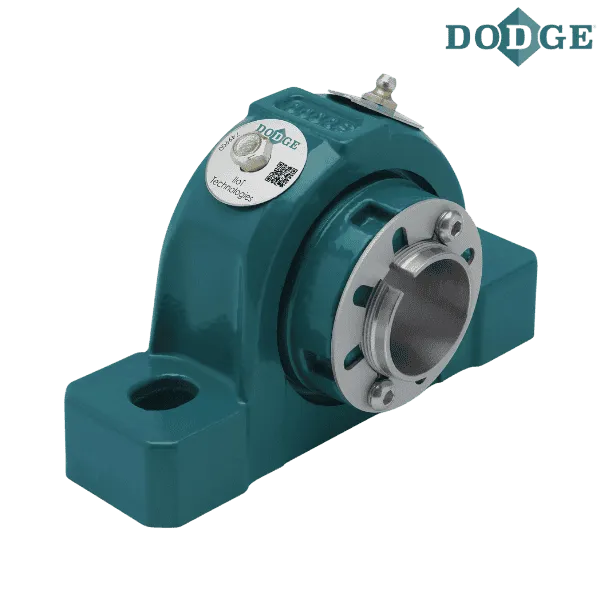

Brand - DODGE
Item Number - 069420 DODGE - P2B-IP-300R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 3
Part Name - P2B-IP-300R
Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 10.44
Width (C) inch - 3.08
Bolt to Bolt Minimum Distance (D min) inch - 7.94
Bolt to Bolt Maximum Distance (D max) inch - 8.31
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.06
H (inch) - 1.88
Overall Height (J) inch - 6.38
L (inch) - 4.28
M (inch) - 3.25
R (inch) - 1.23
S (inch) - 2.27
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
