Brand - DODGE
Item Number - 069407 DODGE - P2B-IP-111R

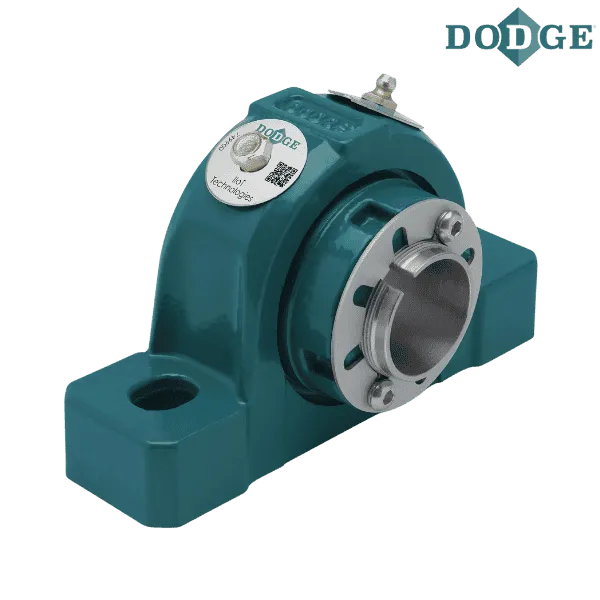

Category - IMPERIAL - IP Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.6875
Part Name - P2B-IP-111R
Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 7.38
Width (C) inch - 2.06
Bolt to Bolt Minimum Distance (D min) inch - 5.31
Bolt to Bolt Maximum Distance (D max) inch - 5.7
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.81
H (inch) - 1.25
Overall Height (J) inch - 4.27
L (inch) - 3
Base to Center Height (M) inch - 2.13
R (inch) - 0.81
S (inch) - 2
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are representation purposes only
