Brand - DODGE
Item Number - 066381 DODGE - P4B-SD-515
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 5.9375
Part Name - P4B-SD-515
Approximate Weight (lbs) - 585
Length Through Bore (A) inch - 12
Overall Length (B*) inch - 26.75
C* (inch) - 9.25
Bolt to Bolt Minimum Distance (D min) inch - 21.38
Bolt to Bolt Maximum Distance (D max) inch - 23.63
Bolt Width (E) inch - 5
F-Bolt Diameter (inch) - 1.125
G* (inch) - 2.25
H* (inch) - 5
Overall Height (J) inch - 19
L (inch) - 9.5
Base to Center Height (M) inch - 9
P* (inch) - 17.38
R (inch) - 6
S (inch) - 6
Exp** (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only

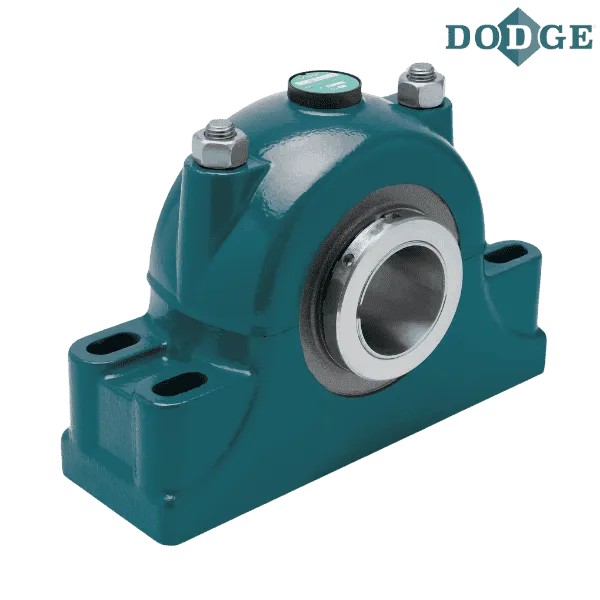

*** Images are for representation purposes only
