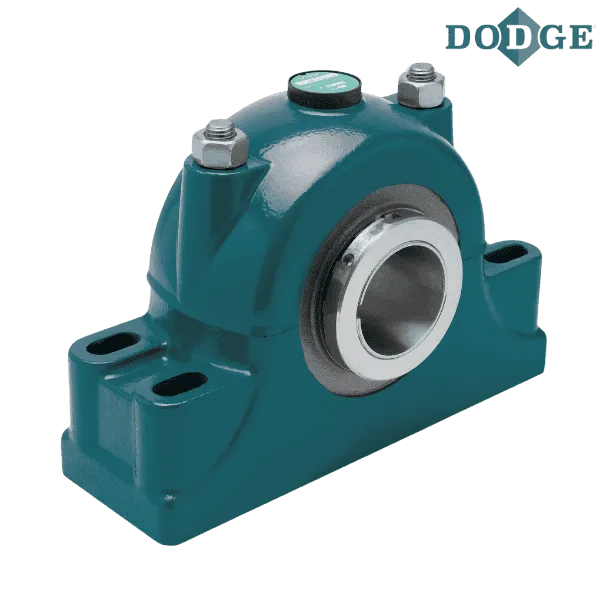

Brand - DODGE
Item Number - 066268 DODGE - P4B-SD-215E
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.9375
Part Name - P4B-SD-215E
Approximate Weight (lbs) - 80
Length Through Bore (A) inch - 5.75
Overall Length (B*) inch - 14.25
C* (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 10.88
Bolt to Bolt Maximum Distance (D max) inch - 12.63
Bolt Width (E) inch - 2.75
F-Bolt Diameter (inch) - 0.625
G* (inch) - 1.5
H* (inch) - 3.75
Overall Height (J) inch - 9.88
L (inch) - 4.44
Base to Center Height (M) inch - 4.75
P* (inch) - 8.69
R (inch) - 2.63
S (inch) - 3.13
Exp** (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty
E - Expansion Type Bearing

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only

*** Images are for representation purposes only
