Brand - DODGE
Item Number - 048034 DODGE - F4B-UN2-107

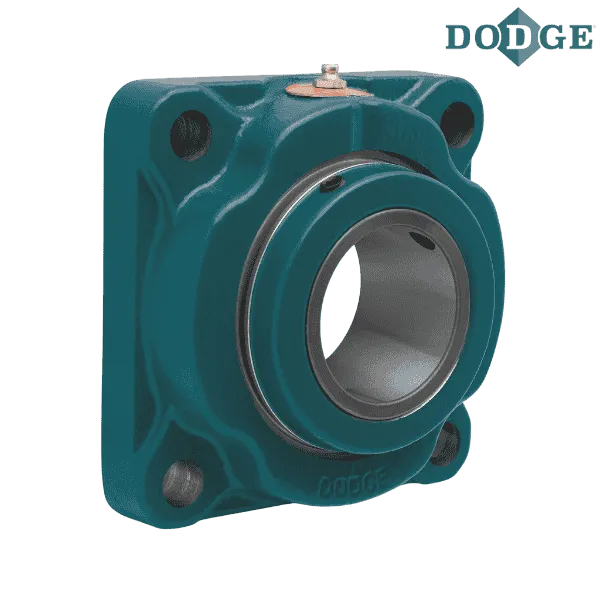

Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22208
Shaft Size (inch) - 1.4375
Part Name - F4B-UN2-107
Part Number (Expansion) - 048051
Part Name (Expansion) - F4B-UN2-107E
Approximate Weight (lbs) - 5.2
Length Through Bore (A) inch - 1.69
Overall Length (B) inch - 4.75
Thickness (C) inch - 1.91
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.75
J (inch) - 0.56
K (inch) - 5
L (inch) - 2.75
Total Expansion (E) inch - 0.15625
N (inch) - 2.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
