Brand - DODGE
Item Number - 048014 DODGE - P2B-UN2-308

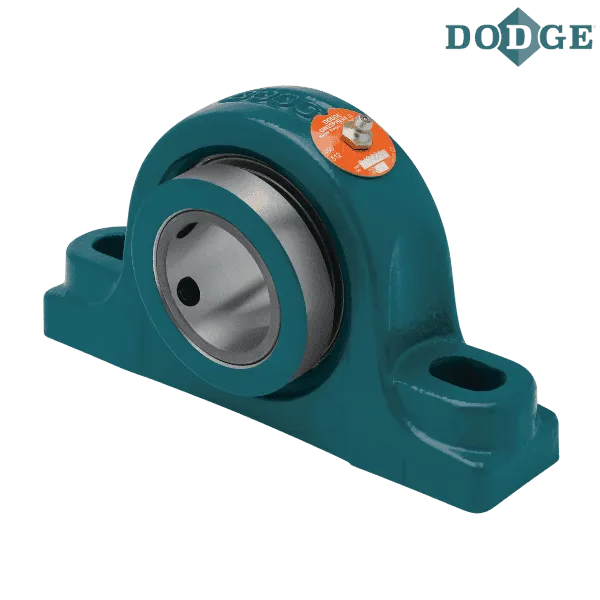

Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22218
Shaft Size (inch) - 3.5
Part Name - P2B-UN2-308
Part Number (Expansion) - 048031
Part Name (Expansion) - P2B-UN2-308E
Approximate Weight (lbs) - 27
Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 13
Width (C) inch - 2.81
Bolt to Bolt Minimum Distance (D min) inch - 9.25
Bolt to Bolt Maximum Distance (D max) inch - 10.75

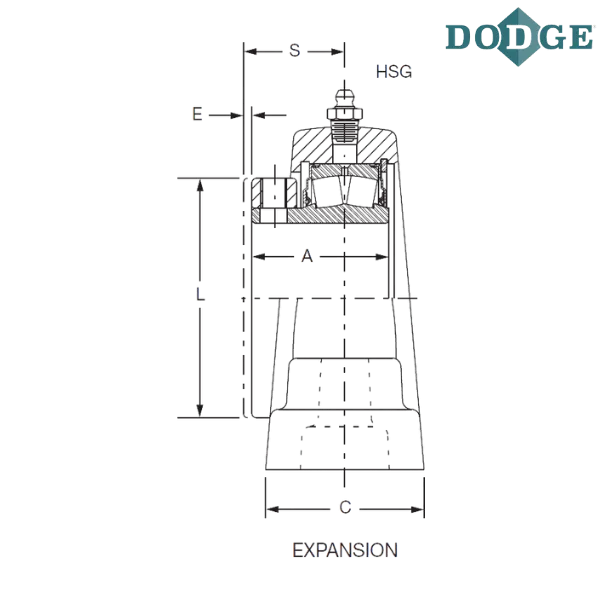

Total Expansion (E) inch - 0.1875
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.69
H (inch) - 2.25
Overall Height (J) inch - 7.5
L (inch) - 5.5
Base to Center Height (M) inch - 3.75
R (inch) - 0.94
S (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
