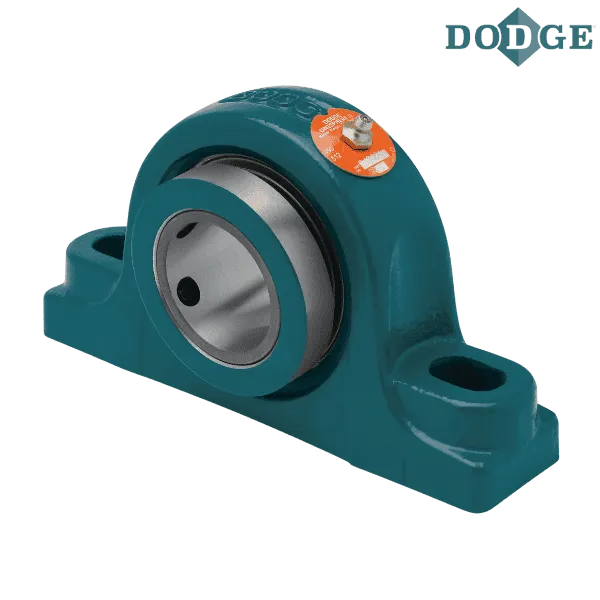

Brand - DODGE
Item Number - 048007 DODGE - P2B-UN2-207

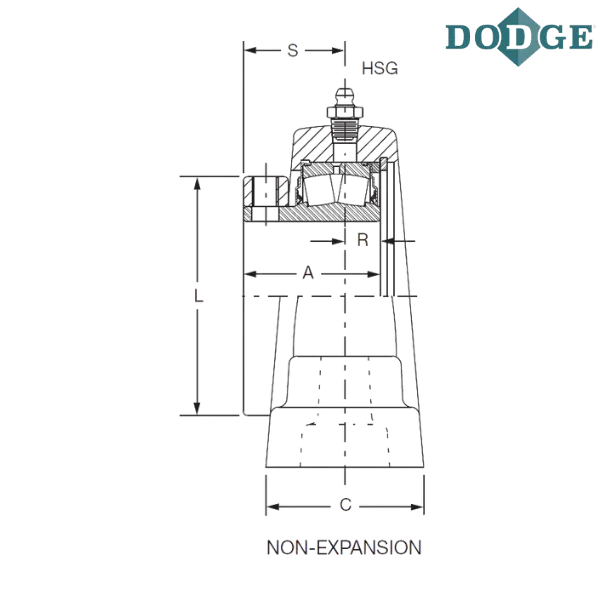

Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22213
Shaft Size (inch) - 2.4375
Part Name - P2B-UN2-207

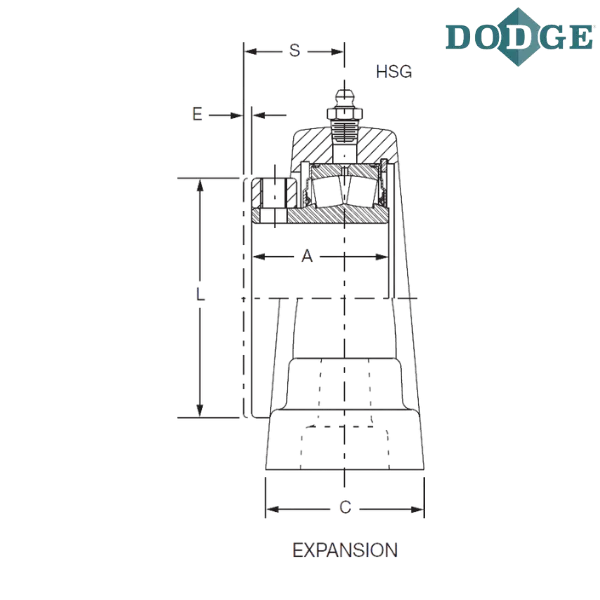

Part Number (Expansion) - 048024
Part Name (Expansion) - P2B-UN2-207E
Approximate Weight (lbs) - 13.6

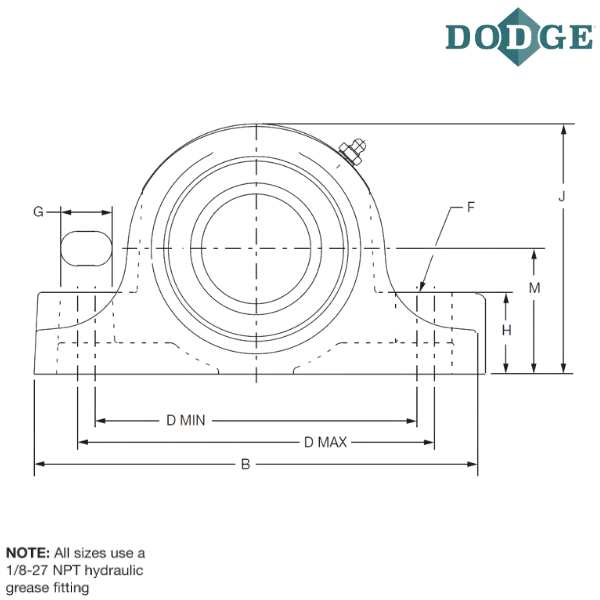

Length Through Bore (A) inch - 2.2
Overall Length (B) inch - 9.25
Width (C) inch - 2.56
Bolt to Bolt Minimum Distance (D min) inch - 6.81
Bolt to Bolt Maximum Distance (D max) inch - 7.44
Total Expansion (E) inch - 0.1875
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.75
Overall Height (J) inch - 5.69
L (inch) - 4.06
Base to Center Height (M) inch - 2.75
R (inch) - 0.66
S (inch) - 1.55
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
