Brand - DODGE
Item Number - 048003 DODGE - P2B-UN2-112

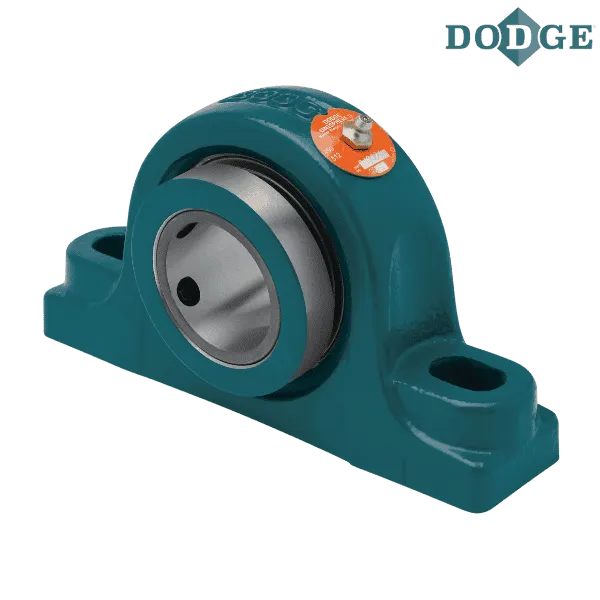

Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22209
Shaft Size (inch) - 1.75
Part Name - P2B-UN2-112
Part Number (Expansion) - 048020
Part Name (Expansion) - P2B-UN2-112E
Approximate Weight (lbs) - 6.8
Length Through Bore (A) inch - 1.91
Overall Length (B) inch - 7.38
Width (C) inch - 2.06
Bolt to Bolt Minimum Distance (D min) inch - 5.19
Bolt to Bolt Maximum Distance (D max) inch - 5.88
Total Expansion (E) inch - 0.15625
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 1.31
Overall Height (J) inch - 4.25
L (inch) - 3
Base to Center Height (M) inch - 2.13
R (inch) - 0.47
S (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
